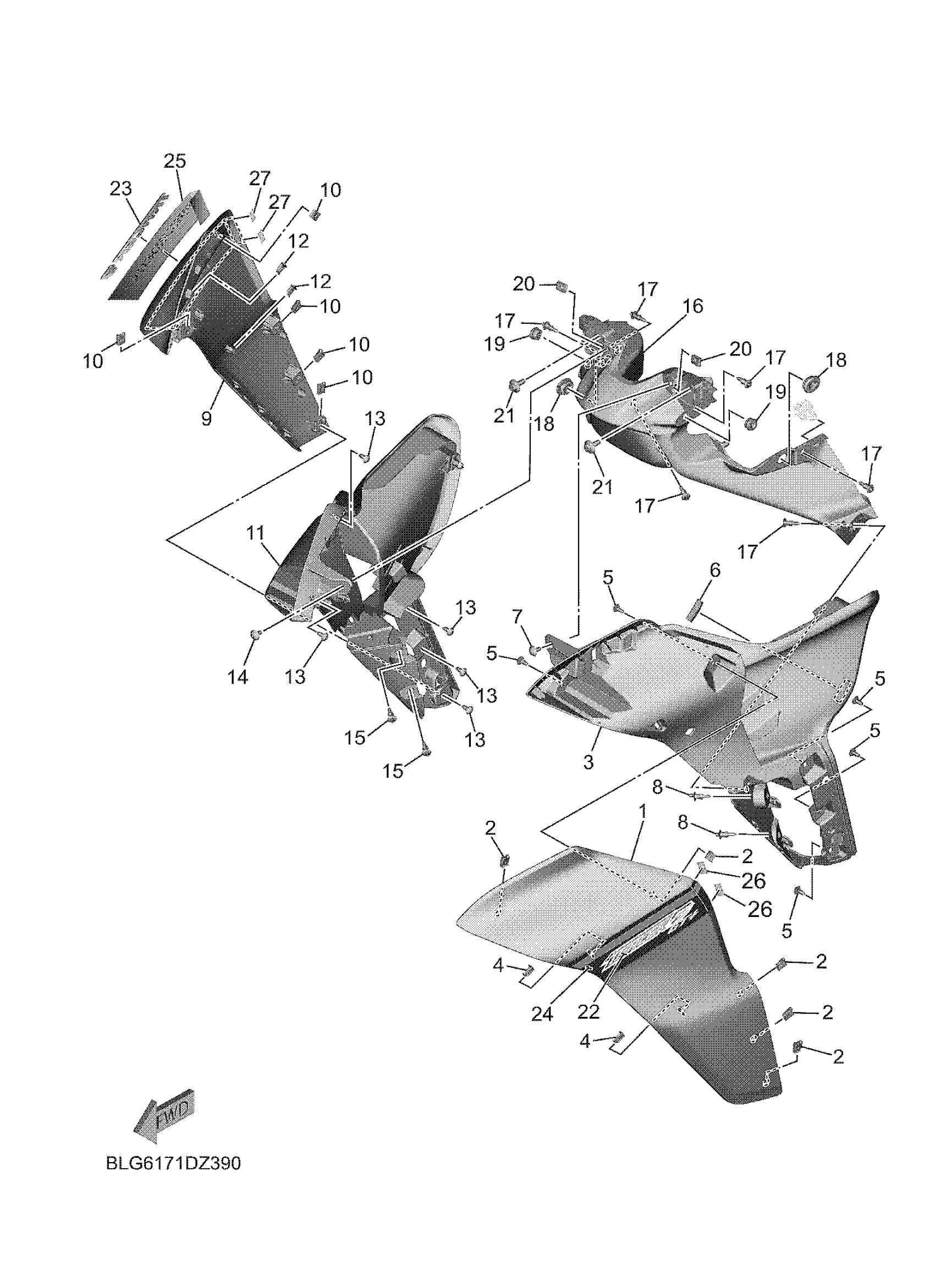

Yamaha MTT9GPRGY (TRACER 9 GT) BLG4 2024 COWLING Diagram

#

Description
Price

1

PANEL 1

B5U-2835U-00-3E

$115.99

2

NUT, SPRING(1YT)

90183-05042-00

$5.60

3

PANEL, INNER 1

BLG-2836K-00-00

Unavailable

4

CLAMP

90464-04005-00

$4.41

5

SCREW, TRUSS TAP.

97707-50012-00

$4.63

6

DAMPER, SEAT

3KJ-24723-00-00

$6.99

7

BOLT,HEX. SOCKET BUTTON

90111-05049-00

$2.17

8

RIVET

90269-06001-00

$5.60

9

PANEL 2

B5U-2835V-00-3E

Unavailable

10

NUT, SPRING(1YT)

90183-05042-00

$5.60

11

PANEL, INNER 2

B5U-2836L-00-00

$47.99

12

CLAMP

90464-04005-00

$4.41

13

SCREW, TRUSS TAP.

97707-50012-00

$4.63

14

BOLT,HEX. SOCKET BUTTON

90111-05049-00

$2.17

15

RIVET

90269-06001-00

$5.60

16

BODY, FRONT UNDER

BLG-2835J-00-00

Unavailable

17

RIVET

90269-06001-00

$5.60

18

GROMMET(4BH)

90480-01559-00

Unavailable

19

GROMMET

90480-10003-00

Unavailable

20

NUT, SPRING

90183-050A6-00

Unavailable

21

BOLT

90109-06043-00

Unavailable

22

EMBLEM 3D

BLG-2839B-11-00

Unavailable

23

EMBLEM 3D

BLG-2839B-11-00

Unavailable

24

GRAPHIC 1

BLG-28391-00-00

Unavailable

25

GRAPHIC 2

BLG-28392-00-00

Unavailable

26

PROTECTOR

B3L-24595-00-00

Unavailable

27

PROTECTOR

B3L-24595-00-00

Unavailable
