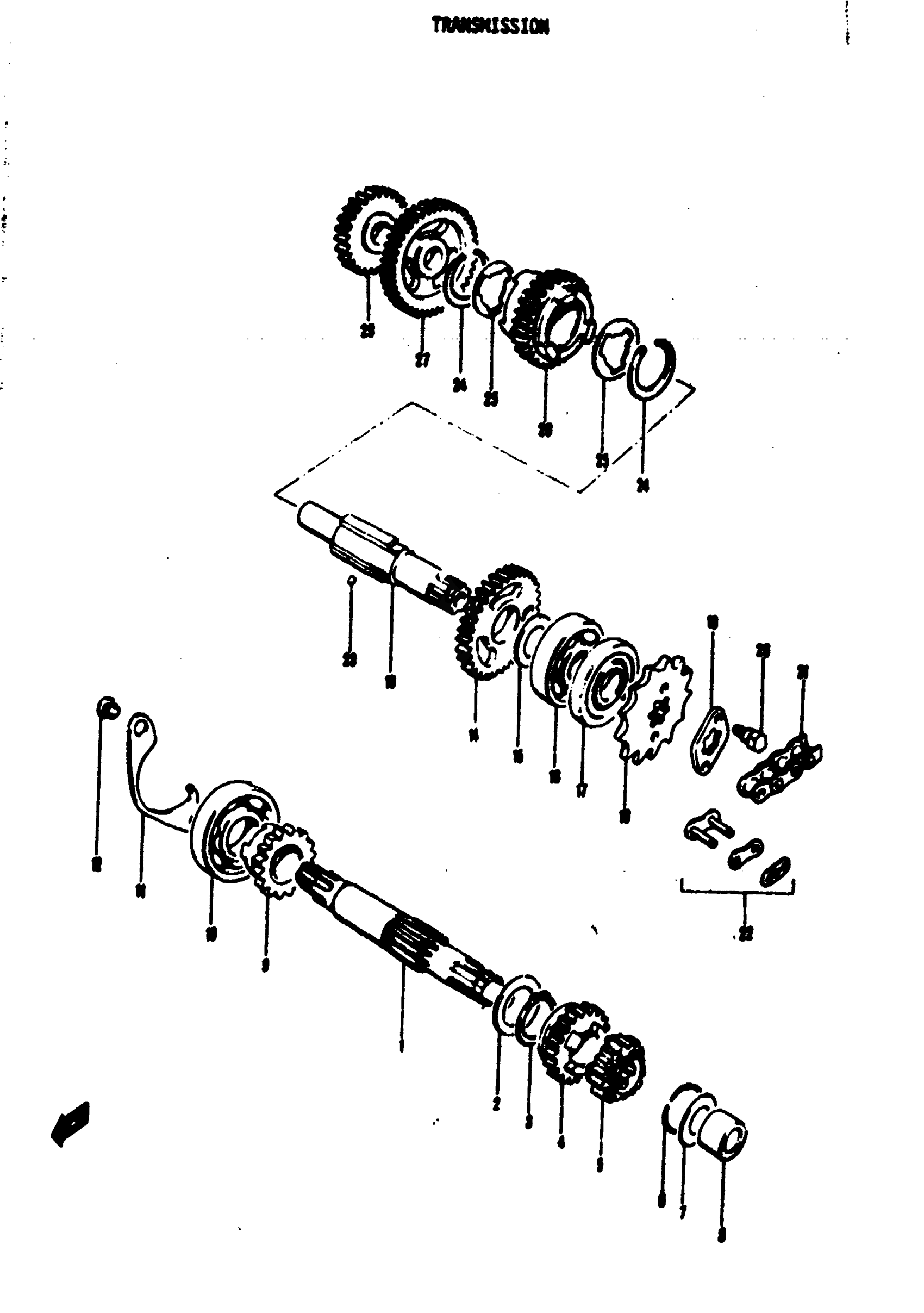

Suzuki MT50 (1973) TRANSMISSION Diagram

#

Description
Price

1

COUNTER SHAFT | NT:11

24121-19002

Unavailable

2

THRUST WASHER | 21x30x1

09160-21005

$2.06

3

CIRCLIP This part replaces 08331-11219.

08331-31219

$2.43

4

GEAR, 3RD DRIVE | NT:20

24231-19001

Unavailable

5

GEAR, 2ND DRIVE | NT:16

24221-19003

Unavailable

6

CIRCLIP

09380-17005

Unavailable

7

THRUST WASHER

08211-12241

$2.06

8

BUSHING | 12x19x11

09300-12008

Unavailable

9

GEAR, KICK DRIVEN | NT:16

26280-19000

Unavailable

10

BEARING | 30x62x10

09262-30003

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 24741-05000.

24741-35000

Unavailable

12

SCREW This part replaces 02121-06108.

02122-0610A

$1.68

13

NO DESCRIPTION AVAILABLE This part replaces 24131-19001.

24131-19002

Unavailable

14

NO DESCRIPTION AVAILABLE | NT:32 This part replaces 24321-19002.

24321-19003

Unavailable

15

WASHER, 2ND DRIVE GEAR This part replaces 08211-17301.

09181-17223

$2.96

16

BEARING

08113-63030

$23.65

17

OIL SEAL | 17x40x7

09283-17006

Unavailable

18

SPROCKET, ENGINE | NT:13

27511-19000

$14.98

18

SPROCKET, ENGINE | NT:14, OPT

27511-19700

Unavailable

19

PLATE, ENGINE SPROCKET

27512-19000

Unavailable

20

BOLT

09111-06007

Unavailable

21

CHAIN ASSY, DRIVE (#420x82L) | #420x92L

27600-04011

Unavailable

22

JOINT (DID) This part replaces 27620-01011.

27620-01012

$6.87

23

STEEL BALL

06111-06004

Unavailable

24

CIRCLIP

09381-30001

Unavailable

25

WASHER

09167-26001

Unavailable

26

NO DESCRIPTION AVAILABLE | NT:29 This part replaces 24331-19001.

24331-19002

Unavailable

27

GEAR, 1ST DRIVEN | NT:46

24310-19002

Unavailable

28

GEAR, KICK IDLE | NT:26

26260-19001

Unavailable
