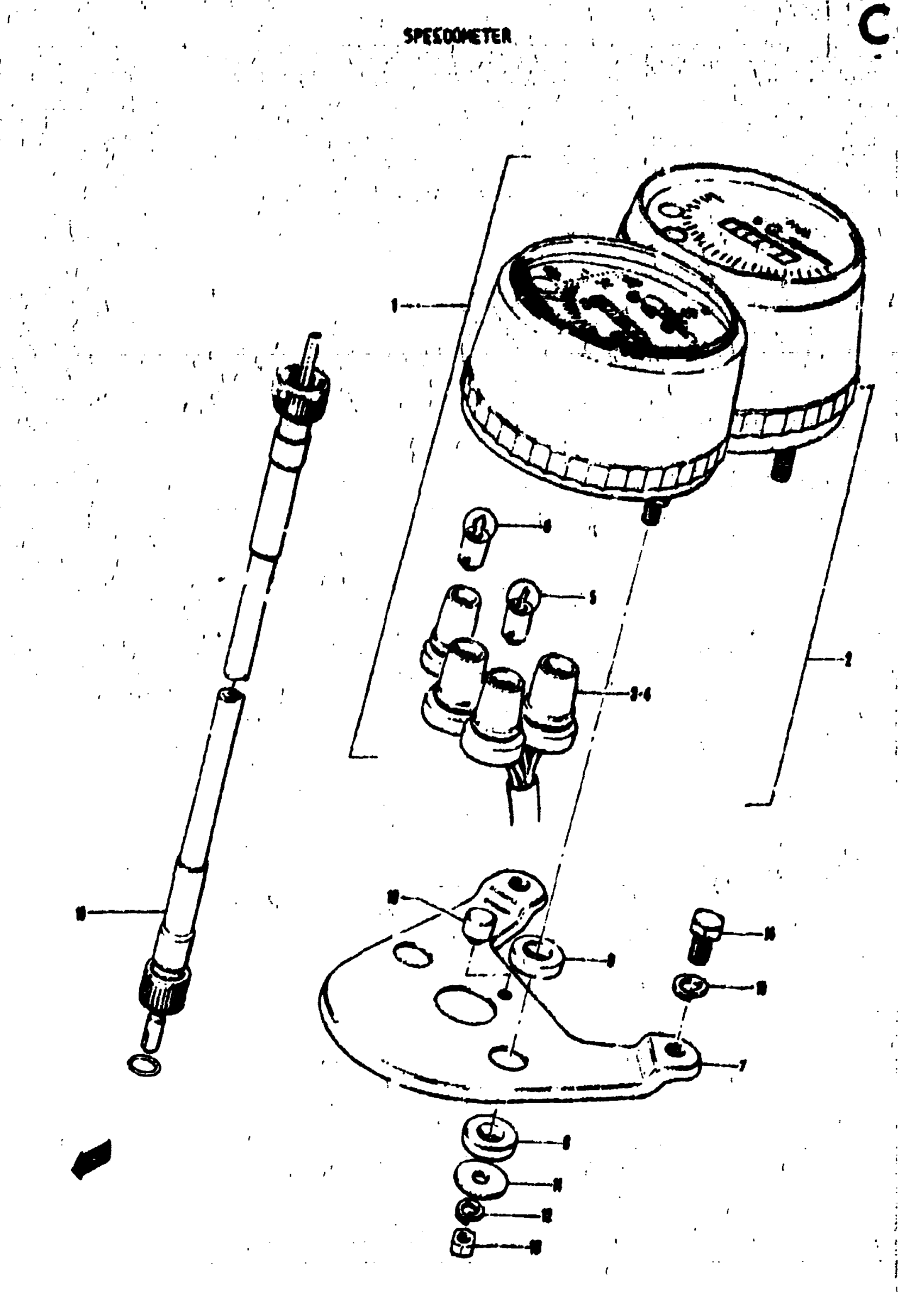

Suzuki MT50 (1973) SPEEDOMETER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MT50R This part replaces 34100-26601-999.

34100-26601

Unavailable

2

SPEEDOMETER ASSY | MT50J,MT50K; Includes Item(s) 3 - 4

34100-27690-999

Unavailable

3

SOCKET ASSY | MT50R

34170-26608

Unavailable

4

SOCKET ASSY | MT50J,MT50K

34170-27690

Unavailable

5

BULB | 6V, 3W

09471-06002

$2.25

6

BULB | 6V, 1.7W

09471-06001

$2.18

7

BRACKET, SPEEDOMETER

34950-27000

Unavailable

8

CUSHION, SPEEDOMETER A

34955-20000

Unavailable

9

CUSHION This part replaces 09320-08004.

09320-08010

$1.99

10

CUSHION, SPEEDOMETER C

34957-05100

Unavailable

11

WASHER

09160-05024

$1.78

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

NUT This part replaces 08311-11058.

08310-00057

$1.84

14

BOLT | MT50R This part replaces 01112-06128.

01500-06127

$1.97

15

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

16

CABLE ASSY, SPEEDOMETER

34910-27030

Unavailable
