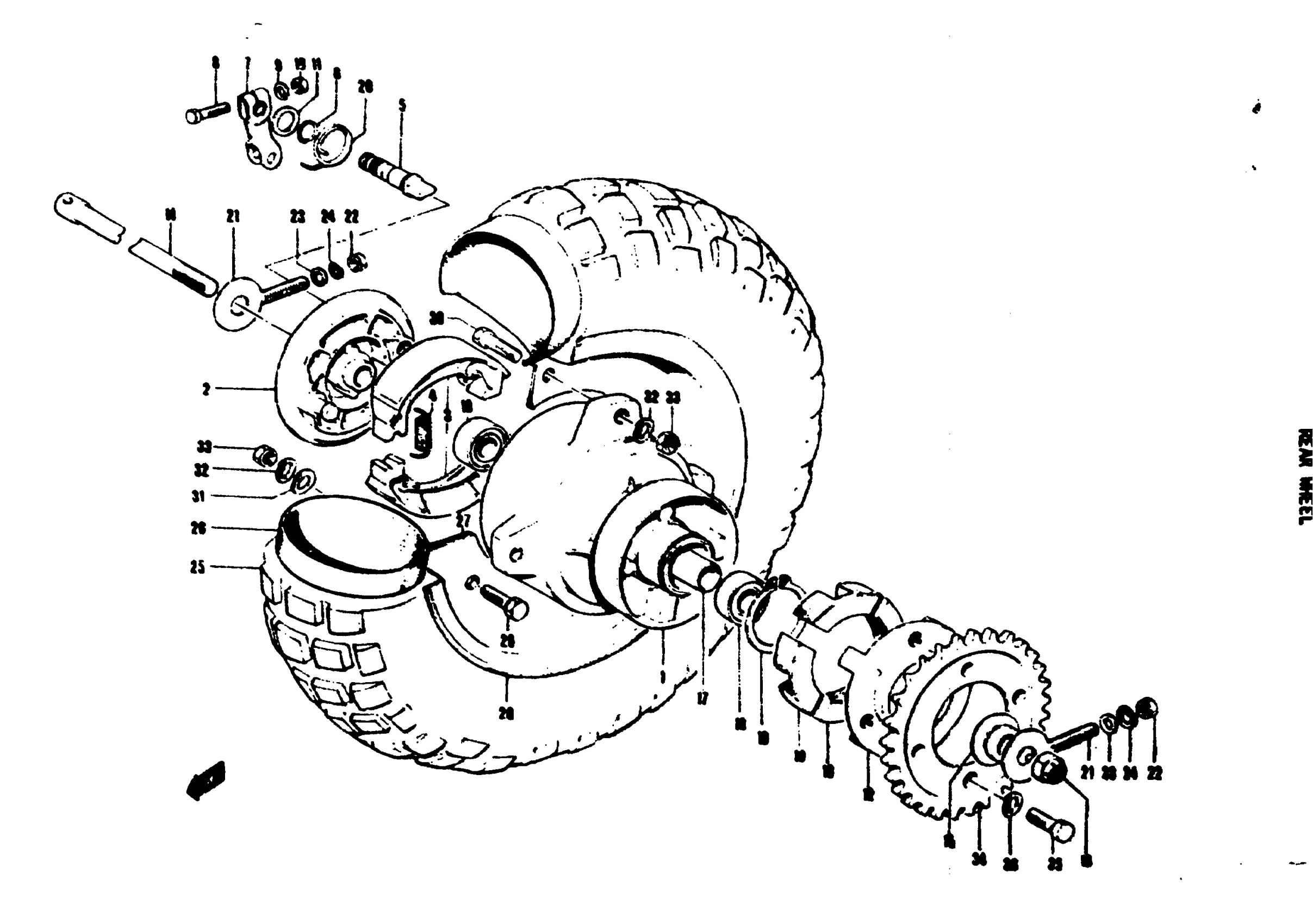

Suzuki MT50 (1973) REAR WHEEL Diagram

#

Description
Price

1

DRUM, REAR HUB | MT50R,MT50J

64110-27001

Unavailable

2

PANEL

54210-27000

Unavailable

3

SHOE/SPRING SET This part replaces 54410-01004.

54400-35860

$36.32

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE

54441-28000

Unavailable

6

DUST SEAL

09280-12001

$2.90

7

LEVER, BRAKE CAM | MT50K

64451-01002

Unavailable

7

LEVER, BRAKE CAM | MT50R,MT50J

64451-27000

Unavailable

8

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT This part replaces 08311-11068.

08310-00067

$2.13

11

WASHER

09160-12011

$1.54

12

DRUM, SPROCKET MOUNTING

64611-27000

Unavailable

13

CUSHION, REAR HUB

64650-27000

Unavailable

14

AXLE, REAR

64711-27000

Unavailable

15

SPACER, AXLE LH

64750-27000

Unavailable

16

NUT

09159-12102

$3.23

17

SPACER

09180-12039

Unavailable

18

BEARING This part replaces 08123-62010.

08133-62017

$18.47

19

NO DESCRIPTION AVAILABLE This part replaces 08331-11458.

08331-31456

Unavailable

20

SPRING | MT50R,MT50J

09448-27003

Unavailable

21

ADJUSTER, CHAIN

61411-01601

Unavailable

22

.NUT This part replaces 08311-11068.

08310-00067

$2.13

23

WASHER This part replaces 08322-21068.

08322-01067

$2.13

24

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

25

TIRE

55100-27011

Unavailable

26

NO DESCRIPTION AVAILABLE This part replaces 55200-27010.

55200-17200

Unavailable

27

WHEEL RIM, RH

55312-27000-046

Unavailable

28

WHEEL RIM, LH

55313-27000-046

Unavailable

29

PLUG, DRAIN This part replaces 01122-08168.

01500-0816B

$2.50

30

BOLT This part replaces 01122-08257.

01500-08257

$2.50

31

WASHER This part replaces 08322-11088.

08322-01087

$2.13

32

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

33

NUT This part replaces 08312-11088.

08310-00087

$2.13

34

SPROCKET, REAR | MT50R,MT50J; NT:28

64511-27000

Unavailable

34

SPROCKET, REAR | MT50R,MT50J; NT:29, OPT

64511-27700

Unavailable

34

SPROCKET, REAR | MT50R,MT50J; NT:30, OPT

64511-27710

Unavailable

34

SPROCKET, REAR | MT50R,MT50J; NT:31, OPT

64511-27720

Unavailable

34

SPROCKET, REAR | NT:32

64511-27750

Unavailable

35

BOLT This part replaces 01122-08128.

01500-08127

$2.62

36

LOCK WASHER

09169-08009

Unavailable
