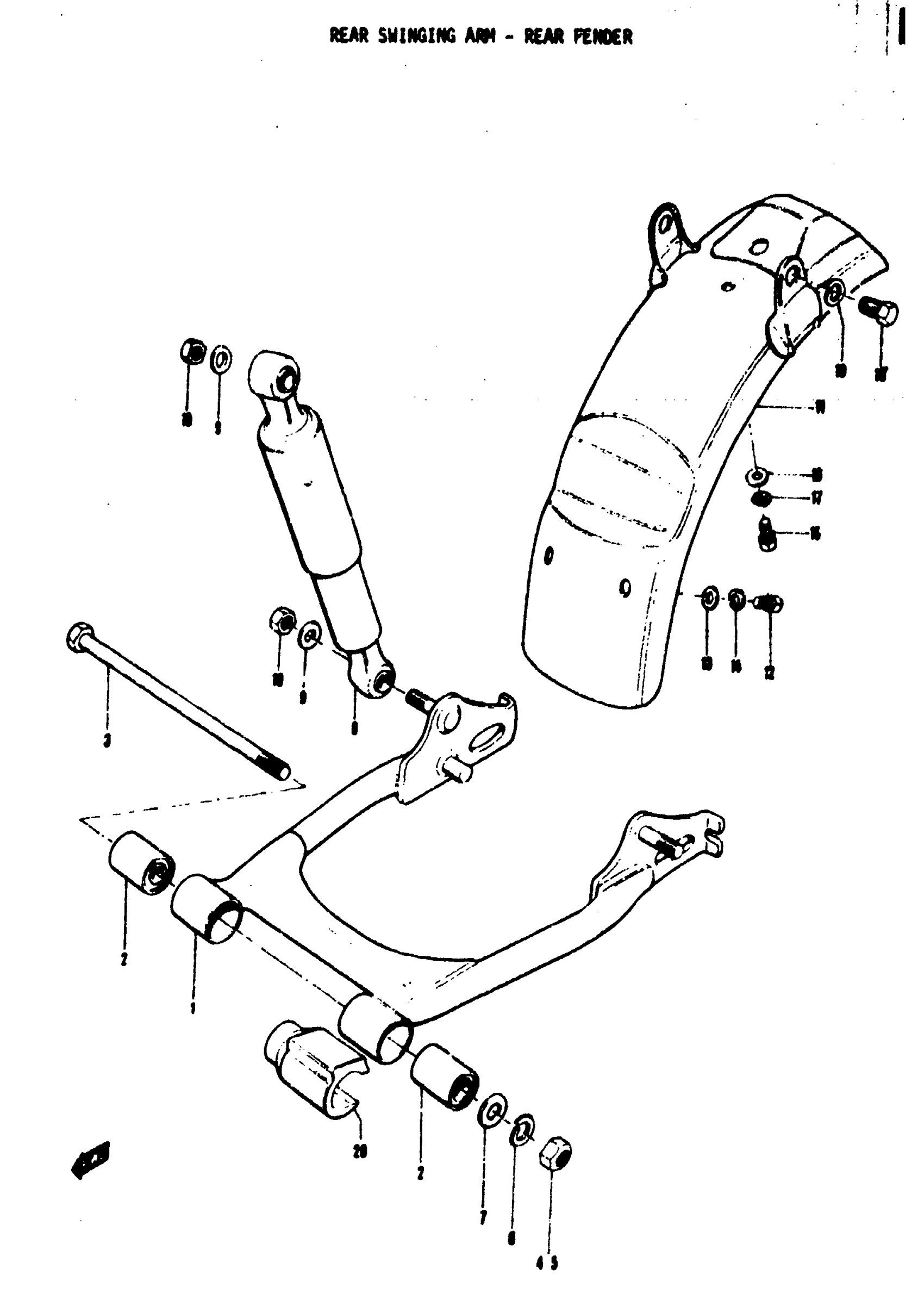

Suzuki MT50 (1973) REAR SWINGING ARM - REAR FENDER Diagram

#

Description
Price

1

SWINGING ARM SET, REAR | MT50R

61100-27801-184

Unavailable

1

SWINGING ARM SET, REAR | MT50J

61100-27801-137

Unavailable

1

SWINGING ARM SET, REAR | MT50K; Includes Item(s) 2

61100-27801-709

Unavailable

2

BUSHING

09319-10009

$7.62

3

SHAFT, SWINGING ARM

61211-25001

Unavailable

4

NUT | MT50R

09140-10001

Unavailable

5

NUT | MT50J,MT50K This part replaces 08311-11108.

08310-00107

$2.19

6

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

7

WASHER This part replaces 08322-21108.

08322-01107

$2.15

8

SHOCK ABSORBER ASSY, REAR | MT50R

62100-27000-184

Unavailable

8

SHOCK ABSORBER ASSY, REAR | MT50J

62100-27000-137

Unavailable

8

NO DESCRIPTION AVAILABLE | MT50K This part replaces 62100-27000-709.

62100-27000-05E

Unavailable

9

WASHER

09160-08031

Unavailable

10

NUT This part replaces 08313-11087.

08313-10087

$2.28

11

FENDER, REAR | MT50R

63110-27001-126

Unavailable

11

FENDER, REAR | MT50J

63110-27001-137

Unavailable

11

NO DESCRIPTION AVAILABLE | MT50K This part replaces 63110-27001-709.

63110-27001-05E

Unavailable

12

BOLT This part replaces 01112-06128.

01500-06127

$1.97

13

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

BOLT This part replaces 01112-06128.

01500-06127

$1.97

16

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

BOLT This part replaces 01122-10168.

01500-10167

$3.85

19

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

20

BUFFER CHAIN DE This part replaces 61273-27000.

61273-27001

Unavailable
