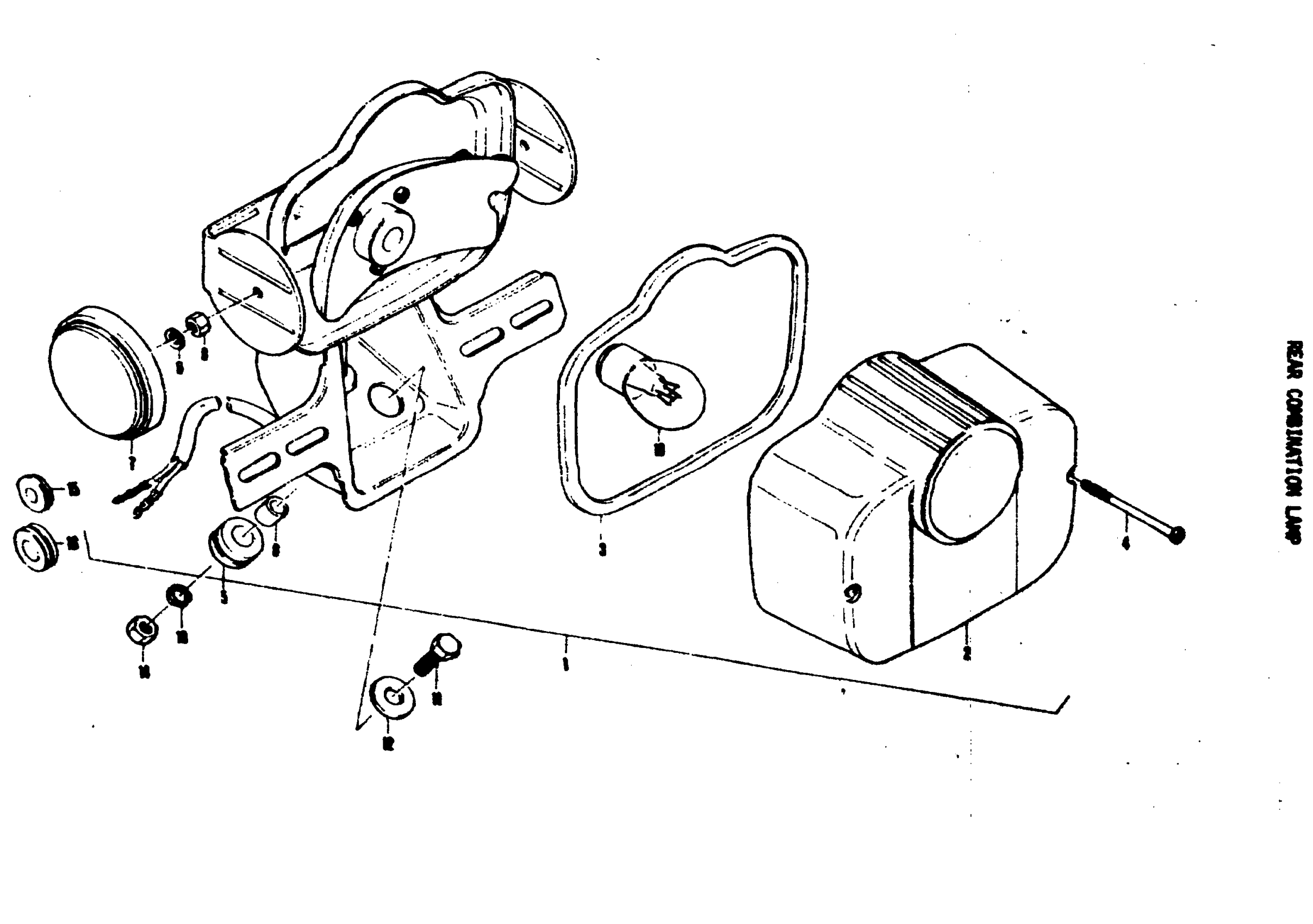

Suzuki MT50 (1973) REAR COMBINATION LAMP Diagram

#

Description
Price

1

REAR COMBINATION LAMP SET | Includes Item(s) 2 - 9

35001-27814-999

Unavailable

2

LENS RR COMB LA This part replaces 35712-27630.

35712-23011

$59.80

3

GASKET

35713-27630

$6.30

4

SCREW 4X55 This part replaces 02111-04558.

02112-04558

$1.65

5

CUSHION

35765-15010

Unavailable

6

SPACER This part replaces 35766-15010.

35766-37110

$5.28

7

REFLEX REFLECTOR

35970-31610

Unavailable

8

NUT This part replaces 08311-11058.

08310-00057

$1.84

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

BULB | 6V, 32/3CP

09471-06030

Unavailable

11

BOLT This part replaces 01112-06207.

01500-06207

$2.28

12

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

.NUT This part replaces 08311-11068.

08310-00067

$2.13

15

GROMMET

09308-05005

$3.00

16

GROMMET

09308-10004

Unavailable
