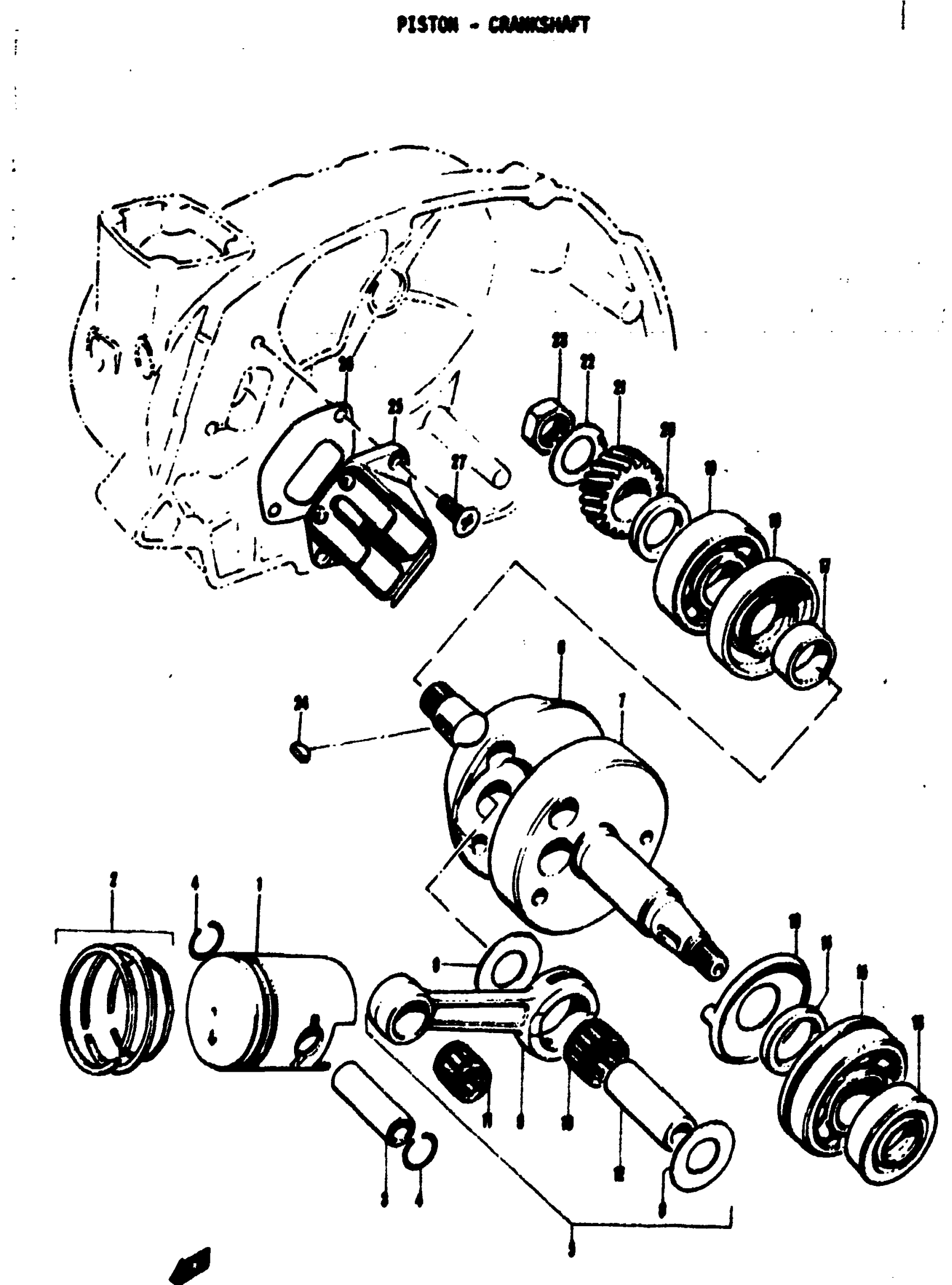

Suzuki MT50 (1973) PISTON - CRANKSHAFT Diagram

PISTON/RING SET This part replaces 12110-19600.

12100-92820

Unavailable

PISTON, SET | OS:0.5, OPT This part replaces 12110-19720.

12103-35810-050

Unavailable

PISTON SET | OS:1.0, OPT This part replaces 12110-19730.

12103-35810-100

Unavailable

RING SET, PISTON

12140-05823

Unavailable

NO DESCRIPTION AVAILABLE | OS:0.5, OPT This part replaces 12140-05829.

12140-05100-050

Unavailable

NO DESCRIPTION AVAILABLE | OS:1.0, OPT This part replaces 12140-05830.

12140-05100-100

Unavailable

PIN, PISTON | 8x12x34 This part replaces 12151-02000.

12151-04700

$7.22

SNAP RING

09381-12001

$1.49

CRANKSHAFT ASSY | Includes Item(s) 6 - 12

12000-19803

Unavailable

CRANKSHAFT, RH

12221-19001

Unavailable

CRANKSHAFT, LH

12261-19000

Unavailable

THRUST WASHER | 16x32x1

09160-16011

Unavailable

CONNECTING ROD This part replaces 12161-13100.

12161-04710

$82.35

BEARING, 16X22X11.8 | 16x22x12 This part replaces 09263-16002.

09263-16034

$19.20

BEARING (12X16X16) | 12x16x16 This part replaces 09263-12003.

09263-12023

$10.19

PIN, CRANK | OD:16, L:14

12211-19000

Unavailable

PLATE, OIL GUIDE

12511-06100

Unavailable

SPACER | 20x28x4.5

09180-20017

$5.63

BEARING | 20x47x14

09269-20006

$28.63

OIL SEAL, RH | 20x37x8 This part replaces 09283-20011.

09283-20034

$5.18

SPACER | 17x23x9

09180-17026

Unavailable

OIL SEAL | 23x47x5 This part replaces 09283-23001.

09283-23002

$7.63

BALL BEARING

08113-63030

$23.65

SPACER | 17x28x4.5

09180-17027

Unavailable

GEAR, PRIMARY DRIVE | NT:21

21111-19501

Unavailable

GEAR, PRIMARY DRIVE | NT:21

21111-19002

Unavailable

WASHER

09166-14008

Unavailable

NUT

09140-14002

$3.40

KEY

08341-31039

$1.89

REED VALVE ASSY

13150-19013

Unavailable

GASKET, REED VALVE

13156-19001

Unavailable

SCREW This part replaces 02121-05167.

02122-05167

$2.47
