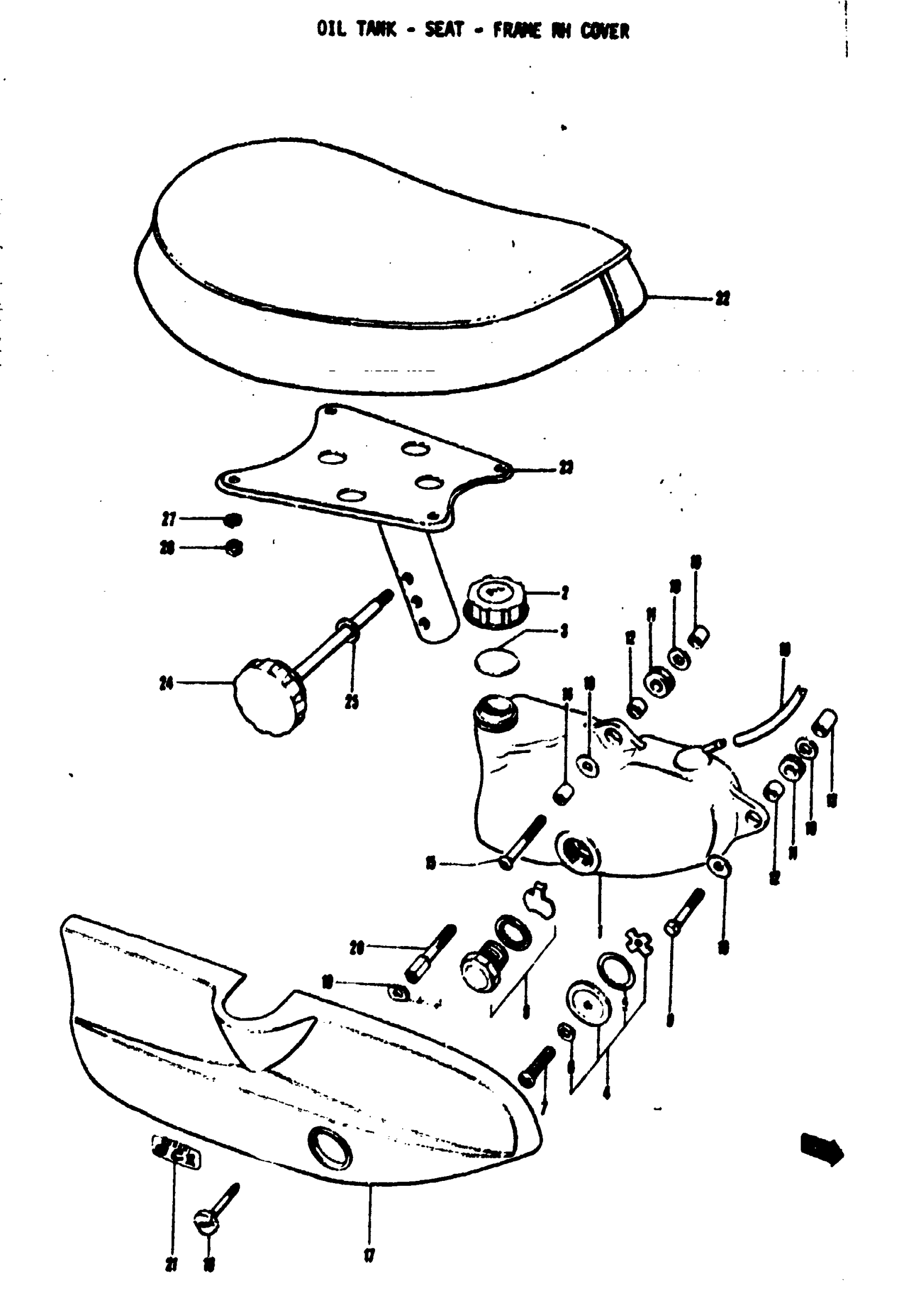

Suzuki MT50 (1973) OIL TANK - SEAT - FRAME RH COVER Diagram

#

Description
Price

1

TANK, OIL

44611-27001

Unavailable

2

CAP, OIL TANK This part replaces 44651-05000.

44651-05003

$5.05

3

OIL TANK CAP GA This part replaces 44661-27000.

44661-27001

$16.28

4

LENS SET, OIL INSPECTION | MT50R; Includes Item(s) 5 - 6

44640-11844

Unavailable

5

O RING | MT50R

09280-23001

Unavailable

6

GASKET | MT50R

09168-05001

$1.98

7

SCREW | MT50R This part replaces 02112-05168.

02112-05167

$1.97

8

OIL LEVEL INSPE This part replaces 44640-31807.

44600-31832

$11.07

9

BOLT This part replaces 01112-06458.

01500-0645B

$2.57

10

WASHER This part replaces 09160-06007.

09160-06084

$1.78

11

CUSHION This part replaces 09320-10008.

09320-10075

$1.93

12

SPACER (6.5X10X10) | L:10 This part replaces 09180-06030.

09180-06310

$1.91

13

SPACER, B | L:24

09180-06036

Unavailable

14

SPACER (6.1X8X12) | L:12 This part replaces 09180-06035.

09180-06249

$2.10

15

SCREW This part replaces 02112-06608.

02112-06607

$2.57

16

HOSE (5X8X2000) | MT50R; L:950 This part replaces 09344-05014.

09351-50803-00B

$9.10

17

COVER, FRAME RH | MT50J

47111-27000-189

Unavailable

17

COVER, FRAME RH | MT50K

47111-27600-546

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 47111-27000-709.

47111-27000-05E

Unavailable

18

KNOB, FRAME COVER

47130-27000-019

Unavailable

19

NUT, KNOB

09152-05101

Unavailable

20

BOLT, FRAME COVER RH

47151-27000

Unavailable

21

EMBLEM | CCI

68171-26000

$3.59

22

NO DESCRIPTION AVAILABLE This part replaces 45100-27000-369.

45100-27000-866

Unavailable

23

BRACKET, SEAT

45220-27000

Unavailable

24

KNOB, SEAT

45230-27000-019

Unavailable

25

GUIDE, SEAT KNOB

09308-11002

Unavailable

26

.NUT This part replaces 08311-11068.

08310-00067

$2.13

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
