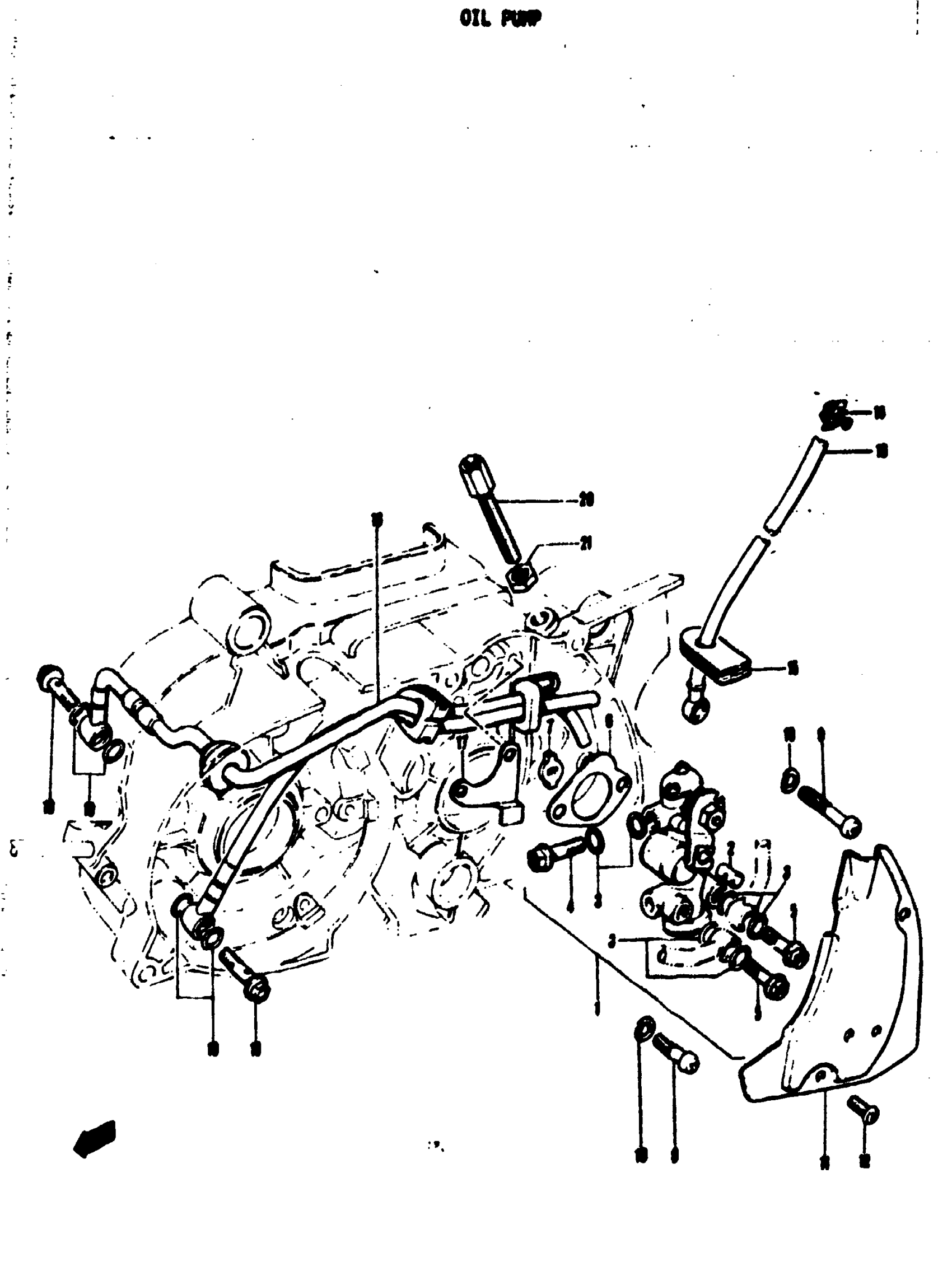

Suzuki MT50 (1973) OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY | Includes Item(s) 2 - 5

16002-19804

Unavailable

2

TERMINAL, CABLE This part replaces 16292-03110.

16292-03112

$5.05

3

GASKET | 6x11.8x1.5 This part replaces 09168-06002.

09168-06004

$1.49

4

UNION BOLT

09360-06005

Unavailable

5

UNION BOLT ASSY

16760-19001

Unavailable

6

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

$2.81

7

PIECE, DRIVE This part replaces 16391-05030.

16391-05031

$3.65

8

SCREW This part replaces 02112-05168.

02112-05167

$1.97

9

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

11

COVER, OIL PUMP

11385-19000

Unavailable

12

SCREW This part replaces 02112-06108.

02112-06107

$1.49

13

HOSE, OIL (L:512!97) This part replaces 16810-05031.

16810-07520

Unavailable

14

OIL HOSE CLAMP This part replaces 09400-00107.

09400-10302

Unavailable

15

GROMMET This part replaces 09309-08002.

09309-08015

$2.38

16

PIPE, OIL OUTLET

16820-19032

Unavailable

17

CLAMP, OUTLET HOSE

16816-19000

Unavailable

18

UNION BOLT

09360-06003

$3.76

19

GASKET | 6x11.8x1.5 This part replaces 09168-06002.

09168-06004

$1.49

20

ADJUSTER

09119-08014

$3.55

21

NUT This part replaces 08312-11088.

08310-00087

$2.13
