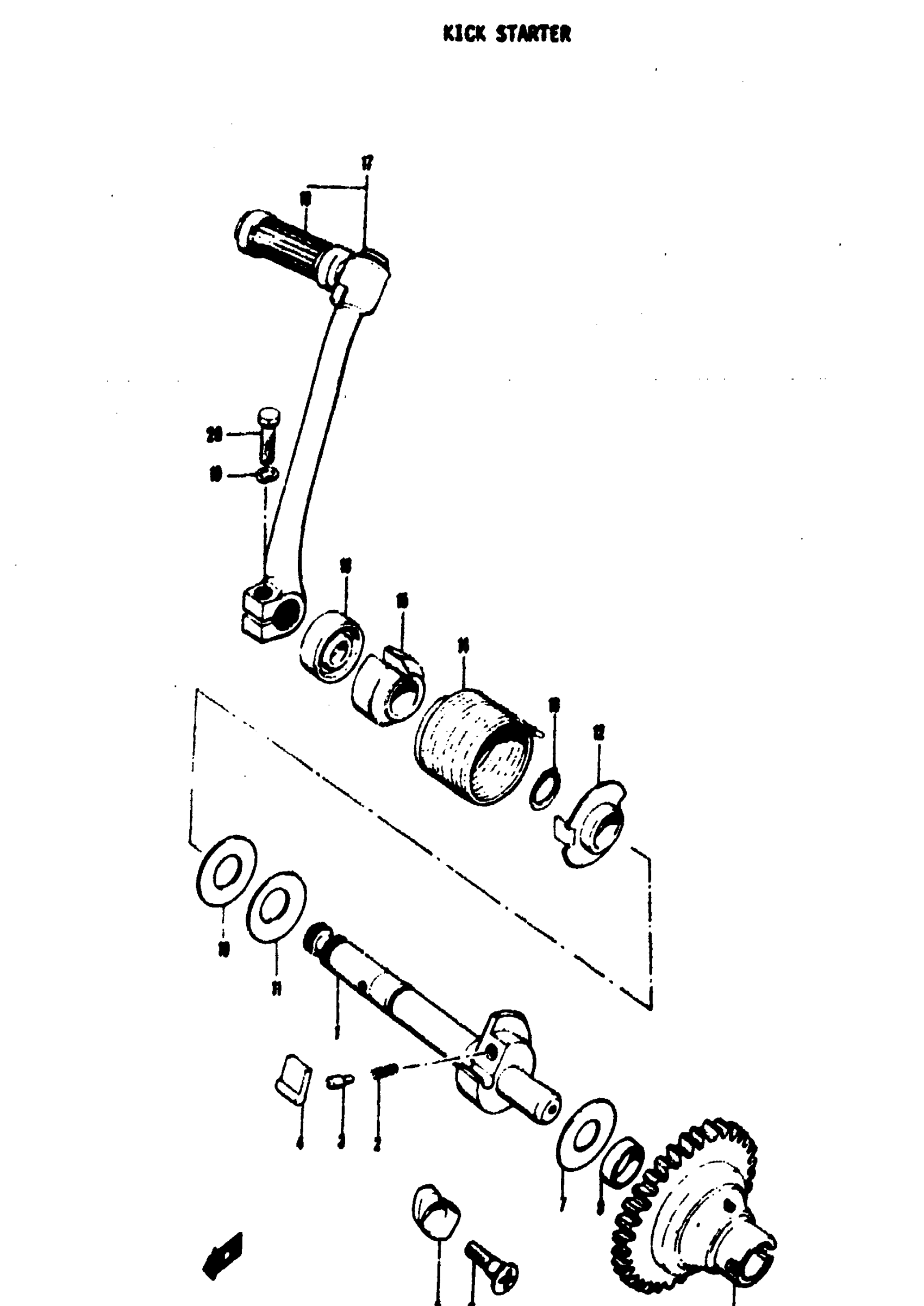

Suzuki MT50 (1973) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-05000

Unavailable

2

SPRING

09440-04010

$1.54

3

PIN

09209-05012

Unavailable

4

PAWL, KICK STARTER

26231-01000

Unavailable

5

LIFTER, KICK STARTER PAWL

26232-06000

Unavailable

6

SCREW

09139-06002

$2.38

7

THRUST WASHER

08211-12302

$2.16

8

OIL SEAL

09284-12006

Unavailable

9

GEAR, KICK STARTER DRIVE | NT:33

26241-19002

Unavailable

10

WASHER | 14x29x0.8

09160-14016

$1.93

11

WASHER

09164-14004

Unavailable

12

HOLDER, SPRING

26222-01001

Unavailable

13

CIRCLIP, SHIFT SHAFT This part replaces 08331-11149.

08331-3114A

$1.91

14

SPRING

09448-38002

Unavailable

15

GUIDE, SPRING

26221-01030

Unavailable

16

OIL SEAL (14X24X6) | 14x24x6 This part replaces 09285-14001.

09285-14002

$16.88

17

LEVER ASSY,KICK | Includes Item(s) 18 This part replaces 26300-03002.

26300-35553

Unavailable

18

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

BOLT This part replaces 01112-06258.

01500-06257

$1.97
