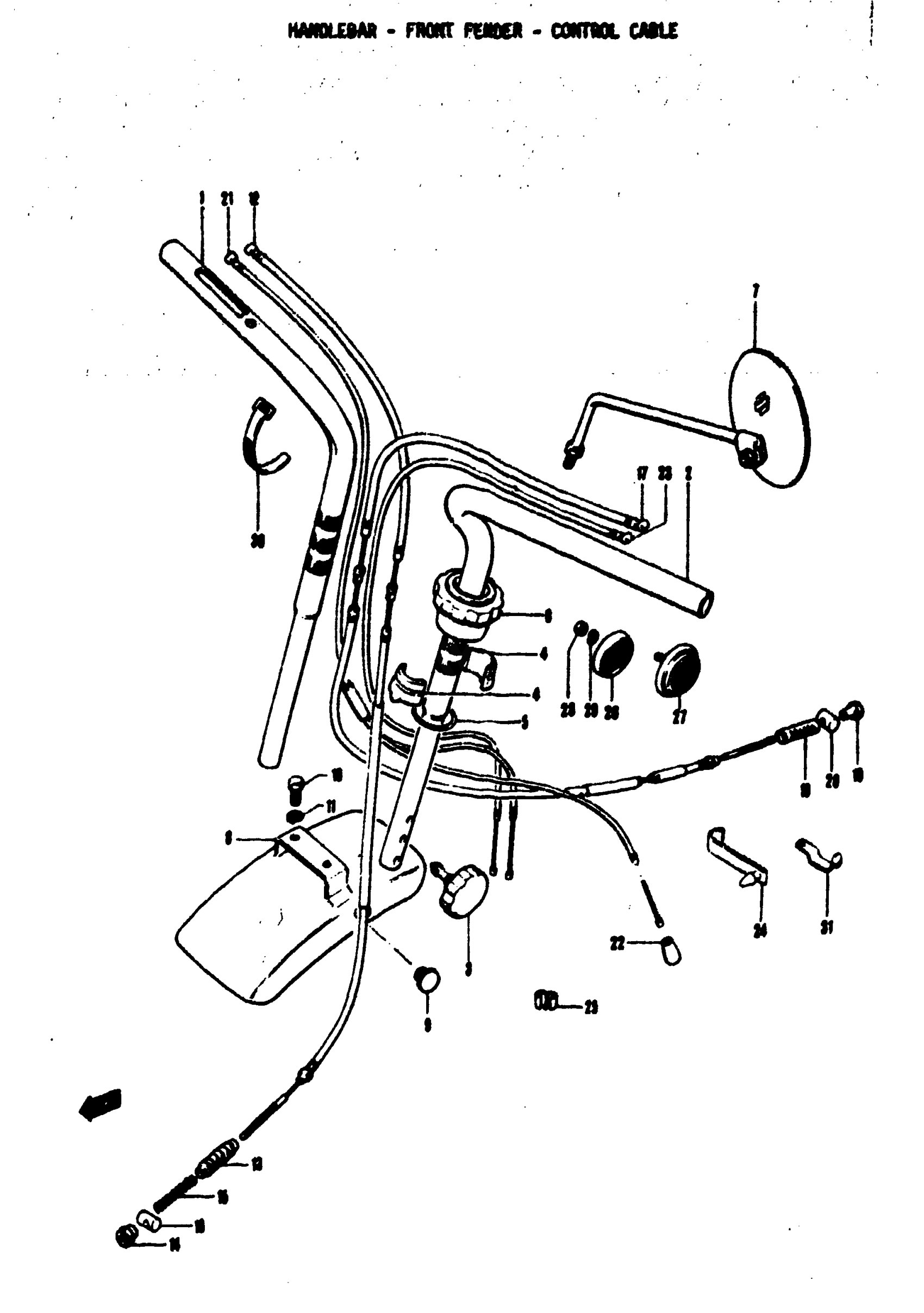

Suzuki MT50 (1973) HANDLEBAR - FRONT FENDER - CONTROL CABLE Diagram

#

Description
Price

1

HANDLEBAR, RH

56110-27000

Unavailable

2

HANDLEBAR, LH

56150-27000

Unavailable

3

KNOB, HANDLEBAR

56220-27000

Unavailable

4

STOPPER, HANDLEBAR

56235-27001

Unavailable

5

RING

09381-28001

Unavailable

6

NUT, HANDLEBAR STOPPER

56211-27000

Unavailable

7

MIRROR ASSY, REAR VIEW

56500-27010

Unavailable

8

NO DESCRIPTION AVAILABLE | MT50R This part replaces 53110-27001-126.

53110-27001-737

Unavailable

8

NO DESCRIPTION AVAILABLE | MT50J This part replaces 53110-27001-137.

53110-27001-737

Unavailable

8

NO DESCRIPTION AVAILABLE | MT50K This part replaces 53110-27001-709.

53110-27001-737

Unavailable

9

PLUG

09250-09002

Unavailable

10

BOLT, CANISTER This part replaces 01112-06167.

01500-06167

$1.97

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

CABLE, FRONT BRAKE | MT50K

58110-03741

Unavailable

12

CABLE, FRONT BRAKE | MT50R,MT50J; Includes Item(s) 13 - 16

58110-27000

Unavailable

13

DUST SEAL

09287-07001

$2.00

14

NUT

09150-05101

$3.04

15

SPRING

09440-06003

$2.44

16

PIN

09209-10001

$1.49

17

CABLE, REAR BRAKE | MT50R,MT50J

58510-27000

Unavailable

18

DUST SEAL | MT50R,MT50J

09287-05001

Unavailable

19

NUT | MT50R,MT50J

09150-05101

$3.04

20

PIN | MT50R,MT50J

09209-10001

$1.49

21

NO DESCRIPTION AVAILABLE This part replaces 58300-27000.

58300-27X01

Unavailable

22

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

23

NO DESCRIPTION AVAILABLE This part replaces 58410-01002.

58410-01X00

Unavailable

24

CLIP | MT50RMT50J,MT50K

09410-00031

Unavailable

25

CLIP | MT50K

09408-00005

Unavailable

26

REFLEX REFLECTOR | MT50R

35950-18612

Unavailable

27

REFLEX REFLECTOR FRONT | MT50J,MT50K This part replaces 35950-31010.

35950-49080

$17.24

28

NUT This part replaces 08311-11058.

08310-00057

$1.84

29

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

30

BAND (L:120) | MT50R This part replaces 09410-00030.

09407-12402

$3.04

31

CLAMP, REAR BRAKE CABLE | MT50R,MT50J

09403-00042

Unavailable
