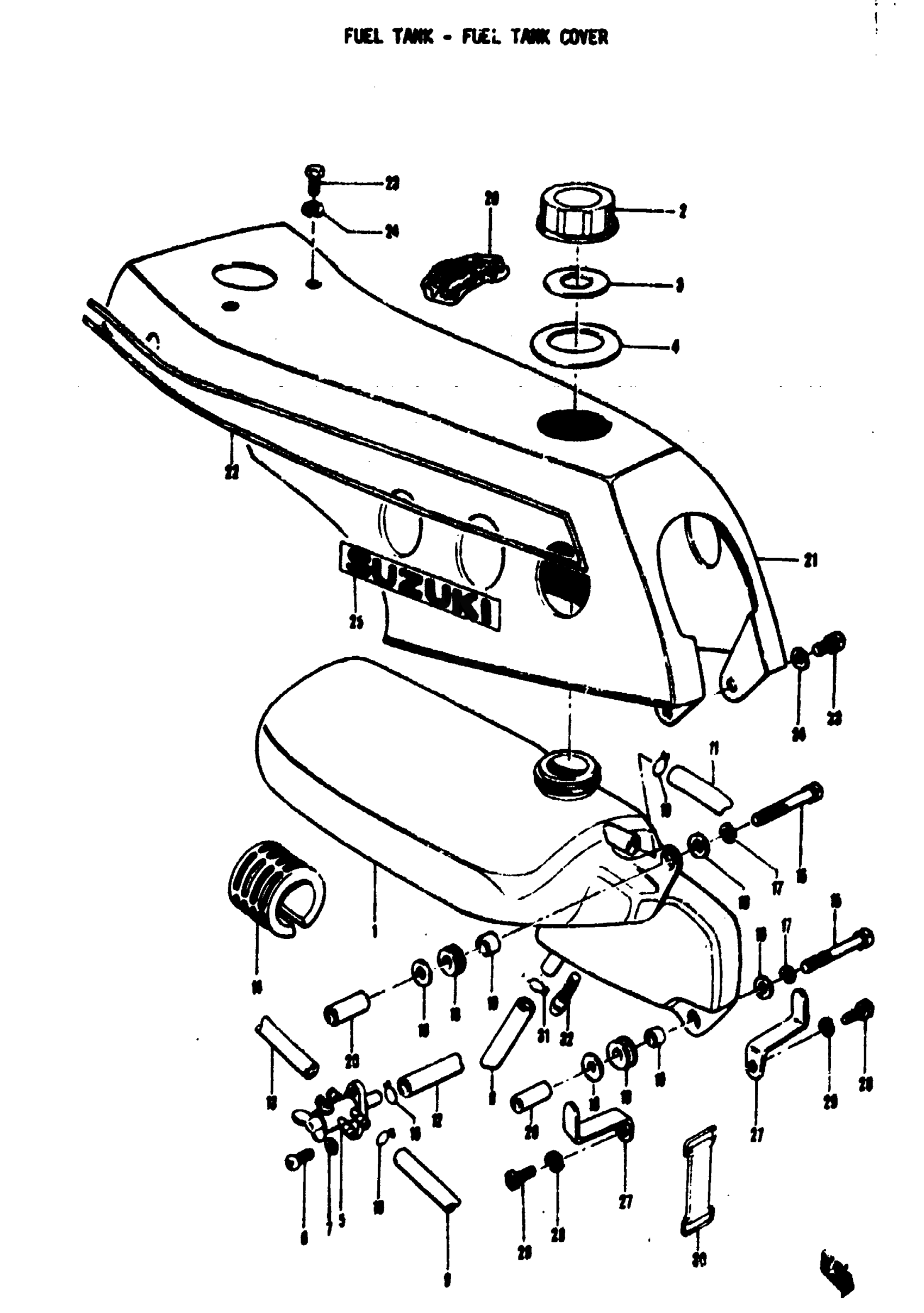

Suzuki MT50 (1973) FUEL TANK - FUEL TANK COVER Diagram

#

Description
Price

1

TANK, FUEL

44111-27001

Unavailable

2

CAP, FUEL TANK

44211-27000

Unavailable

3

GASKET

44248-27000

Unavailable

4

RUBBER,FUEL TAN This part replaces 44261-27000.

44261-27001

Unavailable

5

COCL ASSY, FUEL & OIL

44300-27060

Unavailable

6

SCREW This part replaces 02112-05168.

02112-05167

$1.97

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

HOSE, FUEL NO.1 | L:700

09343-05094

Unavailable

9

HOSE | L:310 This part replaces 09343-05076.

09352-50005-00B

$13.93

10

CLIP

09386-08001

Unavailable

11

HOSE | L:350 This part replaces 09343-05016.

09352-50005-00B

$13.93

12

HOSE (5X8X2000) | L:950 This part replaces 09344-05014.

09351-50803-00B

$9.10

13

HOSE | L:420 This part replaces 09343-05017.

09352-50005-00B

$13.93

14

CUSHION, FUEL TANK LOWER

44541-27000

Unavailable

15

BOLT

01112-06557

Unavailable

16

WASHER This part replaces 09160-06007.

09160-06084

$1.78

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

CUSHION This part replaces 09320-10008.

09320-10075

$1.93

19

SPACER (6.5X10X10) | L:10 This part replaces 09180-06030.

09180-06310

$1.91

20

.SPACER (6.5X10X27.5) | L:27.5 This part replaces 09180-06024.

09180-06298

$3.15

21

NO DESCRIPTION AVAILABLE | MT50R This part replaces 44171-27000-184.

44171-27000-126

Unavailable

21

COVER, FUEL TANK | MT50J

44171-27600-546

Unavailable

21

COVER, FUEL TANK | MT50K

44171-27610-906

Unavailable

22

TAPE, FUEL TANK COVER | MT50K

68115-15600-019

Unavailable

23

SCREW

09128-06008

$1.49

24

WASHER This part replaces 09160-06007.

09160-06084

$1.78

25

EMBLEM, FUEL TANK COVER | SUZUKI

68111-27000

Unavailable

26

EMBLEM, PET NAME | HOPPER

68221-27000

Unavailable

27

BREACE, FUEL TANK COVER LOWER

44174-27000

Unavailable

28

SCREW

09128-06008

$1.49

29

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

30

BAND, FUEL TANK REAR

09462-00047

Unavailable

31

CLIP This part replaces 09386-10001.

09401-10401

$1.49

32

FILTER, FUEL This part replaces 44322-27000.

44322-27001

$5.05
