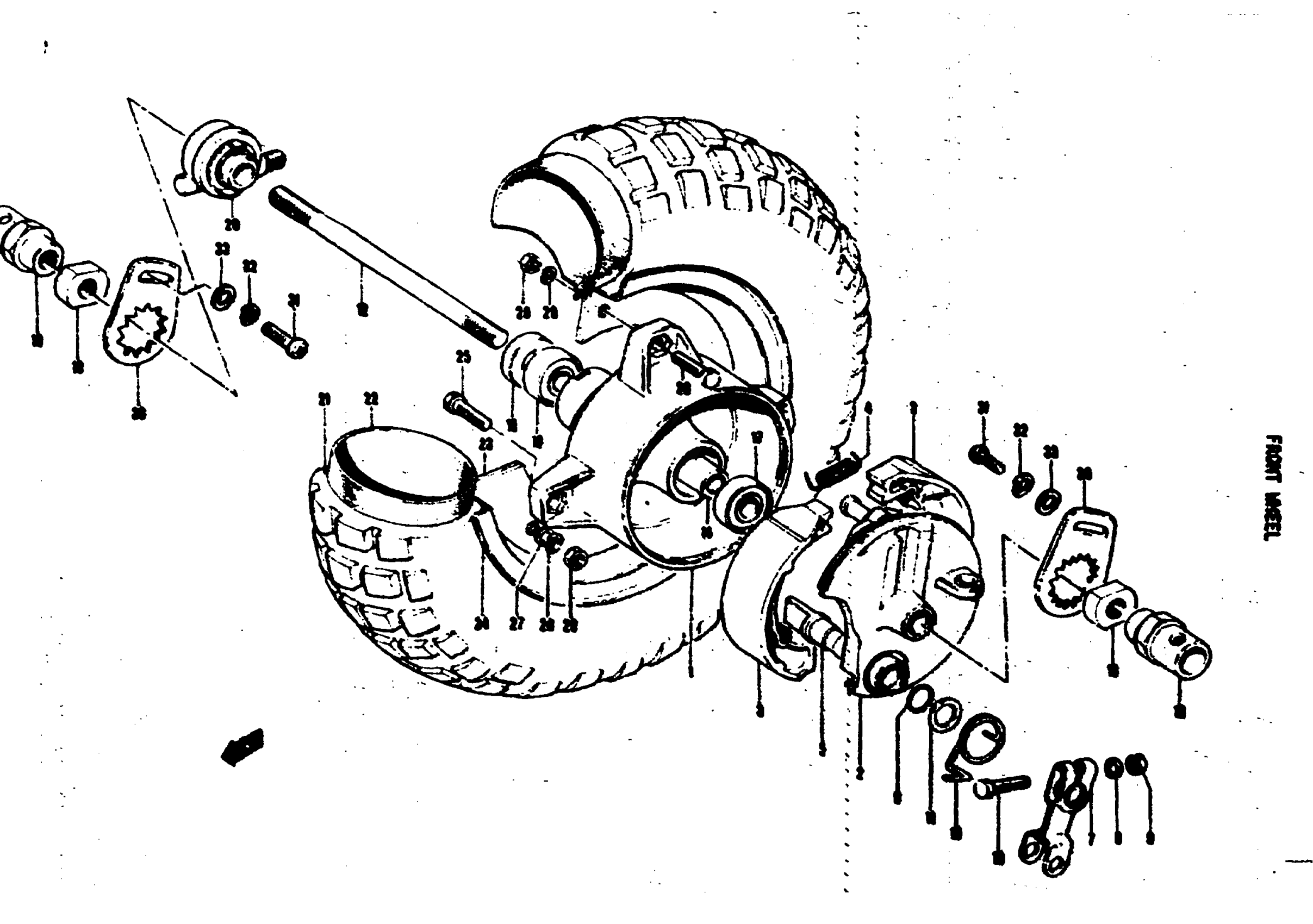

Suzuki MT50 (1973) FRONT WHEEL Diagram

#

Description
Price

1

DRUM

54110-27000

Unavailable

2

PANEL

54210-27000

Unavailable

3

SHOE/SPRING SET This part replaces 54410-01004.

54400-35860

$36.32

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE

54441-28000

Unavailable

6

DUST SEAL

09280-12001

$2.90

7

LEVER, BRAKE CAM

64451-27000

Unavailable

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

11

WASHER

09160-12011

$1.54

12

AXLE, FRONT

54711-27600

Unavailable

13

NUT, AXLE

09152-12001

Unavailable

14

SPACER, BEARING

09180-12038

Unavailable

15

OIL SEAL

09283-18002

Unavailable

16

BEARING This part replaces 08123-62010.

08133-62017

$18.47

17

BEARING This part replaces 08123-62010.

08133-62017

$18.47

18

NUT, AXLE

54721-27600

Unavailable

19

SPRING

09448-27003

Unavailable

20

BOX ASSY, SPEEDOMETER GEAR

54600-27010

Unavailable

21

TIRE

55100-27011

Unavailable

22

NO DESCRIPTION AVAILABLE This part replaces 55200-27010.

55200-17200

Unavailable

23

RIM, WHEEL RH

55312-27000-046

Unavailable

24

RIM, WHEEL LH

55313-27000-046

Unavailable

25

PLUG, DRAIN This part replaces 01122-08168.

01500-0816B

$2.50

26

BOLT This part replaces 01122-08257.

01500-08257

$2.50

27

WASHER This part replaces 08322-11088.

08322-01087

$2.13

28

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

29

NUT This part replaces 08312-11088.

08310-00087

$2.13

30

PLATE, AXLE NUT LOCK

54781-27000

Unavailable

31

SCREW

09128-05101

$1.49

32

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

33

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30
