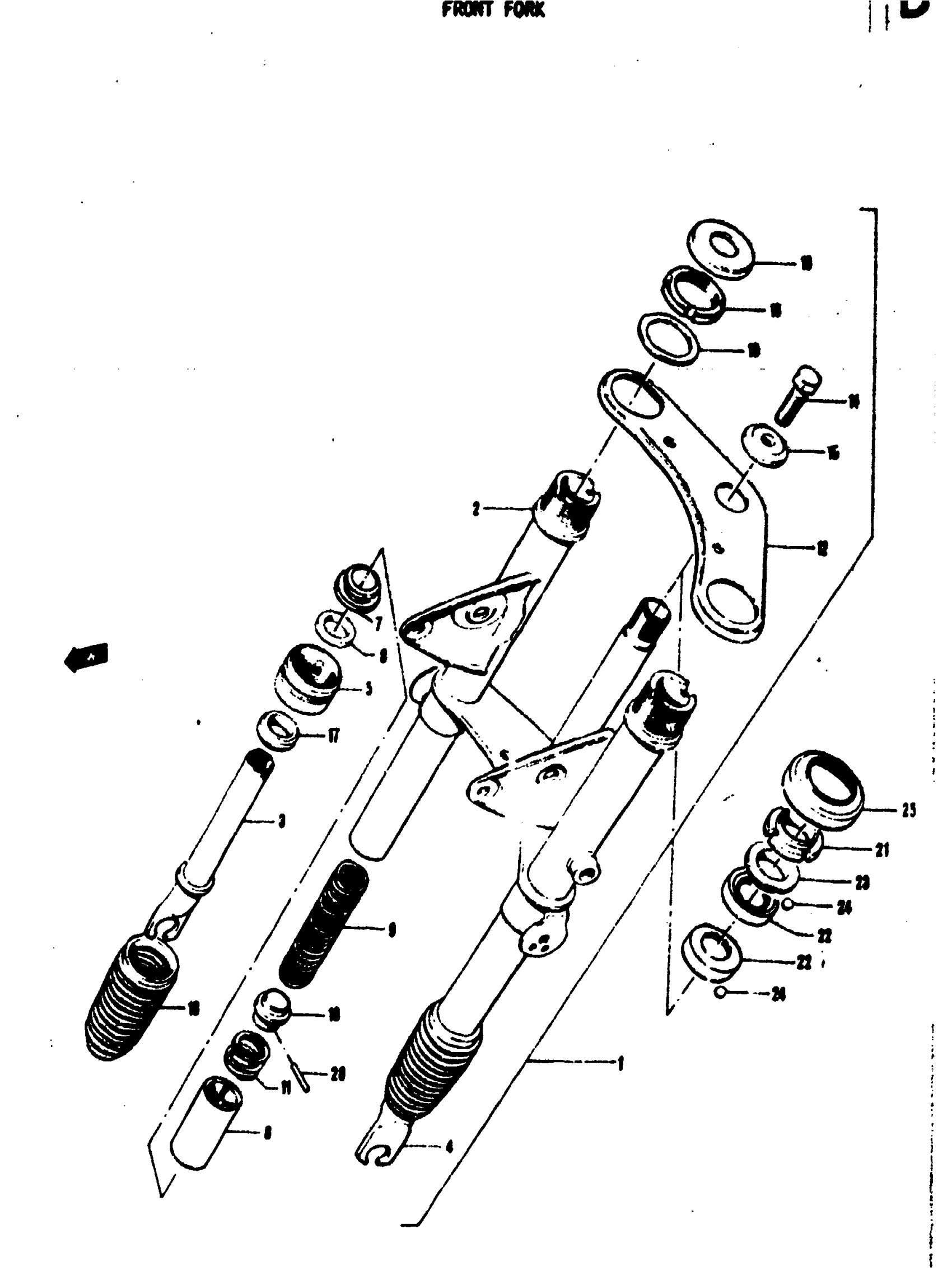

Suzuki MT50 (1973) FRONT FORK Diagram

#

Description
Price

1

FORK ASSY, FRONT | MT50R

51100-27601-591

Unavailable

1

FORK ASSY, FRONT | MT50J

51100-27601-566

Unavailable

1

FORK ASSY, FRONT | MT50K; Includes Item(s) 2 - 20

51100-27601-907

Unavailable

2

STEERING STEM | MT50R

51410-27601-184

Unavailable

2

STEERING STEM | MT50J

51410-27601-137

Unavailable

2

NO DESCRIPTION AVAILABLE | MT50K This part replaces 51410-27601-709.

51410-27601-05E

Unavailable

3

TUBE, LOWER RH

51130-27600

Unavailable

4

TUBE, LOWER LH

51140-27600

Unavailable

5

NUT, LOWER TUBE

51151-27000

Unavailable

6

GUIDE, LOWER TUBE A | L:71

51152-27001

Unavailable

7

GUIDE, LOWER TUBE B

51157-27100

Unavailable

8

OIL SEAL

09283-22010

Unavailable

9

SPRING NO.1

51171-27000

Unavailable

10

GUIDE, LOWER SPRING

51172-27000

Unavailable

11

SPRING NO.2

51177-27000

Unavailable

12

HEAD, STEERING STEM

51310-27000-126

Unavailable

13

NUT, FORK UPPER

51353-27000

Unavailable

14

BOLT

09104-10006

Unavailable

15

WASHER, FORK UPPER

51356-27000

Unavailable

16

DUST SEAL

09281-20001

Unavailable

17

CUSHION, FORK

51193-27000

Unavailable

18

BOOT

51571-27000

Unavailable

19

WASHER

09160-37002

Unavailable

20

DOWEL PIN

09205-04001

Unavailable

21

NUT, STEERING STEM

51631-25000

Unavailable

22

RACE, INNER

51611-20001

Unavailable

23

RACE, OUTER

51621-25000

$12.40

24

STEEL BALL

06111-06003

$1.49

25

DUST SEAL

51643-25000

Unavailable
