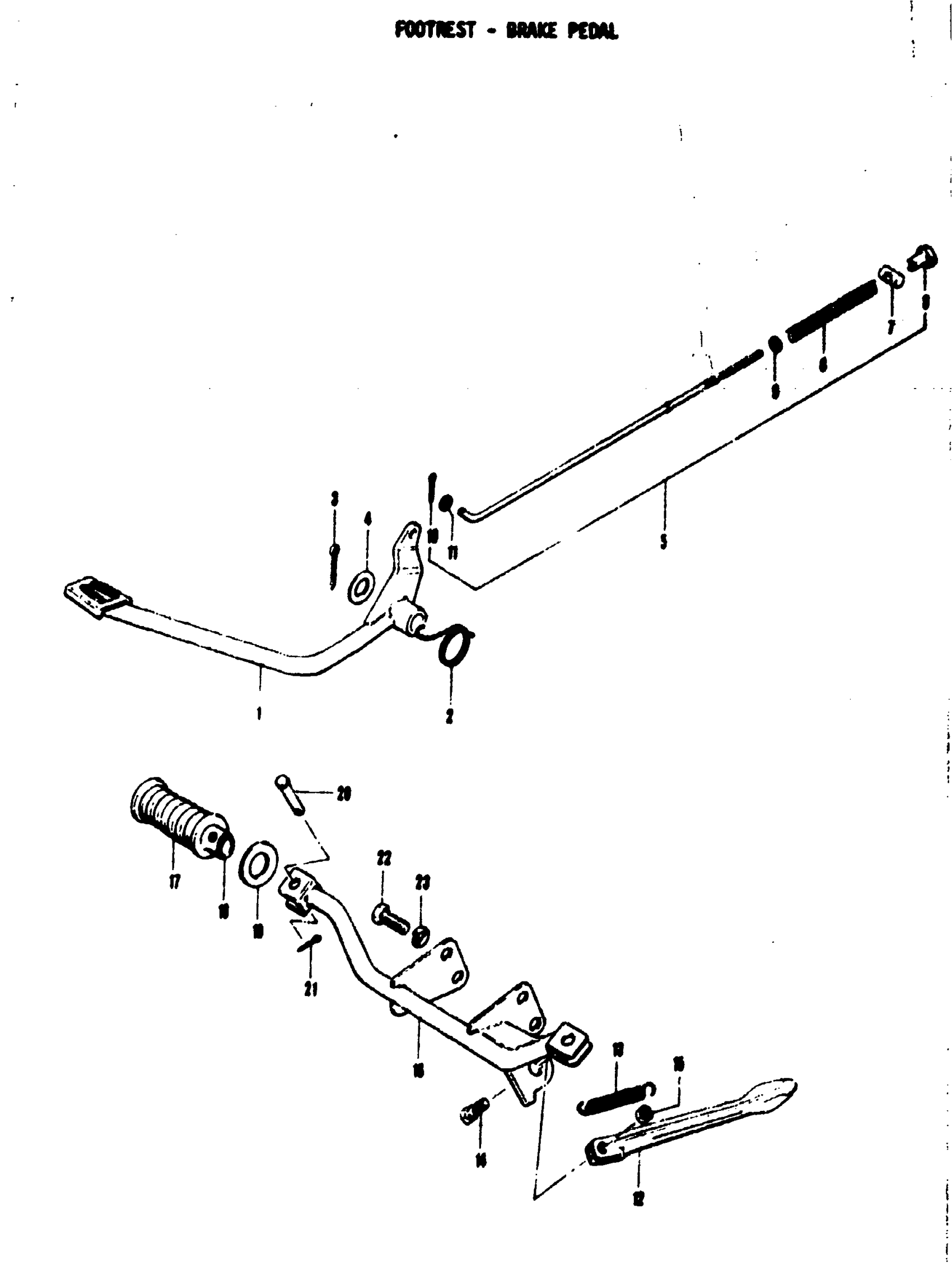

Suzuki MT50 (1973) FOOTREST - BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL, BRAKE | MT50K

43110-27600

Unavailable

2

SPRING | MT50K

09448-31006

Unavailable

3

PIN | MT50K This part replaces 04111-30308.

04111-3030A

$1.49

4

WASHER | MT50K

09160-15002

$1.91

5

ROD ASSY, REAR BRAKE | MT50K; Includes Item(s) 6 - 11

43300-27002

Unavailable

6

SPRING | MT50K

09440-09004

$2.20

7

PIN | MT50K

09209-10001

$1.49

8

NUT | MT50K

09150-05101

$3.04

9

WASHER | MT50K This part replaces 08322-21058.

08322-01057

$2.13

10

COTTER PIN | MT50K This part replaces 04111-20208.

04111-2020A

$1.49

11

WASHER | MT50K This part replaces 08322-21058.

08322-01057

$2.13

12

PROP STAND | MT50K

42310-19000

Unavailable

13

SPRING This part replaces 09443-14005.

09443-14017

$3.04

14

BOLT | 10SCREW This part replaces 09100-10007.

09100-10287

$3.48

15

NUT This part replaces 08312-31108.

08310-00107

$2.19

16

FOOTREST BAR, FRONT

43510-27000

Unavailable

17

RUBBER, FOOTREST

43612-03001

$5.15

18

BAR, FOOTREST RUBBER

43610-03001

$6.52

19

WASHER | MT50J,MT50K This part replaces 09160-19006.

09160-19024

$2.65

19

WASHER | MT50R This part replaces 09160-19004.

09160-19024

$2.65

20

PIN

09200-06010

$1.72

21

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

22

PLUG, DRAIN This part replaces 01122-08168.

01500-0816B

$2.50

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
