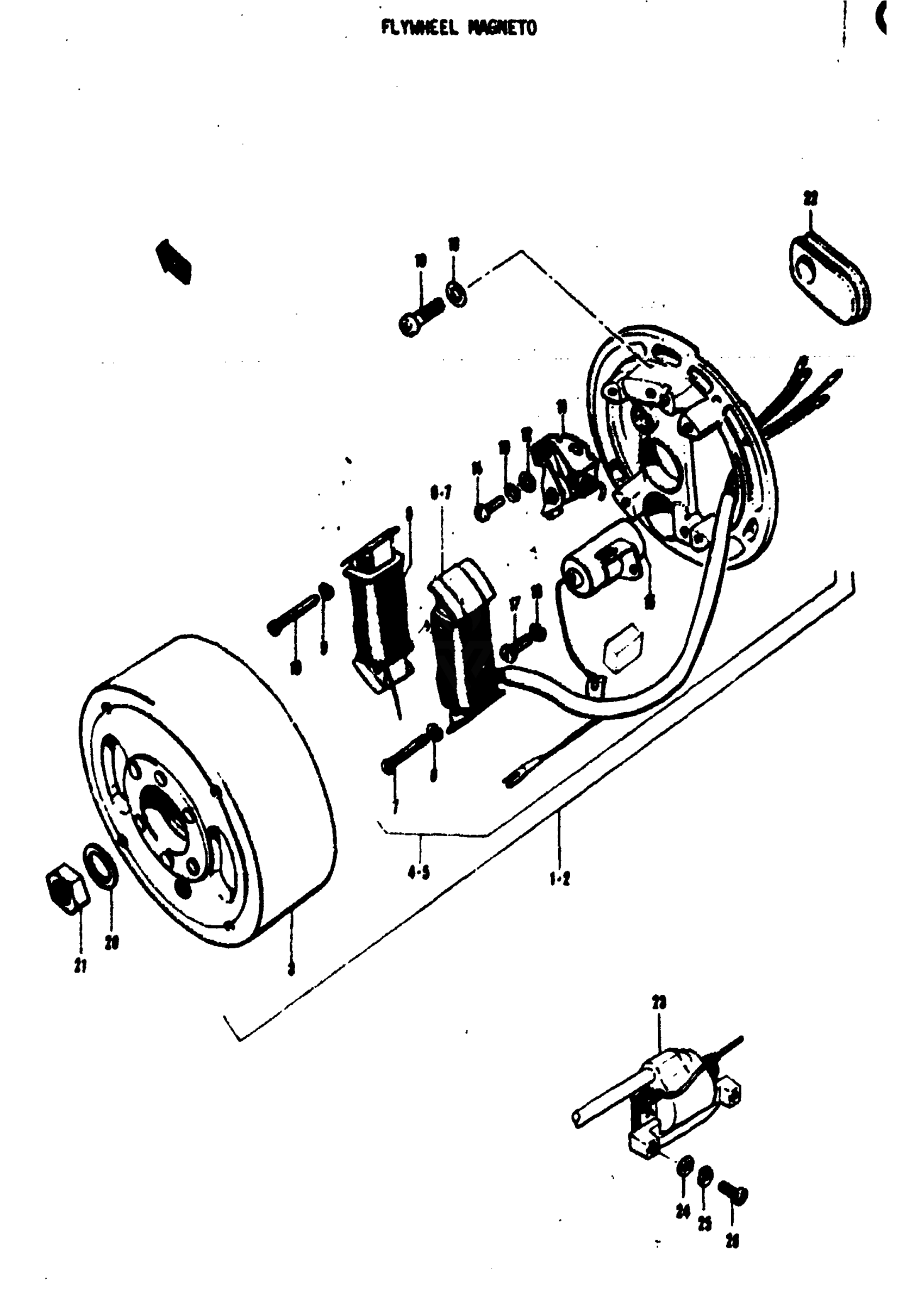

Suzuki MT50 (1973) FLYWHEEL MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY

32100-26610

Unavailable

2

NO DESCRIPTION AVAILABLE | MT50R; Includes Item(s) 3 - 17 This part replaces 32100-22010.

32100-43010

Unavailable

3

ROTOR

32102-22010

Unavailable

4

STATOR ASSY

32101-26610

Unavailable

5

NO DESCRIPTION AVAILABLE | MT50J This part replaces 32101-22010.

32101-22011

Unavailable

6

LAMP COIL

32120-26610

Unavailable

7

LAMP COIL | MT50R

32120-03110

Unavailable

8

COIL, PRIMARY This part replaces 32140-03110.

32140-26612

Unavailable

9

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

10

SCREW

02111-04258

Unavailable

11

CONTACT POINT This part replaces 32240-28010.

32240-43012

$38.45

12

WASHER This part replaces 08322-21048.

08322-01047

$1.86

13

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

14

SCREW This part replaces 02311-04108.

02112-0410A

$1.49

15

CONDENSER

32341-03110

Unavailable

16

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

17

SCREW This part replaces 02311-04108.

02112-0410A

$1.49

18

WASHER This part replaces 08322-21058.

08322-01057

$2.13

19

SCREW This part replaces 02112-05168.

02112-05167

$1.97

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

21

NUT This part replaces 08311-11108.

08310-00107

$2.19

22

GROMMET This part replaces 09309-09006.

09309-09007

Unavailable

23

IGNITION COIL A This part replaces 33410-22220.

33410-22221

Unavailable

24

WASHER This part replaces 08322-21058.

08322-01057

$2.13

25

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

26

SCREW This part replaces 02111-05127.

02112-05127

$1.97
