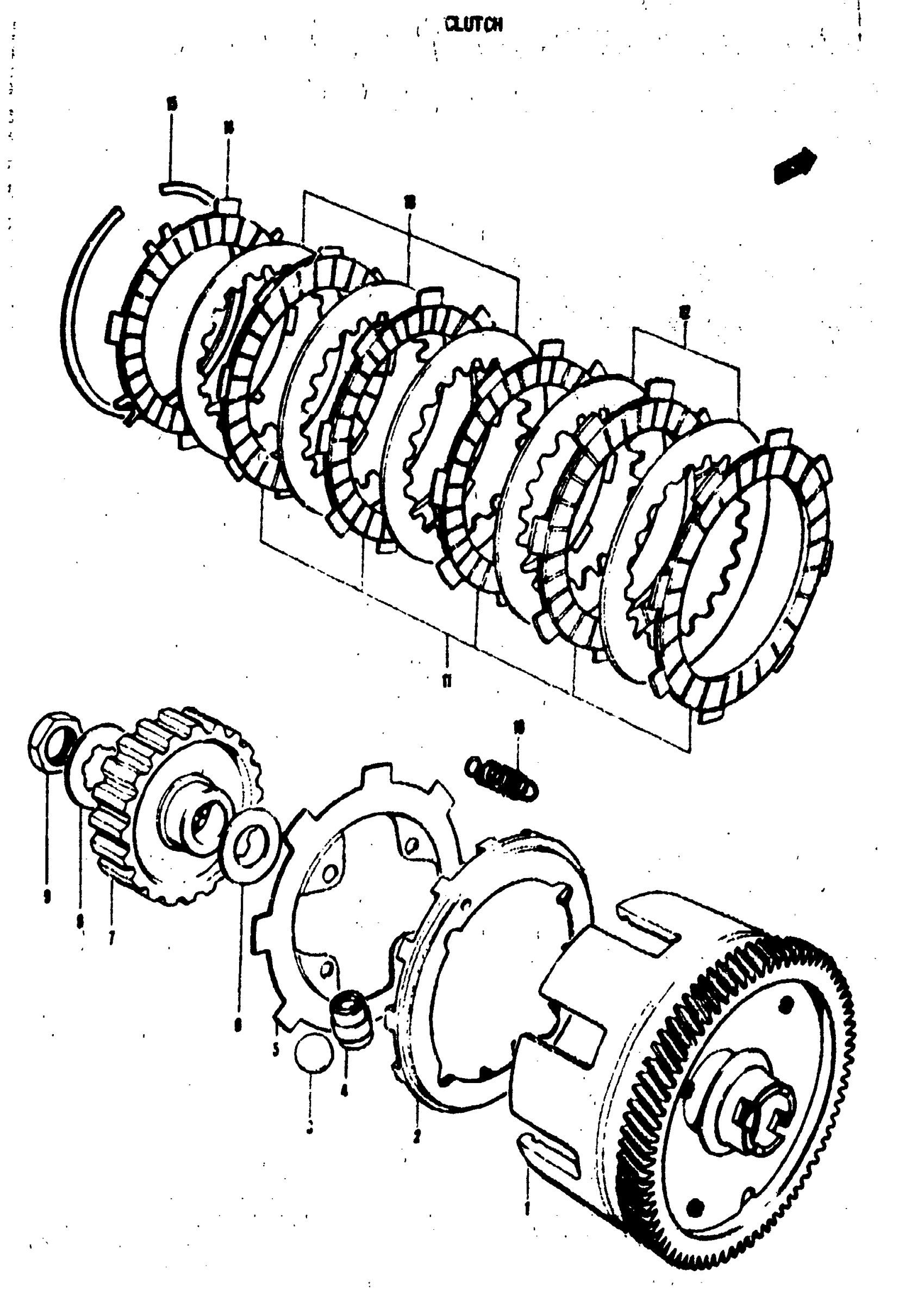

Suzuki MT50 (1973) CLUTON Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MT50K; NT:71 This part replaces 21200-19500.

21200-19502

Unavailable

1

GEAR, PRIMARY DRIVEN | MT50R.MT50J; NT:73

21200-19001

Unavailable

2

GUIDE, BALL | MT50K

21631-19510

Unavailable

2

GUIDE, ROLLER | MT50R,MT50J

21631-02011

Unavailable

3

NO DESCRIPTION AVAILABLE | MT50K This part replaces 09260-19001.

06112-19004

Unavailable

4

ROLLER, CLUTCH

21650-19000

Unavailable

5

PLATE, CLUTCH INNER

21465-19000

Unavailable

6

THRUST WASHER

08211-17282

$2.70

7

HUB, CLUTCH SLEEVE

21411-19001

Unavailable

8

WASHER

09167-17002

$1.91

9

NUT This part replaces 09140-16001.

09140-16005

$3.75

10

SPRING | MT50K

09443-07015

Unavailable

10

SPRING | MT50R,MT50J

09443-07009

Unavailable

11

NO DESCRIPTION AVAILABLE | T:3 This part replaces 21441-19001.

21441-35300

Unavailable

12

ADJUSTER, CLUTCH DRIVEN | (0~3); T:1.2

21452-19000

Unavailable

12

ADJUSTER, CLUTCH DRIVEN | (0~3); T:1.4

21453-19000

Unavailable

13

PLATE, CLUTCH DRIVEN | (2~5); T:1.6

21451-19001

Unavailable

14

PLATE, CLUTCH DRIVEN OUTER | T:2.1

21443-19000

Unavailable

15

CIRCLIP

09381-00001

Unavailable
