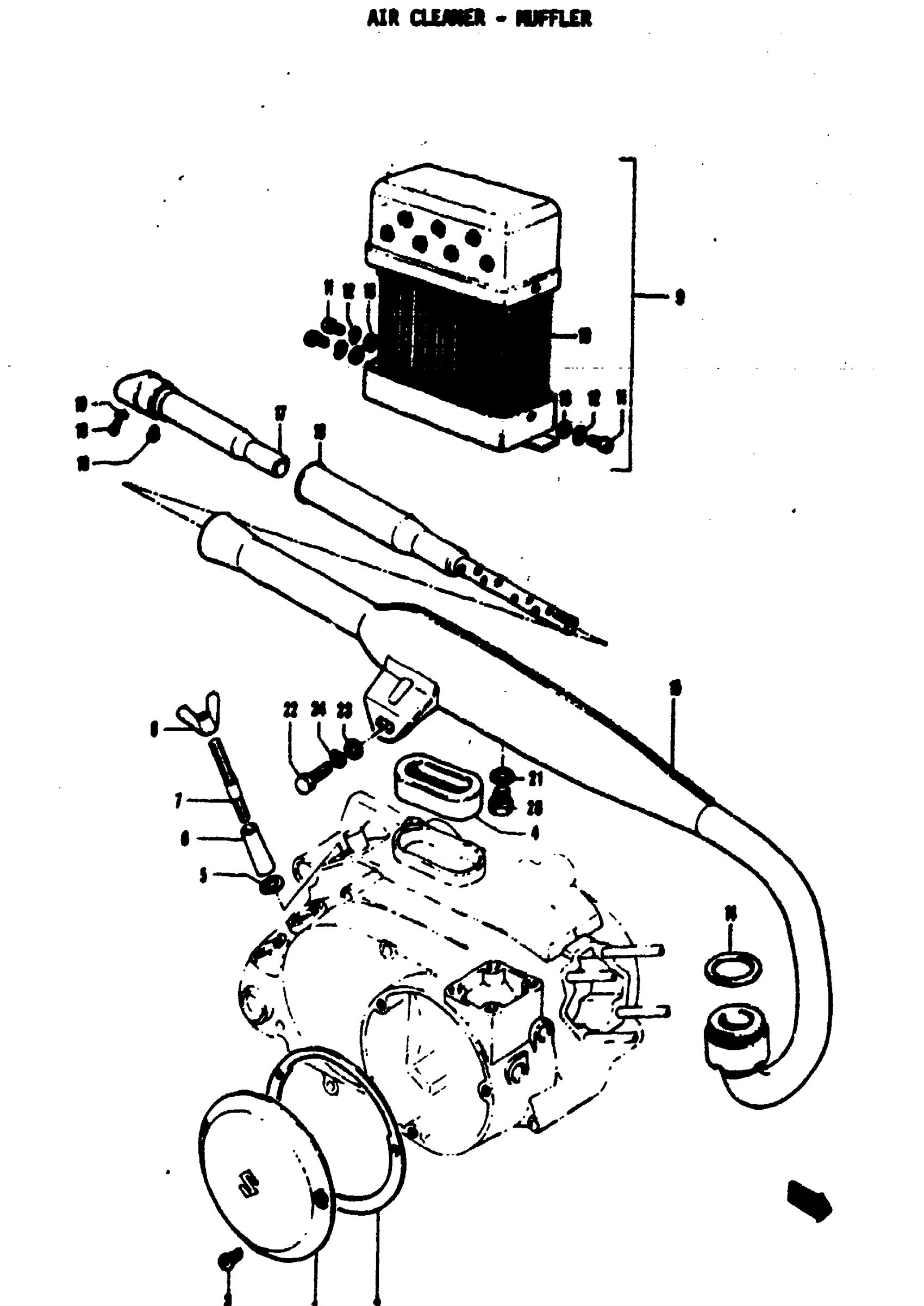

Suzuki MT50 (1973) AIR CLEANER - MUFFLER Diagram

#

Description
Price

1

CAP, CARBURETOR INSPECTION

11383-19001

Unavailable

2

GASKET

11492-05002

$6.77

3

SCREW This part replaces 02112-05168.

02112-05167

$1.97

4

HOSE, AIR INLET

13880-19000

Unavailable

5

WASHER This part replaces 08322-21068.

08322-01067

$2.13

6

SPACER (6.5X10X20) This part replaces 09180-06031.

09180-06296

$2.45

7

STUD BOLT This part replaces 01421-06308.

01421-06307

$2.62

8

NUT

09144-06002

Unavailable

9

CLEANER ASSY, AIR | Includes Item(s) 10 - 13

13700-19011

Unavailable

10

FILTER

13780-19011

Unavailable

11

SCREW This part replaces 02111-04087.

02112-04087

$1.49

12

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

13

WASHER This part replaces 08322-21048.

08322-01047

$1.86

14

GASKET,EXHAUST This part replaces 14181-19000.

14181-19001

$7.73

15

MUFFLER ASSY | Includes Item(s) 16 - 17

14301-27000

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 14810-27000.

14810-27001

Unavailable

17

TUBE, CLEAN OUT

14860-18400

Unavailable

18

SCREW This part replaces 02111-05068.

09125-05122

$2.06

19

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

20

BOLT(10X9) This part replaces 09100-10004.

09128-10002

$1.70

21

GASKET

09168-10002

$2.13

22

BOLT, CANISTER This part replaces 01122-06168.

01500-06167

$1.97

23

WASHER This part replaces 08322-21088.

08322-01087

$2.13

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
