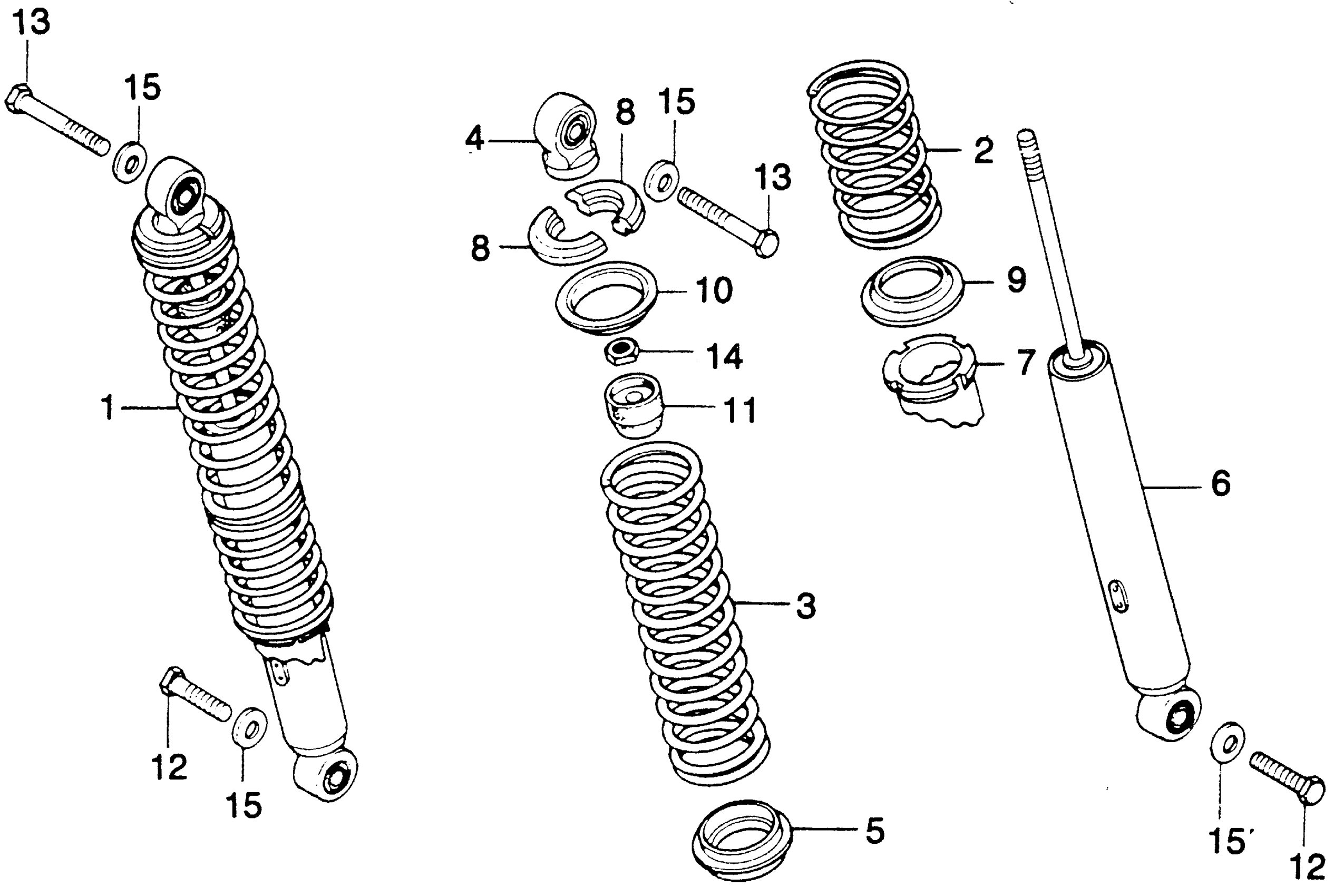

Honda MT250K1A MOTORCYCLE, JPN, VIN# MT250-2000001 SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-358-771

Unavailable

2

SPRING A, RR. SHOCK ABSORBER

52401-358-000

Unavailable

3

SPRING B, RR. SHOCK ABSORBER (NOT AVAILABLE)

52402-356-000

Unavailable

4

JOINT (UPPER) (NOT AVAILABLE)

52403-357-000

Unavailable

5

JOINT, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52404-329-010

Unavailable

6

SHOCK ABSORBER, RR. (NOT AVAILABLE)

52410-358-771

Unavailable

7

ADJUSTER, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52422-329-000

Unavailable

8

STOPPER, SPRING SEAT (SHOWA)

52424-331-003

$8.90

9

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE)

52458-329-000

Unavailable

10

SEAT, RR. SHOCK ABSORBER SPRING (SHOWA)

52459-312-003

Unavailable

11

RUBBER, STOPPER (NOT AVAILABLE)

52517-358-771

Unavailable

12

BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-10032-0A.

92101-10032-0A

Unavailable

13

BOLT, HEX. (10X50) This part replaces 92000-10050-0A.

92101-10050-0A

$2.88

13

BOLT, HEX. (10X50)

92101-10050-0A

$2.88

14

NUT, HEX. (10MM)

94002-10000-0S

$4.06

15

WASHER, PLAIN (10MM)

94101-10000

$1.49
