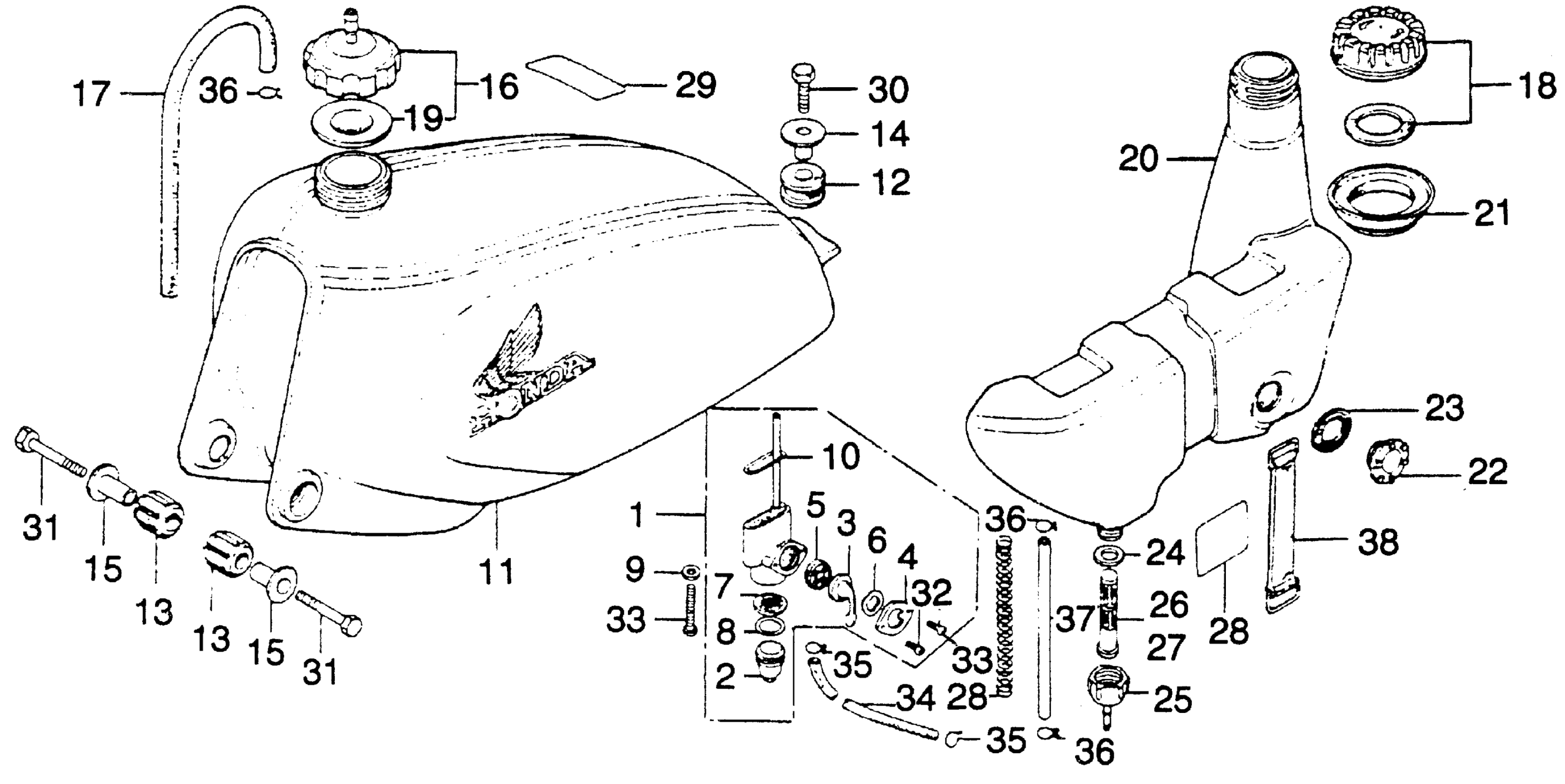

Honda MT250K1A MOTORCYCLE, JPN, VIN# MT250-2000001 FUEL TANK + OIL TANK Diagram

PETCOCK ASSY. (NOT AVAILABLE)

16950-361-770

Unavailable

CUP, FUEL STRAINER

16952-028-000

Unavailable

LEVER, PETCOCK (NOT AVAILABLE)

16953-389-670

Unavailable

PLATE, PETCOCK LEVER SETTING (NOT AVAILABLE)

16954-389-670

Unavailable

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$3.08

GASKET, VALVE

16957-ZE1-812

$3.08

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.41

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.41

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.41

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.41

SCREEN, FUEL STRAINER

16957-028-000

$16.22

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

GASKET, PETCOCK BODY

16993-011-000

Unavailable

GASKET, PETCOCK BODY

16997-273-006

$6.74

TANK ASSY., FUEL *NH42M/R23* (CUSTOM SILVER METALLIC AND TAHITIAN RED) (NOT AVAILABLE)

17500-358-770UK

Unavailable

RUBBER, FUEL TANK MOUNT (NOT AVAILABLE) This part replaces 17507-357-000.

17507-360-000

Unavailable

RUBBER, FUEL TANK MOUNT (NOT AVAILABLE)

17507-360-000

Unavailable

RUBBER, FUEL TANK MOUNT (NOT AVAILABLE)

17507-358-000

Unavailable

COLLAR, FUEL TANK MOUNT (NOT AVAILABLE)

17508-357-000

Unavailable

COLLAR, FR. FUEL TANK MOUNT (NOT AVAILABLE)

17508-358-000

Unavailable

CAP ASSY., FUEL TANK (NOT AVAILABLE) This part replaces 17510-355-000.

17510-355-010

Unavailable

CAP ASSY., FUEL TANK (NOT AVAILABLE)

17510-355-010

Unavailable

CAP ASSY., FUEL TANK (NOT AVAILABLE) This part replaces 17510-357-000.

17510-355-010

Unavailable

CAP ASSY., FUEL TANK (NOT AVAILABLE) | Use up to Frame SN 2012935 This part replaces 17510-358-000.

17510-355-010

Unavailable

TUBE, FUEL CAP BREATHER (NOT AVAILABLE)

17520-357-000

Unavailable

CAP, FUEL FILLER (NOT AVAILABLE)

17620-358-000

Unavailable

GASKET, FUEL CAP This part replaces 17624-098-010.

17624-896-750

Unavailable

GASKET, FUEL CAP This part replaces 17624-355-000.

17624-896-750

Unavailable

GASKET, FUEL CAP This part replaces 17624-355-010.

17624-896-750

Unavailable

GASKET, FUEL CAP

17624-896-750

Unavailable

TANK, OIL (NOT AVAILABLE)

55100-358-000

Unavailable

GASKET, OIL TANK (NOT AVAILABLE)

55101-358-000

Unavailable

LEVEL, OIL TANK (NOT AVAILABLE)

55103-358-000

Unavailable

GASKET, OIL LEVEL (NOT AVAILABLE)

55104-358-000

Unavailable

GASKET, OIL TANK JOINT (NOT AVAILABLE)

55106-358-000

Unavailable

JOINT, OIL TANK (NOT AVAILABLE)

55107-358-000

Unavailable

SCREEN, OIL STRAINER (NOT AVAILABLE)

55121-358-010

Unavailable

PROTECTOR, OIL TUBE (NOT AVAILABLE)

55125-358-000

Unavailable

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-358-670

Unavailable

MARK, DRIVE CAUTION (NOT AVAILABLE)

87560-358-670

Unavailable

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

SCREW, PAN (3X6) | Use up to Frame SN 2013805

93500-03006-0A

$1.49

SCREW, PAN (3X6) | Use from Frame SN 2013806

93500-03006-0H

$1.49

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

SCREW, PAN (6X40)

93500-06040-0A

$1.49

BULK HOSE, FUEL (5.5X3000) (5.5X180)

95001-55003-60M

$47.32

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (C9)

95002-50000

$1.49

BULK HOSE, VINYL (5X9X1000) (5X9X150)

95003-11001-60M

$4.77

BAND B2, BATTERY This part replaces 95012-13000.

95012-13001

$5.28

BAND B2, BATTERY

95012-13001

$5.28
