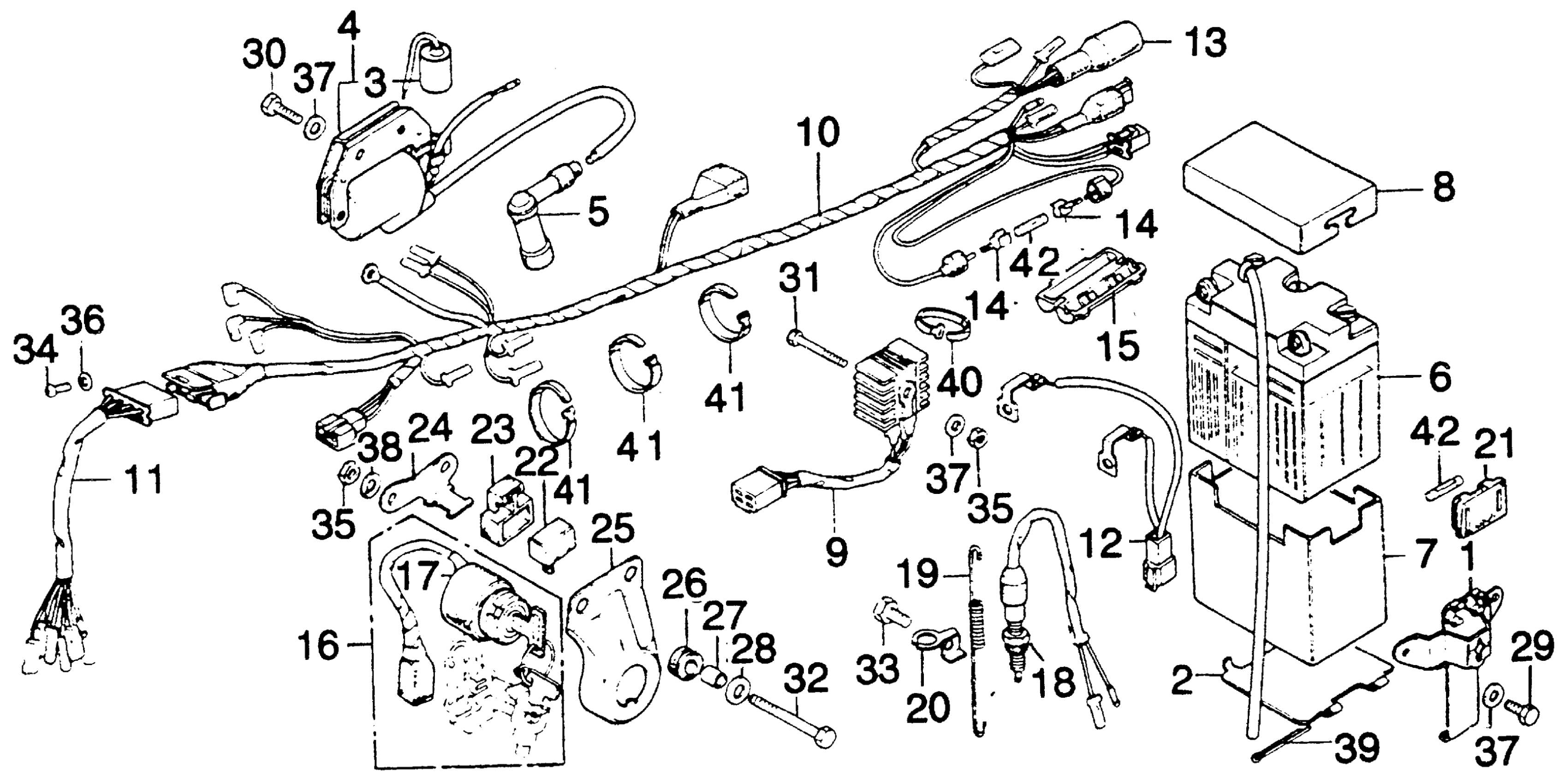

Honda MT250A MOTORCYCLE, JPN, VIN# MT250-1000001 WIRE HARNESS Diagram

#

Description
Price

1

PLATE, BATTERY HINGE (NOT AVAILABLE)

17234-358-000

Unavailable

2

PLATE, HINGE HOOK (NOT AVAILABLE)

17235-358-000

Unavailable

3

CONDENSER ASSY.

30250-329-305

Unavailable

4

COIL, IGNITION This part replaces 30500-358-003.

30500-950-405

$118.02

4

COIL, IGNITION

30500-950-405

$118.02

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

6

BATTERY (6N6-3B) This part replaces 31500-329-671.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 31500-324-601.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 31500-329-677.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 98202-63260.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 98203-63250.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 98203-63260.

31500-329-677AH

Unavailable

7

COVER A, BATTERY (NOT AVAILABLE)

31532-358-000

Unavailable

8

COVER B, BATTERY (NOT AVAILABLE)

31533-358-000

Unavailable

9

RECTIFIER SET, SILICON (NOT AVAILABLE) This part replaces 31700-358-013.

31700-358-305

Unavailable

9

RECTIFIER SET, SILICON (NOT AVAILABLE)

31700-358-305

Unavailable

10

WIRE HARNESS A (NOT AVAILABLE)

32100-358-000

Unavailable

11

WIRE HARNESS B

32105-358-000

Unavailable

12

WIRE, BATTERY TERMINAL (NOT AVAILABLE)

32106-358-000

Unavailable

13

COVER, WIRE HARNESS CONNECTOR

32108-046-000

Unavailable

14

CONNECTOR, FUSE

32112-230-000

$3.64

15

CASE, FUSE (10A) (NOT AVAILABLE)

32120-329-000

Unavailable

16

LOCK SET (NOT AVAILABLE)

35010-361-007

Unavailable

16

LOCK SET (NOT AVAILABLE) This part replaces 35011-329-670.

35010-361-007

Unavailable

16

LOCK SET (NOT AVAILABLE) This part replaces 35011-356-305.

35010-361-007

Unavailable

18

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

18

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

19

SPRING, STOP SWITCH

35357-358-000

Unavailable

20

STAY, STOP SWITCH (NOT AVAILABLE)

35358-358-000

Unavailable

21

CASE, FUSE (NOT AVAILABLE)

38205-115-000

Unavailable

22

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

23

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-107-670

Unavailable

24

STAY, TURN SIGNAL RELAY (NOT AVAILABLE)

38555-358-000

Unavailable

25

BRACKET, MAIN SWITCH *NH1* (BLACK) (NOT AVAILABLE)

50375-292-020B

Unavailable

26

RUBBER, FENDER

84905-333-000

$4.22

27

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

28

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

29

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

29

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

29

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

30

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

30

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

31

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

31

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

31

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

32

BOLT, HEX. (6X45) This part replaces 92000-06045.

92101-06045-0A

$1.49

32

BOLT, HEX. (6X45) This part replaces 92000-06045-0A.

92101-06045-0A

$1.49

32

BOLT, HEX. (6X45)

92101-06045-0A

$1.49

33

BOLT, HEX. (8X10) This part replaces 92000-08010-0A.

92101-08010-0A

$1.38

33

BOLT, HEX. (8X10) This part replaces 92100-08010-0A.

92101-08010-0A

$1.38

33

BOLT, HEX. (8X10)

92101-08010-0A

$1.38

34

SCREW, TAPPING (4X8) (NOT AVAILABLE)

93901-24110

Unavailable

35

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM)

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

36

WASHER, PLAIN (4MM)

94101-04000

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

37

WASHER, PLAIN (6MM)

94101-06800

$1.49

38

WASHER, SPRING (6MM)

94111-06000

$1.49

39

PIN, COTTER (3.0X50)

94201-30500

$3.80

40

BAND B1, CABLE

32161-404-000

$2.23

40

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

41

BAND A3, CABLE

95014-61300

$1.97

42

FUSE A (10A)

98200-11000

$1.80
