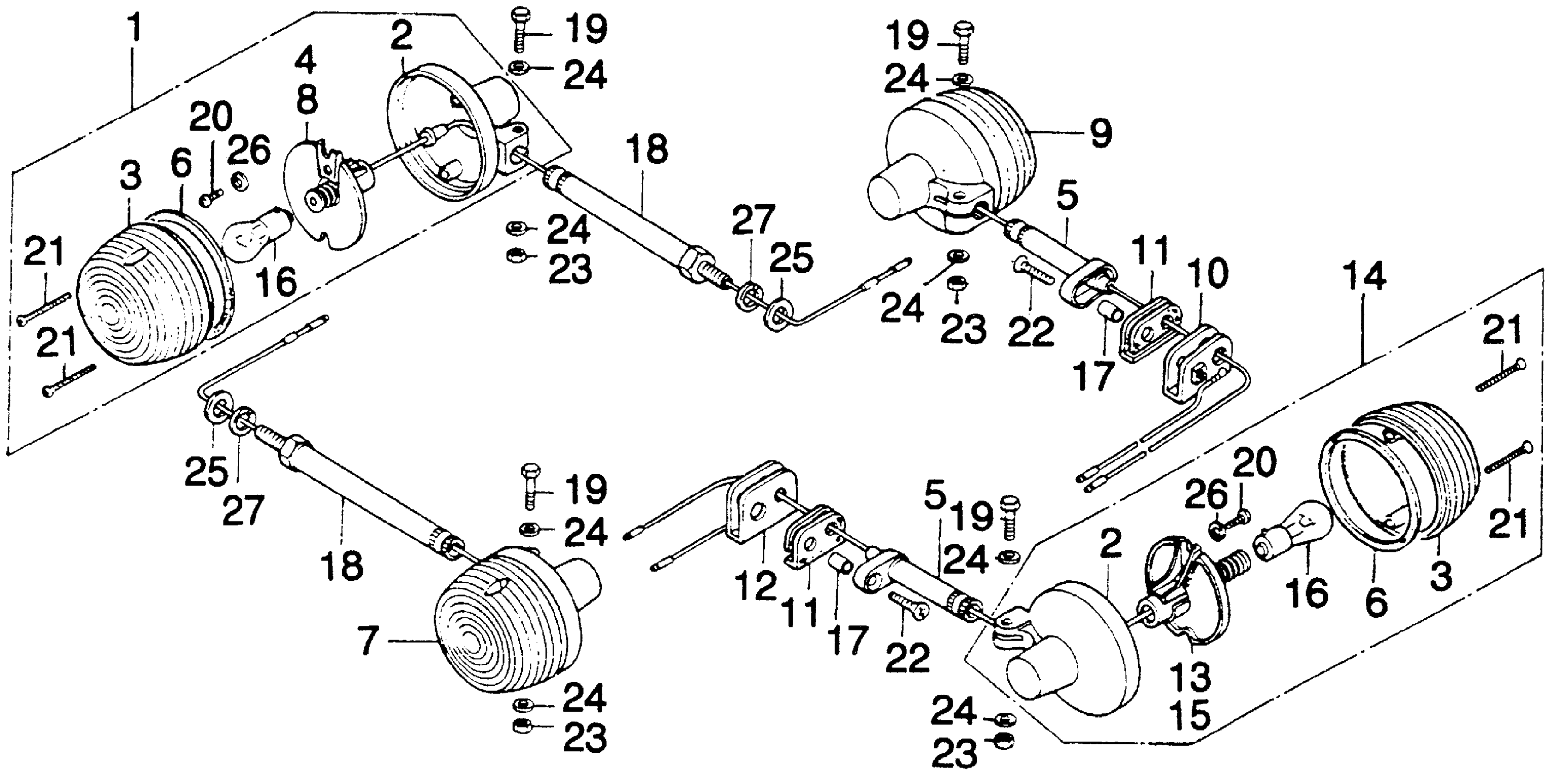

Honda MT250A MOTORCYCLE, JPN, VIN# MT250-1000001 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. (NOT AVAILABLE) | Use up to Frame SN 1029042

33400-358-671

Unavailable

1

TURN SIGNAL ASSY., R. FR. (NOT AVAILABLE) This part replaces 33400-361-670.

33400-361-679

Unavailable

1

TURN SIGNAL ASSY., R. FR. (NOT AVAILABLE)

33400-361-679

Unavailable

2

BASE, TURN SIGNAL This part replaces 33401-292-003.

33401-341-701

$39.39

2

BASE, TURN SIGNAL

33401-341-701

$39.39

3

LENS, FR. TURN SIGNAL (STANLEY) This part replaces 33402-268-671.

33402-268-672

$8.92

3

LENS, FR. TURN SIGNAL (STANLEY)

33402-268-672

$8.92

4

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) | Use up to Frame SN 102942

33410-358-671

Unavailable

4

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) | Use from Frame SN 1029043

33410-361-670

Unavailable

5

STAY, RR. TURN SIGNAL (NOT AVAILABLE)

33441-455-670

Unavailable

6

GASKET, TURN SIGNAL LENS

33443-268-671

$2.13

7

TURN SIGNAL ASSY., L. FR. (6V18W) (NOT AVAILABLE) | Use up to Frame SN 1029042

33450-358-671

Unavailable

7

TURN SIGNAL ASSY., R. FR. (NOT AVAILABLE) | Use from Frame SN 1029043 This part replaces 33400-361-670.

33400-361-679

Unavailable

7

TURN SIGNAL ASSY., R. FR. (NOT AVAILABLE)

33400-361-679

Unavailable

7

TURN SIGNAL ASSY., R. FR. (NOT AVAILABLE) This part replaces 33450-361-670.

33400-361-679

Unavailable

8

SOCKET, L. FR. TURN SIGNAL (NOT AVAILABLE) | Use up to Frame SN 1029042

33460-358-671

Unavailable

8

SOCKET, L. TURN SIGNAL (NOT AVAILABLE) | Use from Frame SN 1029043

33460-361-670

Unavailable

9

TURN SIGNAL ASSY., R. RR. (NOT AVAILABLE)

33600-358-671

Unavailable

10

STOPPER, R. RR. TURN SIGNAL (NOT AVAILABLE)

33605-358-000

Unavailable

11

RUBBER, RR. TURN SIGNAL MOUNT (NOT AVAILABLE)

33606-354-000

Unavailable

12

STOPPER, L. RR. TURN SIGNAL (NOT AVAILABLE)

33609-358-000

Unavailable

13

SOCKET, R. RR. TURN SIGNAL (NOT AVAILABLE)

33610-358-671

Unavailable

14

TURN SIGNAL ASSY., L. RR. (NOT AVAILABLE)

33650-358-671

Unavailable

15

SOCKET, L. RR. TURN SIGNAL

33660-358-671

Unavailable

16

BULB, TURN SIGNAL (6V17W) (STANLEY) This part replaces 34905-053-000.

34905-358-003

$5.42

16

BULB, TURN SIGNAL (6V17W) (STANLEY) This part replaces 34905-053-003.

34905-358-003

$5.42

16

BULB, TURN SIGNAL (6V17W) (STANLEY) This part replaces 34905-056-671.

34905-358-003

$5.42

16

BULB, TURN SIGNAL (6V17W) (STANLEY)

34905-358-003

$5.42

17

COLLAR A, RR. FENDER This part replaces 80108-061-000.

80108-061-010

$4.12

17

COLLAR A, RR. FENDER

80108-061-010

$4.12

18

BOLT, FR. TURN SIGNAL SET (NOT AVAILABLE)

90154-455-670

Unavailable

19

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

19

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

20

SCREW, PAN (5X8)

93500-05008-0A

$1.49

21

SCREW, OVAL (3X25)

93700-03025-0A

$1.49

22

SCREW, OVAL (6X25) This part replaces 93700-06025-02.

93700-06025-0B

$1.49

22

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, PLAIN (10MM)

94101-10000

$1.49

26

WASHER, SPRING (5MM)

94111-05000

$1.49

27

WASHER, SPRING (8MM)

94111-10000

$1.49
