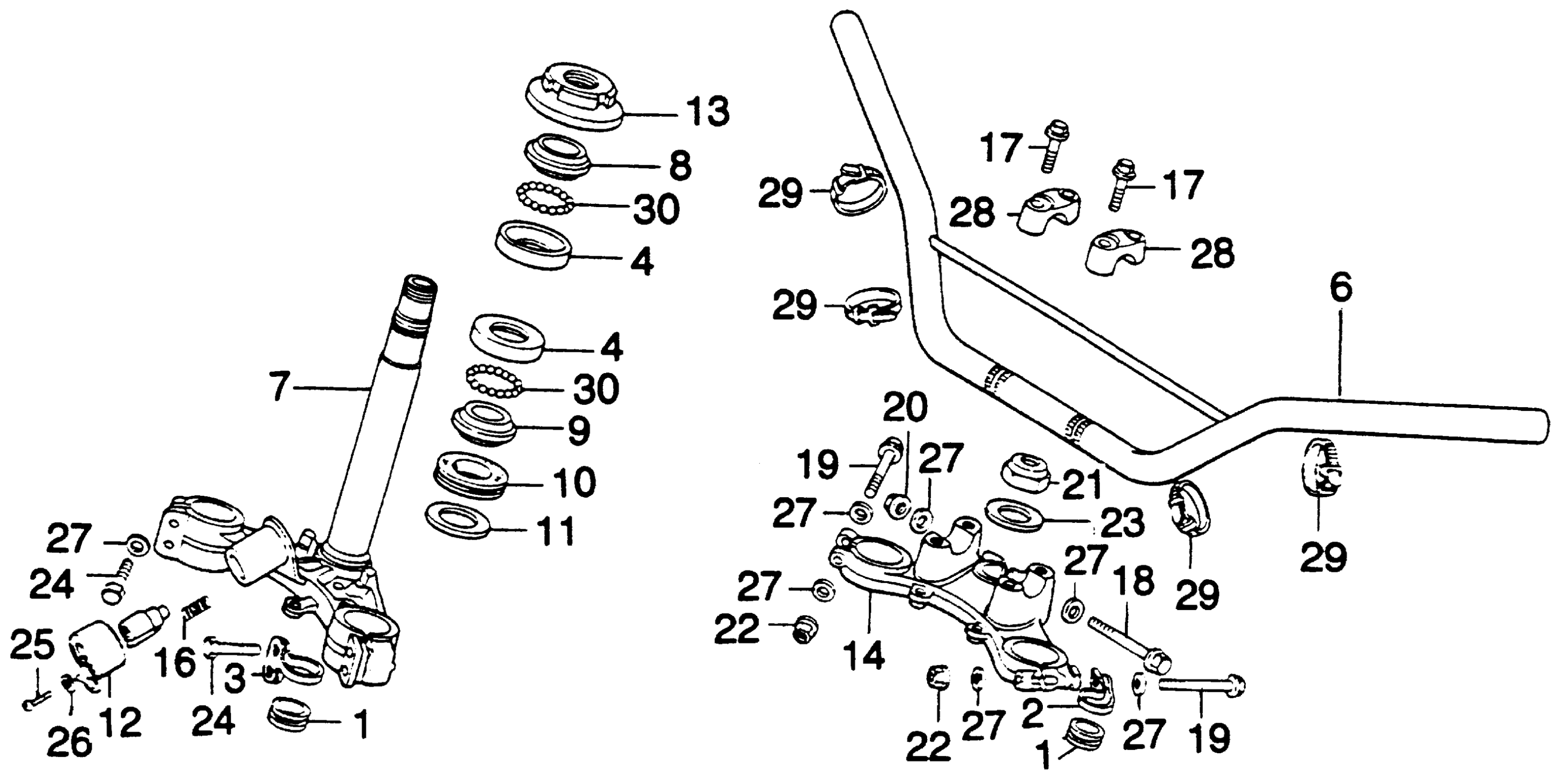

Honda MT250A MOTORCYCLE, JPN, VIN# MT250-1000001 STEERING STEM + TOP BRIDGE + HANDLEBAR Diagram

#

Description
Price

1

GUIDE, CABLE (INNER)

45466-329-000

$2.95

2

GUIDE A, FR. BRAKE CABLE (NOT AVAILABLE)

45467-329-000

Unavailable

3

GUIDE B, FR. BRAKE CABLE

45468-329-000

Unavailable

4

RACE, STEERING TOP BALL This part replaces 50301-200-315.

50301-268-010

$22.12

4

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

4

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

4

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

4

RACE, STEERING TOP BALL This part replaces 50302-200-000.

50301-268-010

$22.12

4

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$22.12

6

HANDLEBAR (NOT AVAILABLE)

53100-358-770

Unavailable

7

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-358-000B

Unavailable

8

RACE, STEERING CONE (UPPER) (NOT AVAILABLE)

53211-200-305

Unavailable

9

RACE, STEERING CONE (LOWER)

53212-200-305

$19.80

10

DUST SEAL, STEERING HEAD

53214-200-000

$2.92

11

WASHER, STEERING HEAD DUST SEAL (NOT AVAILABLE)

53215-200-006

Unavailable

12

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-317-000

Unavailable

13

THREAD, STEERING HEAD TOP

53220-303-000

Unavailable

14

BRIDGE, FORK TOP (NOT AVAILABLE) | Use up to Frame SN 2013852 This part replaces 53230-358-000.

53230-358-305

Unavailable

16

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

17

BOLT, FLANGE (8X36)

90111-362-000

$4.80

18

BOLT, HEX. (8X74) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08074-0B.

92101-08074-0B

Unavailable

19

BOLT, HEX. (8X56) | Use up to Frame SN 2013852 This part replaces 92000-08056-0B.

92101-08056-0B

Unavailable

20

NUT, HEX. (8MM)

94001-08020-0S

$1.49

21

NUT, STEERING STEM (NOT AVAILABLE)

90304-358-000

Unavailable

22

NUT, HEX. (8MM) | Use up to Frame SN 2013852

94001-08020-0S

$1.49

23

WASHER, STEERING STEM (NOT AVAILABLE)

90503-222-000

Unavailable

24

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

24

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

24

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

25

SCREW, PAN (3X8)

93500-03008-0A

$1.49

26

WASHER, PLAIN (3MM)

94101-03000

$1.49

27

WASHER, FLAT (8MM) | Use from Frame SN 2013853

94102-08200

$1.49

28

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

29

BAND B1, CABLE

95014-62100

$1.64

30

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
