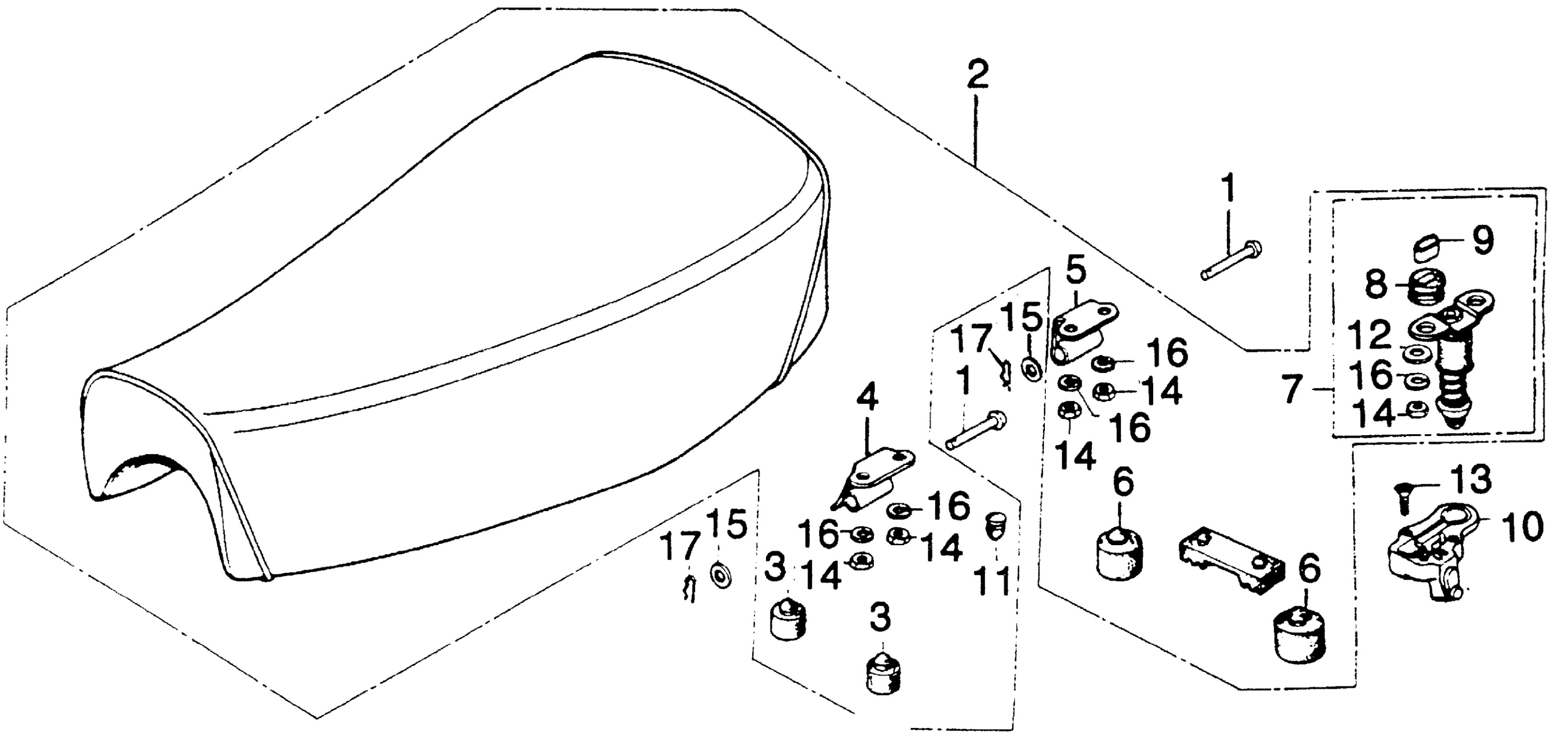

Honda MT250A MOTORCYCLE, JPN, VIN# MT250-1000001 SEAT Diagram

#

Description
Price

1

BAR, SEAT HINGE (NOT AVAILABLE)

77103-313-000

Unavailable

2

SEAT ASSY. (NOT AVAILABLE)

77200-358-670

Unavailable

3

RUBBER, SEAT CUSHION

77201-074-000

$4.12

4

HINGE, SEAT (NOT AVAILABLE)

77201-358-000

Unavailable

5

HINGE, SEAT (NOT AVAILABLE)

77202-358-000

Unavailable

6

RUBBER A, SEAT SETTING

77204-286-020

$10.02

7

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

7

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

7

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

8

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

8

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

8

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

9

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

9

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

9

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

10

LOCK ASSY., SEAT (HONDALOCK)

77230-107-711

Unavailable

10

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-347-003.

77230-107-711

Unavailable

11

PLUG, CONE This part replaces 80102-283-000.

90899-283-000

$2.56

11

PLUG, CONE

90899-283-000

$2.56

12

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

12

WASHER, PLAIN (6MM)

94103-06800

$1.49

13

SCREW, FLAT (6X12)

93600-06012-0G

$1.49

13

SCREW, FLAT (6X12) This part replaces 93600-06012-07.

93600-06012-0G

$1.49

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49

16

WASHER, SPRING (6MM)

94111-06000

$1.49

17

PIN, LOCK (6MM)

94251-06000

$1.49
