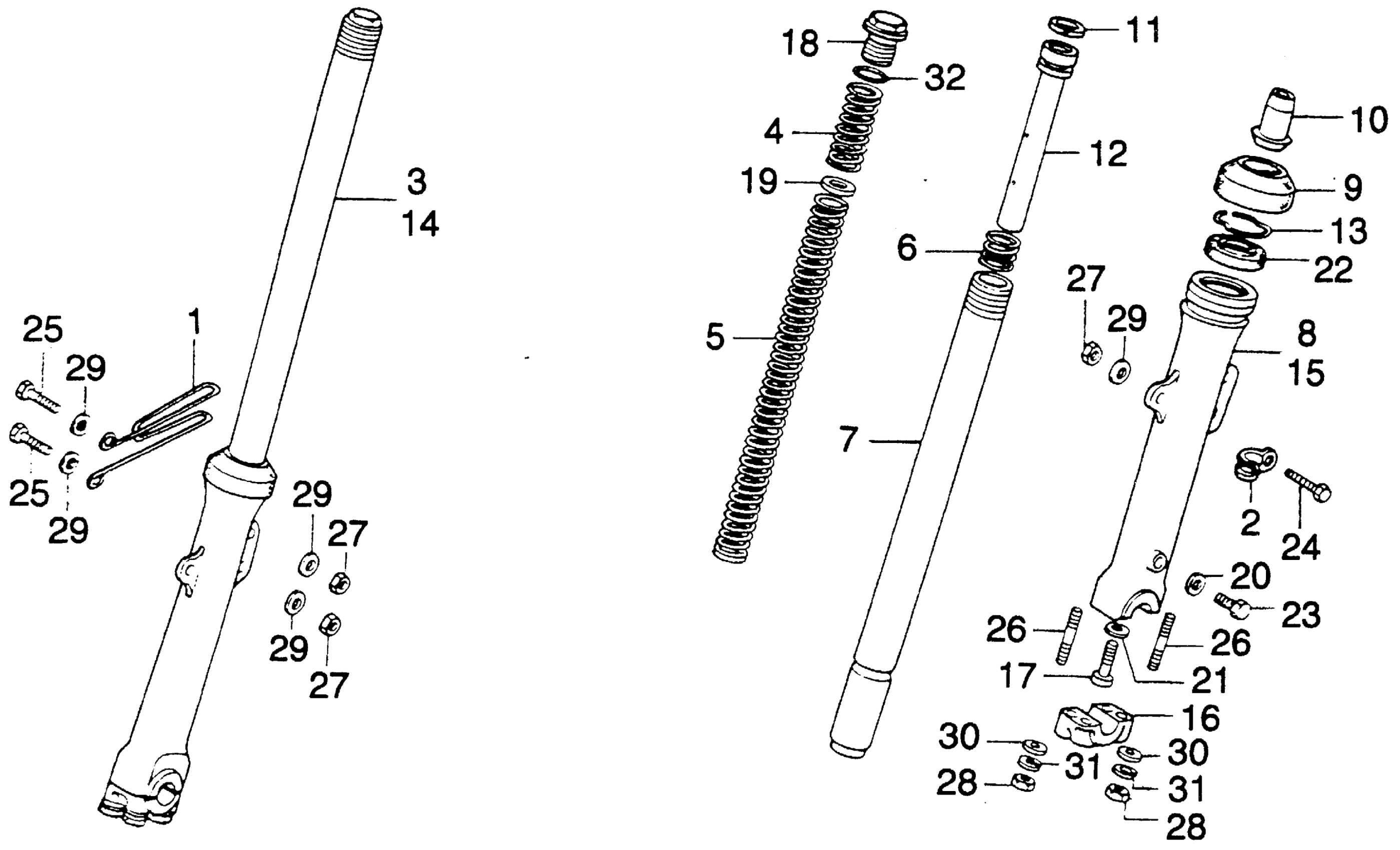

Honda MT250A MOTORCYCLE, JPN, VIN# MT250-1000001 FRONT FORK Diagram

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-329-000

Unavailable

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-329-010

Unavailable

FORK ASSY., R. FR. (NOT AVAILABLE) This part replaces 51400-358-000.

51400-358-010

Unavailable

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-358-010

Unavailable

SPRING A, FR. FORK (NOT AVAILABLE)

51401-358-000

Unavailable

SPRING B, FR. FORK (NOT AVAILABLE)

51402-358-000

Unavailable

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

PIPE, FORK (NOT AVAILABLE)

51420-356-000

Unavailable

CASE, R. FORK (LOWER) (NOT AVAILABLE)

51421-340-300

Unavailable

DUST SEAL, FR. FORK This part replaces 51425-340-000.

91254-435-003

$15.40

DUST SEAL, FR. FORK

91254-435-003

$15.40

PIECE, OIL LOCK (NOT AVAILABLE)

51432-357-000

Unavailable

RING, PISTON

51437-329-010

$7.14

PIPE (LOWER) (NOT AVAILABLE)

51440-358-000

Unavailable

CIRCLIP (INNER) (48MM) (NOT AVAILABLE)

94521-48000

Unavailable

FORK ASSY., L. FR. (NOT AVAILABLE) | Use up to Frame SN 1033703

51500-358-000

Unavailable

FORK ASSY., L. FR. | Use from Frame SN 1033704

51500-358-010

Unavailable

CASE, L. FR. FORK (LOWER)

51521-356-300

Unavailable

HOLDER, FR. AXLE (NOT AVAILABLE)

51634-340-000

Unavailable

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

BOLT, FR. FORK

90123-300-000

$47.61

WASHER (16MM)

90504-358-000

Unavailable

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

OIL SEAL (35X48X11) This part replaces 91255-300-033.

91255-KBH-003

$13.24

OIL SEAL (35X48X11) This part replaces 91255-323-013.

91255-KBH-003

$13.24

OIL SEAL (35X48X11) This part replaces 91255-434-003.

91255-KBH-003

$13.24

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

BOLT, STUD (8X50) This part replaces 92700-08050-30.

92900-08028-3B

$1.59

BOLT, STUD (8X50)

92900-08028-3B

$1.59

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

NUT, HEX. (8MM)

94030-08000

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

O-RING (23X2.8)

94608-50000

$1.49
