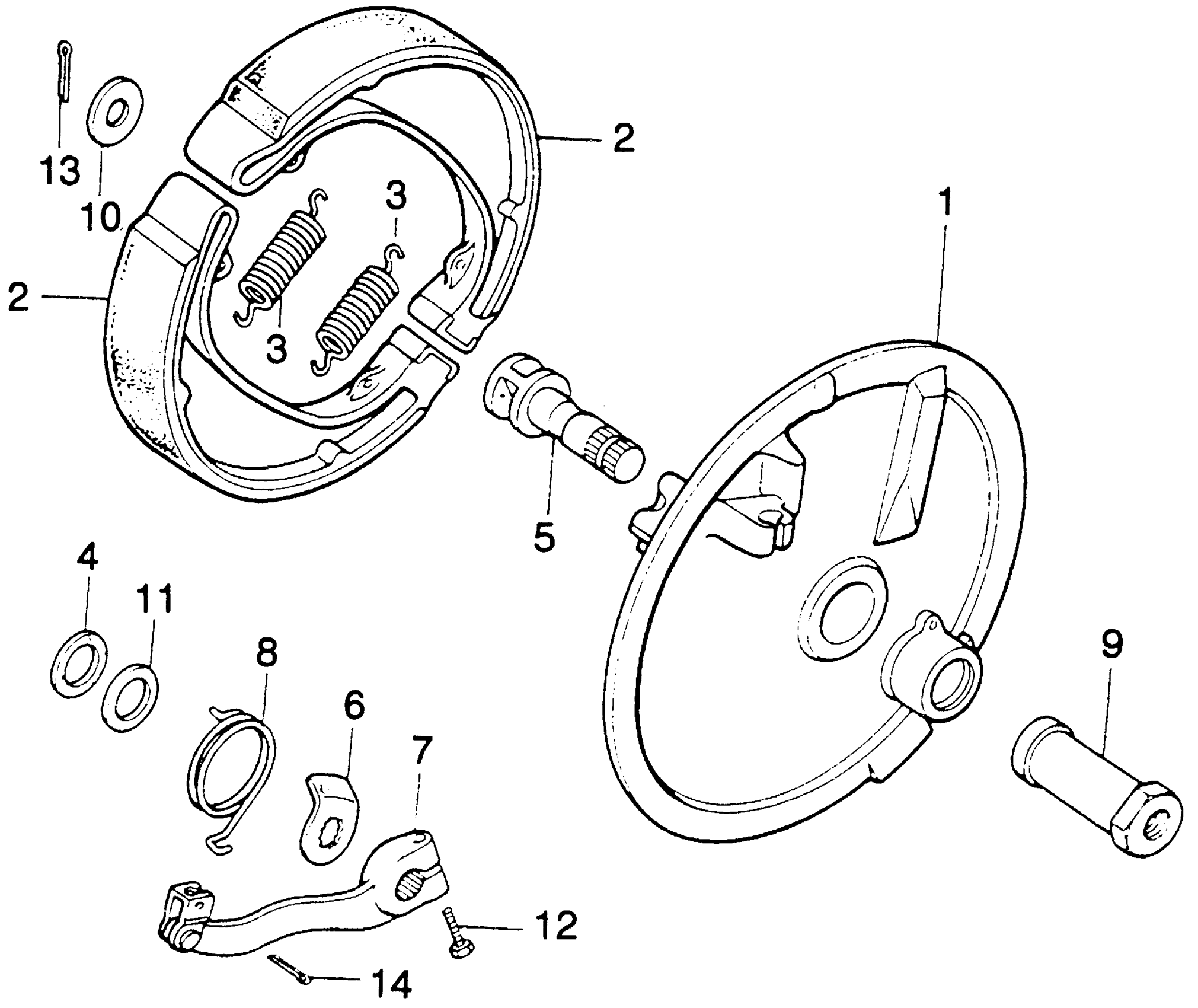

Honda MT250A MOTORCYCLE, JPN, VIN# MT250-1000001 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06450-KBG-000.

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE (ASK) This part replaces 06450-KC2-681.

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-329-670.

06450-KC2-680

$42.29

1

PANEL, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1030922

45100-356-000

Unavailable

1

PANEL, FR. BRAKE | Use from Frame SN 1030923

45100-329-770

Unavailable

2

SHOE, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45120-329-670

Unavailable

3

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

4

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

5

CAM, RR. BRAKE | Use up to Frame SN 1030922

43141-286-010

Unavailable

5

CAM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1030923

45141-329-770

Unavailable

6

INDICATOR, FR. BRAKE (NOT AVAILABLE)

45145-329-770

Unavailable

7

ARM, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1030922

45410-329-010

Unavailable

7

ARM, FR. BRAKE | Use from Frame SN 1030923

45410-329-770

Unavailable

8

SPRING, FR. BRAKE ARM RETURN (NOT AVAILABLE)

45435-329-000

Unavailable

9

NUT, FR. WHEEL AXLE (NOT AVAILABLE)

90305-329-000

Unavailable

10

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

11

WASHER (14MM)

90549-121-000

Unavailable

12

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

12

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

13

PIN, COTTER (2.0X15)

94201-20150

$1.49

14

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

14

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

14

PIN, COTTER (2.0X22)

94201-20220

$1.49

14

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

14

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

14

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

14

PIN, COTTER (2.0X35)

94201-20350

$1.49

14

PIN, COTTER (2.0X22)

94201-29220

$1.49
