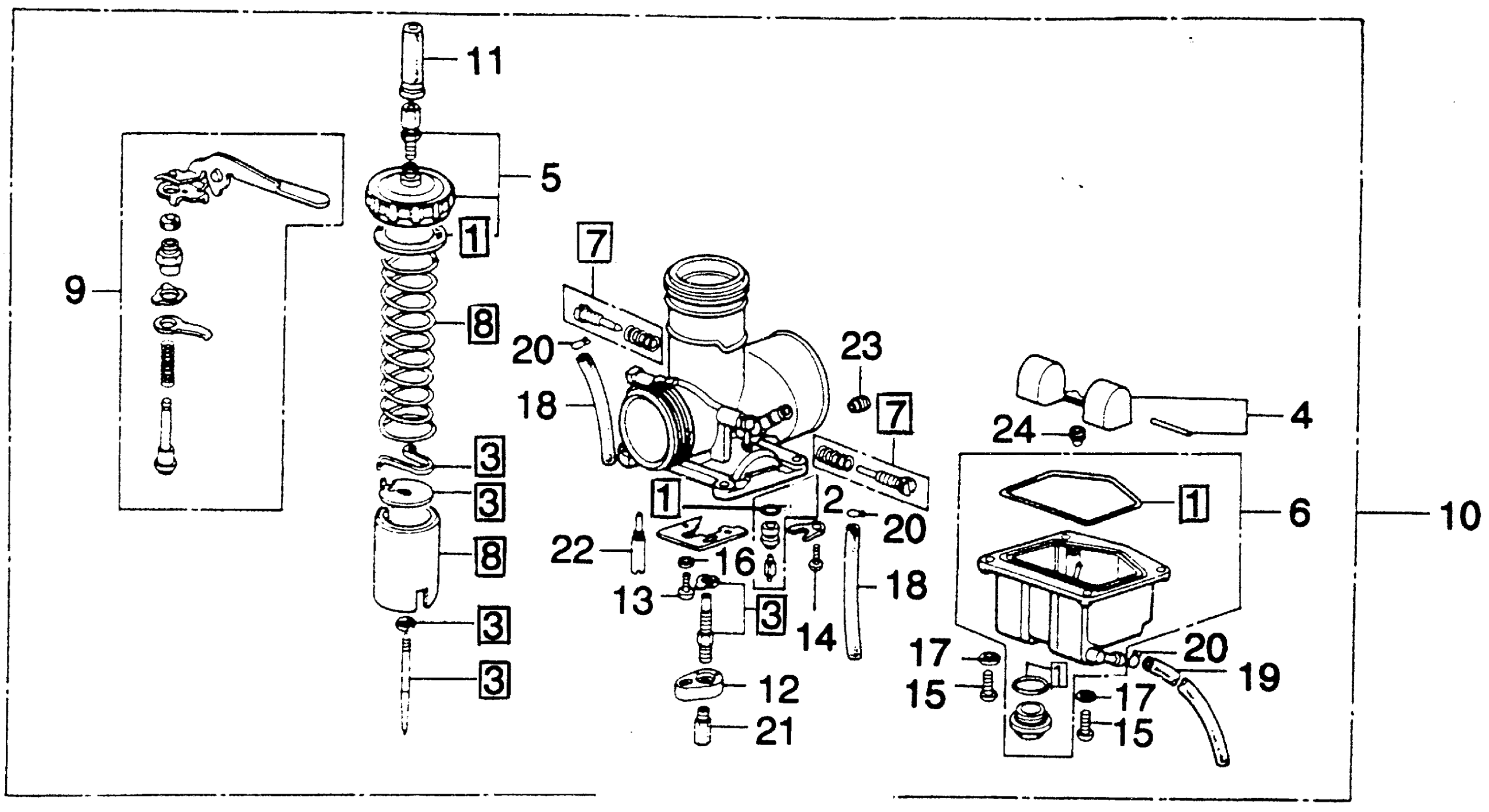

Honda MT250A MOTORCYCLE, JPN, VIN# MT250-1000001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET | Use up to Engine SN 004A A This part replaces 16010-360-004.

16010-360-305

Unavailable

1

GASKET SET | Use up to Engine SN 004A A This part replaces 16010-360-014.

16010-360-305

Unavailable

1

GASKET SET | Use from Engine SN 004B A This part replaces 16010-360-014.

16010-360-305

Unavailable

1

GASKET SET | Use up to Engine SN 004A A

16010-360-305

Unavailable

1

GASKET SET | Use from Engine SN 004B A

16010-360-305

Unavailable

2

VALVE SET, FLOAT | Use up to Engine SN 004B A

16011-356-004

Unavailable

2

VALVE SET, FLOAT | Use from Engine SN 004C A

16011-356-004

Unavailable

2

VALVE SET, FLOAT | Use from Engine SN 004C A This part replaces 16011-360-700.

16011-356-004

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE) | Use up to Engine SN 004B A

16012-358-024

Unavailable

3

NEEDLE SET, JET | Use from Engine SN 004C A

16012-358-034

Unavailable

4

FLOAT SET

16013-360-004

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-360-700

Unavailable

6

CHAMBER SET, FLOAT | Use up to Engine SN 004A A This part replaces 16015-358-004.

16015-361-014

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE) | Use from Engine SN 004C A

16015-360-810

Unavailable

6

CHAMBER SET, FLOAT | Use up to Engine SN 004A A

16015-361-014

Unavailable

6

CHAMBER SET, FLOAT | Use from Engine SN 004B A to 004B A

16015-361-014

Unavailable

7

SCREW SET (NOT AVAILABLE) | Use from Engine SN 004B A

16016-358-004

Unavailable

7

SCREW SET (NOT AVAILABLE) | Use up to Engine SN 004A A This part replaces 16016-360-004.

16016-400-004

Unavailable

8

VALVE SET, THROTTLE (NOT AVAILABLE) | Use up to Engine SN 004B A

16022-358-004

Unavailable

8

VALVE SET, THROTTLE | Use from Engine SN 004C A

16022-360-004

Unavailable

9

VALVE SET, STARTER (NOT AVAILABLE) | Use up to Engine SN 004B A

16046-360-004

Unavailable

9

VALVE SET, STARTER | Use from Engine SN 004C A

16046-361-670

Unavailable

10

CARBURETOR ASSY. (NOT AVAILABLE) | Use up to Engine SN 1000037 This part replaces 16100-358-014.

16100-358-024

Unavailable

10

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 1000038

16100-358-024

Unavailable

11

CAP, RUBBER (NOT AVAILABLE)

16118-360-004

Unavailable

12

HOLDER, JET (NOT AVAILABLE) | Use up to Engine SN 004B A

16168-360-004

Unavailable

12

HOLDER, JET (NOT AVAILABLE) | Use from Engine SN 004C A

16168-360-700

Unavailable

13

SCREW, PAN (3X6)

93500-03006-0A

$1.49

14

SCREW, PAN (4X10)

93500-04010-0A

$1.49

15

SCREW, PAN (4X14)

93500-04014-0A

$1.49

16

WASHER, SPRING (3MM)

94111-03000

$1.49

17

WASHER, SPRING (4MM)

94111-04000

$1.49

18

BULK HOSE, FUEL (3.5X3000) (3.5X60) | Use from Engine SN 004C A

95001-35003-60M

$20.85

18

BULK HOSE, FUEL (3.5X3000) (3.5X480) | Use up to Engine SN 004B A

95001-35003-60M

$20.85

19

BULK HOSE, FUEL (3.5X3000) (3.5X330) | Use from Engine SN 004C A

95001-35003-60M

$20.85

19

BULK HOSE, FUEL (3.5X3000) (3.5X420) | Use up to Engine SN 004B A

95001-35003-60M

$20.85

20

CLIP, TUBE (B7)

95002-02070

$1.80

21

JET, MAIN (#115) | Use from Engine SN 004C A

99101-357-1150

$18.70

21

JET, MAIN (#122) | Use up to Engine SN 004B A

99101-357-1220

$17.99

22

JET, SLOW (#60) (NOT AVAILABLE) | Use up to Engine SN 004B A

99103-357-0600

Unavailable

22

JET, SLOW (#58) | Use from Engine SN 004C A

99103-358-0580

Unavailable

22

JET, SLOW (#52) (NOT AVAILABLE)

99103-358-0520

Unavailable

22

JET, SLOW (#62) (NOT AVAILABLE)

99103-358-0620

Unavailable

23

JET, AIR (#160) (NOT AVAILABLE)

99105-357-1600

Unavailable

23

JET, AIR (#180) (NOT AVAILABLE)

99105-357-1800

Unavailable

23

JET, AIR (#200)

99105-357-2000

Unavailable

23

JET, AIR (#220) (NOT AVAILABLE)

99105-357-2200

Unavailable

23

JET, AIR (#240) (NOT AVAILABLE)

99105-357-2400

Unavailable

24

JET, AIR (#90)

99164-601-0900

Unavailable
