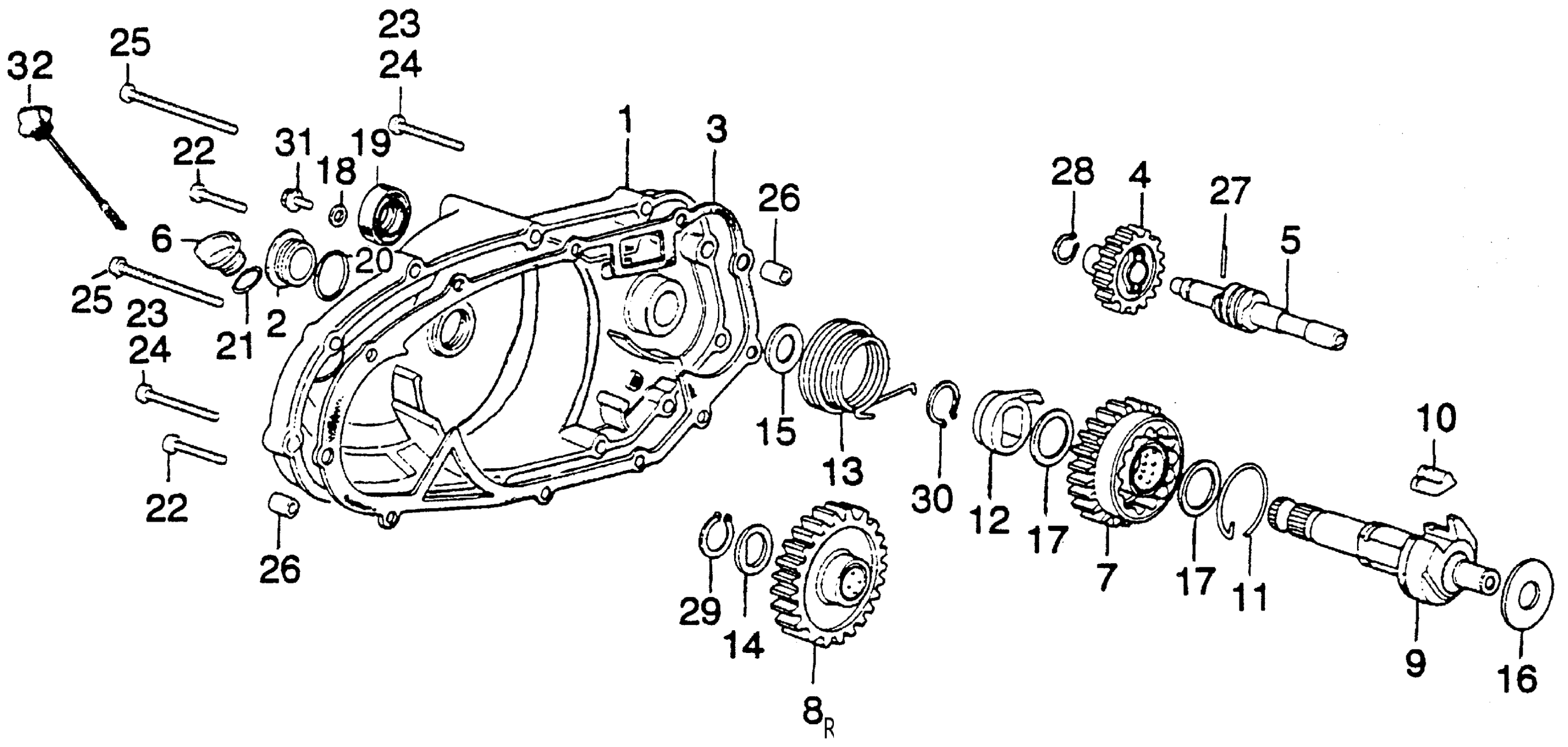

Honda MT250A (76) ELSINORE, JPN, VIN# MT250-3000001 RIGHT CRANKCASE COVER + KICK STARTER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11331-381-000

Unavailable

2

CAP, CLUTCH ADJUST (NOT AVAILABLE)

11335-358-000

Unavailable

3

GASKET, R. CRANKCASE COVER This part replaces 11394-357-040.

11394-357-306

Unavailable

3

GASKET, R. CRANKCASE COVER

11394-357-306

Unavailable

4

GEAR, OIL PUMP DRIVE (NOT AVAILABLE)

15451-358-000

Unavailable

5

SHAFT, TACHOMETER DRIVE

15453-358-000

Unavailable

6

CAP, OIL This part replaces 15611-381-000.

25611-733-000

$6.34

7

PINION, KICK STARTER (NOT AVAILABLE)

28210-357-020

Unavailable

8

GEAR, STARTER IDLE (NOT AVAILABLE)

28230-357-020

Unavailable

9

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-358-000

Unavailable

10

PAWL, KICK STARTER (NOT AVAILABLE)

28255-357-010

Unavailable

11

SPRING, PAWL SETTING (NOT AVAILABLE)

28258-357-020

Unavailable

12

RETAINER, SPRING

28259-357-010

Unavailable

13

SPRING, KICK STARTER (NOT AVAILABLE)

28261-357-030

Unavailable

14

WASHER, THRUST (17MM) (NOT AVAILABLE)

90433-357-000

Unavailable

15

WASHER (18MM)

90451-357-000

Unavailable

16

WASHER (16MM) (NOT AVAILABLE)

90454-329-000

Unavailable

17

WASHER, THRUST (22MM) (NOT AVAILABLE)

90456-703-000

Unavailable

18

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

19

OIL SEAL (18X29X7)

91204-286-003

$4.31

20

O-RING (27.4X2.4) (ARAI)

91302-567-003

$7.96

20

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

21

O-RING (16MM)

91303-800-000

$2.23

21

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.23

22

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

22

SCREW, PAN (6X28)

93500-06028-0A

$1.49

23

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

23

SCREW, PAN (6X35)

93500-06035-0A

$1.49

25

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

25

SCREW, PAN (6X65)

93500-06065-0A

$1.53

26

PIN A, DOWEL (10X14)

94301-10140

$2.28

27

PIN, SPRING (3X20)

94305-30202

Unavailable

28

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

29

CIRCLIP (OUTER) (17MM)

94510-17000

$1.49

30

CIRCLIP (OUTER) (22MM)

94510-22000

$1.49

31

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

31

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
