- MT250A (76) ELSINORE, JPN, VIN# MT250-3000001
LEFT CRANKCASE COVER + ALTERNATOR + OIL PUMP

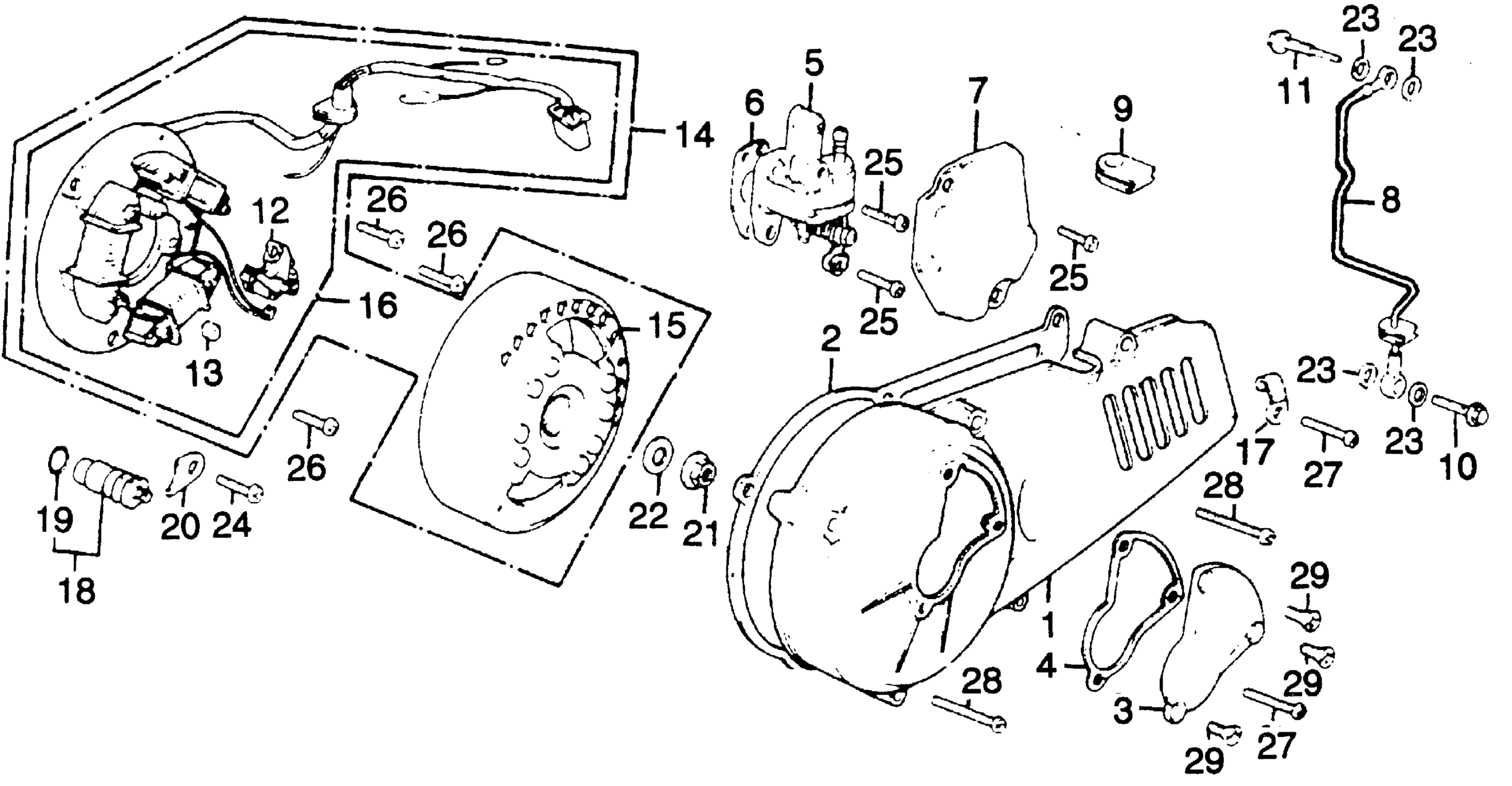

Honda MT250A (76) ELSINORE, JPN, VIN# MT250-3000001 LEFT CRANKCASE COVER + ALTERNATOR + OIL PUMP Diagram
#
Description
Price
1
COVER, L. CRANKCASE (NOT AVAILABLE)
11341-358-670
Unavailable
2
GASKET, L. This part replaces 11395-357-020.
11395-357-306
Unavailable
3
COVER, ALTERNATOR
11431-358-670
Unavailable
4
GASKET This part replaces 11691-358-000.
11691-358-405
Unavailable
5
PUMP ASSY., OIL (NOT AVAILABLE)
15100-358-003
Unavailable
6
GASKET, OIL PUMP This part replaces 15163-122-000.
15163-122-306
Unavailable
7
COVER, OIL PUMP CASE (NOT AVAILABLE)
15461-358-670
Unavailable
8
HOSE, OUTLET (NOT AVAILABLE)
15510-358-010
Unavailable
9
GROMMET, IN. (NOT AVAILABLE)
15531-358-000
Unavailable
10
BOLT, ONE-WAY (NOT AVAILABLE)
15542-358-000
Unavailable
11
BOLT, ONE-WAY IN. PIPE (NOT AVAILABLE)
15543-358-000
Unavailable
12
POINTS ASSY.
30200-358-004
Unavailable
13
FELT, OIL (NOT AVAILABLE)
30205-131-004
Unavailable
14
ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE)
31100-358-004
Unavailable
15
FLYWHEEL (DENSO) (NOT AVAILABLE)
31121-358-004
Unavailable
16
STATOR ASSY. (DENSO) (NOT AVAILABLE)
31141-358-004
Unavailable
18
SWITCH, NEUTRAL (NOT AVAILABLE)
35750-333-023
Unavailable
19
O-RING (NOT AVAILABLE)
35751-333-003
Unavailable
20
PLATE, NEUTRAL SWITCH FIXING (NOT AVAILABLE)
35755-333-010
Unavailable
21
NUT, SPECIAL (12MM) (NOT AVAILABLE)
90201-358-000
Unavailable
22
WASHER, ROTOR SETTING (NOT AVAILABLE)
90427-358-000
Unavailable
