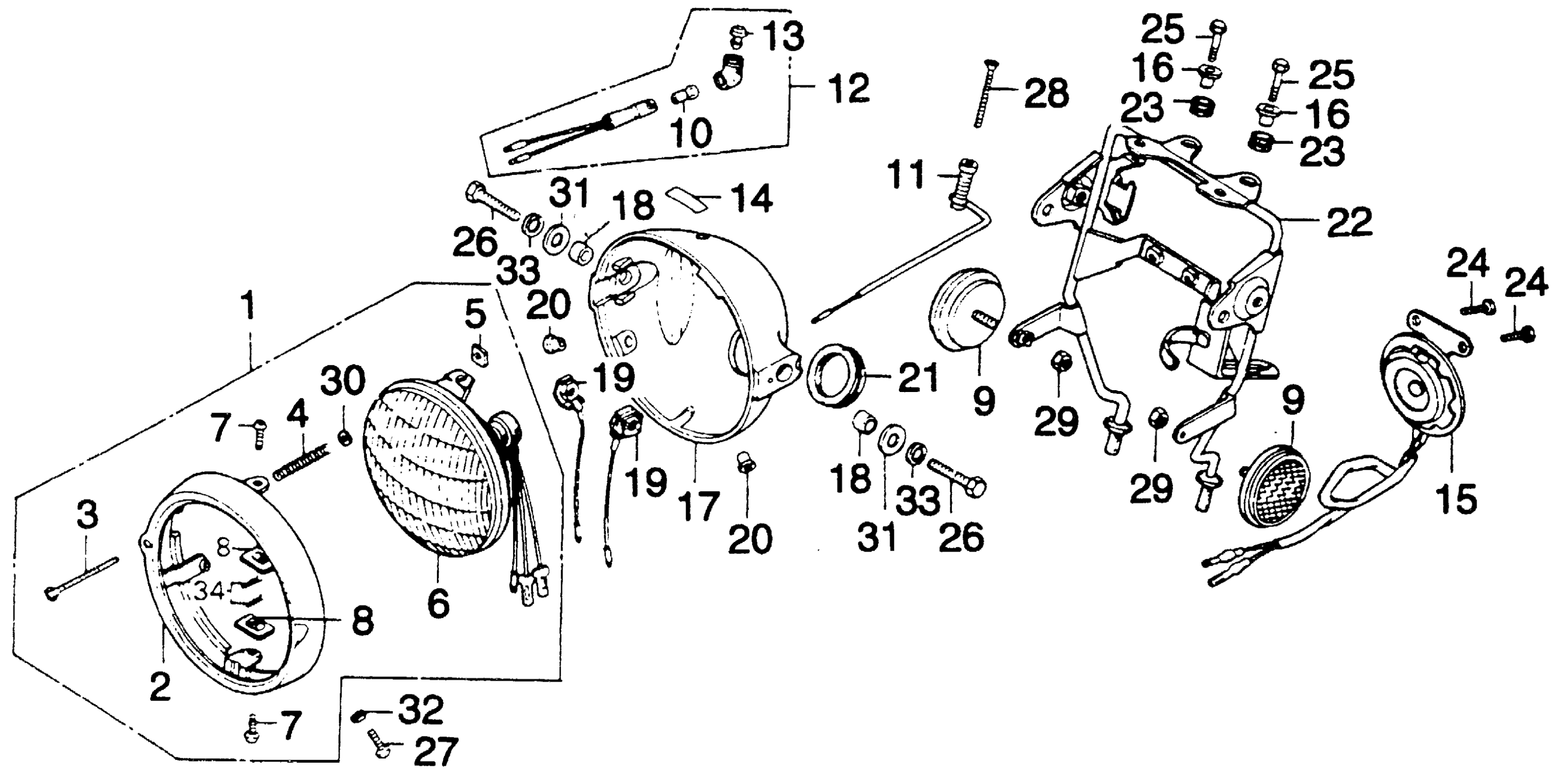

Honda MT250A (76) ELSINORE, JPN, VIN# MT250-3000001 HEADLIGHT + HORN Diagram

#

Description
Price

1

HEADLIGHT ASSY. (6V 35/25W) (NOT AVAILABLE)

33100-329-671

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE)

33101-329-671

Unavailable

3

SCREW, HEADLIGHT BEAM ADJUSTING

33103-329-003

Unavailable

3

SCREW, HEADLIGHT BEAM ADJUSTING This part replaces 33103-329-671.

33103-329-003

Unavailable

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-200-023

$3.01

4

SPRING, HEADLIGHT BEAM ADJUSTING This part replaces 33107-283-023.

33107-200-023

$3.01

5

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

6

HEADLIGHT UNIT

33120-329-671

Unavailable

7

SCREW, UNIT HOLDER (NOT AVAILABLE)

33125-329-003

Unavailable

8

NUT, UNIT HOLDER

33128-200-033

Unavailable

9

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

10

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

11

RESISTOR (NOT AVAILABLE)

35400-329-671

Unavailable

12

LIGHT ASSY., BEAM PILOT (IMASEN) This part replaces 37550-329-005.

37550-329-015

Unavailable

12

LIGHT ASSY., BEAM PILOT (IMASEN)

37550-329-015

Unavailable

13

LENS, BEAM PILOT (IMASEN) (NOT AVAILABLE) This part replaces 37551-329-005.

37551-329-015

Unavailable

13

LENS, BEAM PILOT (IMASEN) (NOT AVAILABLE)

37551-329-015

Unavailable

14

LABEL, BEAM PILOT LAMP

37555-370-740

Unavailable

15

HORN ASSY. (NOT AVAILABLE)

38100-358-000

Unavailable

16

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

16

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

16

COLLAR, RR. FENDER

61105-428-000

Unavailable

17

CASE, HEADLIGHT *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

61301-336-000SG

Unavailable

18

COLLAR, HEADLIGHT CASE (NOT AVAILABLE)

61302-292-000

Unavailable

19

WASHER, HEADLIGHT CASE

61303-336-000

Unavailable

20

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

22

BRACKET, HEADLIGHT CASE (NOT AVAILABLE)

61311-358-000

Unavailable

23

RUBBER, SETTING (22MM)

61315-358-000

$5.34

24

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

25

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

25

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

26

BOLT, HEX. (10X25) This part replaces 92000-10025-0B.

92101-10025-0B

Unavailable

27

SCREW, PAN (5X16)

93500-05016-0B

$1.49

28

SCREW, FLAT (5X55) (NOT AVAILABLE)

93600-05055-0A

Unavailable

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

30

WASHER, PLAIN (4MM)

94101-04000

$1.49

31

WASHER, PLAIN (10MM)

94101-10000

$1.49

32

WASHER, SPRING (5MM)

94111-05000

$1.49

33

WASHER, SPRING (8MM)

94111-10000

$1.49

34

PIN, LOCK (5MM)

94251-05000

$1.49
