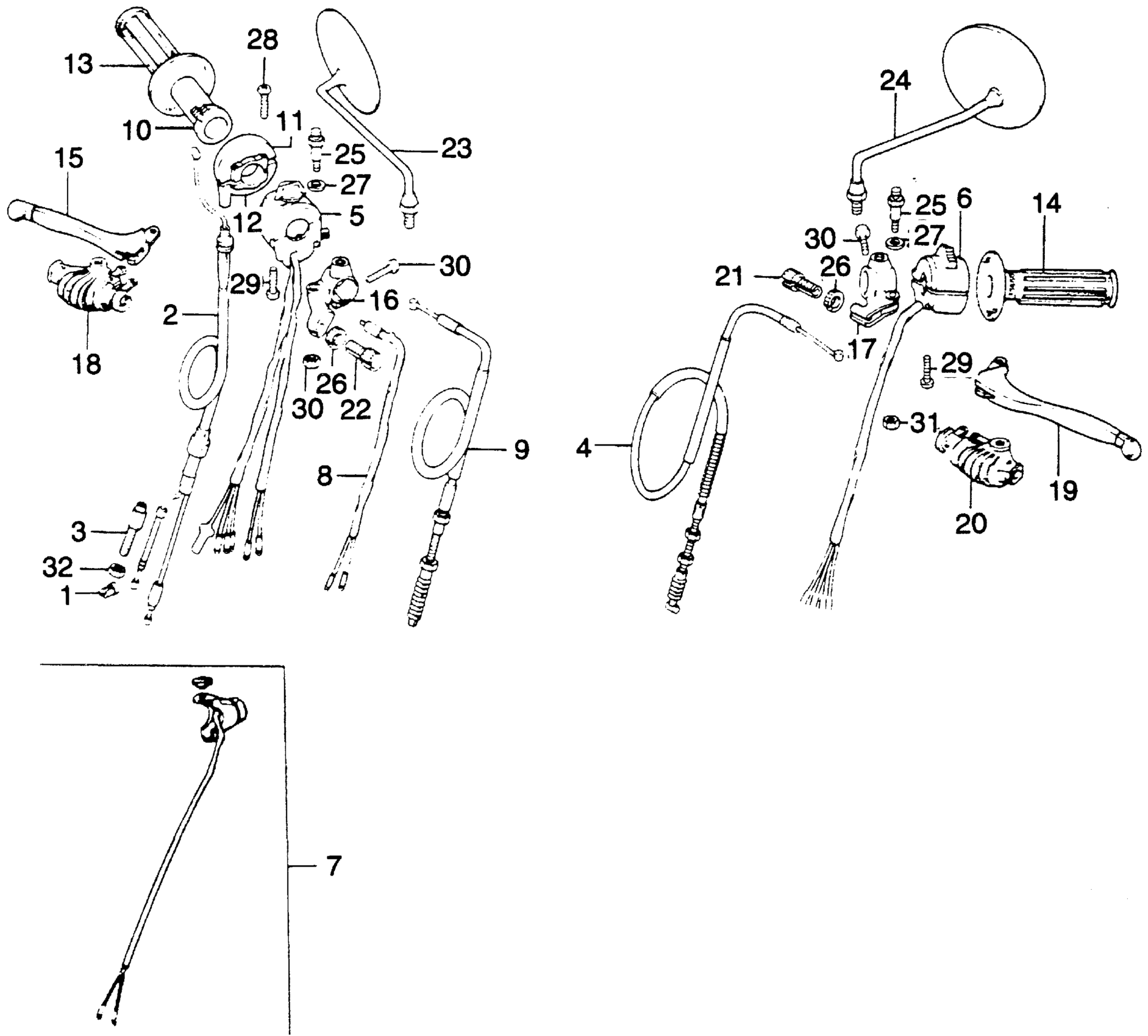

Honda MT250A (76) ELSINORE, JPN, VIN# MT250-3000001 HANDLE GRIP + CABLE Diagram

#

Description
Price

1

PIN, CONTROL LEVER (NOT AVAILABLE)

15173-358-000

Unavailable

2

CABLE, THROTTLE

17910-358-010

Unavailable

3

BOLT, THROTTLE CABLE (NOT AVAILABLE)

17915-358-000

Unavailable

4

CABLE, CLUTCH

22870-358-000

Unavailable

5

SWITCH ASSY., LIGHTING & STOP

35150-365-671

Unavailable

6

SWITCH, TURN SIGNAL & DIMMER (TOYO)

35200-358-003

Unavailable

8

SWITCH ASSY., FR. STOP This part replaces 35330-391-690.

35340-329-003

$17.46

8

SWITCH ASSY., FR. STOP This part replaces 35340-147-000.

35340-329-003

$17.46

8

SWITCH ASSY., FR. STOP This part replaces 35340-329-000.

35340-329-003

$17.46

8

SWITCH ASSY., FR. STOP

35340-329-003

$17.46

8

SWITCH ASSY., FR. STOP This part replaces 35340-329-010.

35340-329-003

$17.46

9

CABLE, FR. BRAKE

45450-329-010

Unavailable

10

PIPE, THROTTLE GRIP This part replaces 53141-355-000.

53141-355-010

Unavailable

10

PIPE, THROTTLE GRIP

53141-355-010

Unavailable

11

CASE (UPPER)

53143-355-000

Unavailable

12

CASE (LOWER)

53144-355-000

Unavailable

13

GRIP, R. HANDLEBAR

53165-116-670

$12.17

14

GRIP, L. HANDLEBAR

53166-116-670

$12.19

15

LEVER, R. HANDLEBAR This part replaces 53170-329-010.

53175-KY0-980

$31.02

15

LEVER, R. HANDLEBAR This part replaces 53175-329-000.

53175-KY0-980

$31.02

15

LEVER, R. HANDLEBAR This part replaces 53175-369-700.

53175-KY0-980

$31.02

15

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

16

BRACKET, R. HANDLEBAR

53171-312-003

$52.94

17

BRACKET, L. HANDLEBAR

53172-310-010

$56.00

18

COVER, R. CONTROL LEVER

53176-329-000

$12.41

19

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$28.35

19

LEVER, L. HANDLE

53178-369-700

$28.35

19

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$28.35

20

COVER, L. CONTROL LEVER

53179-329-000

$15.07

21

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

22

BOLT, CLUTCH CABLE ADJUSTING

53192-312-000

$7.91

23

MIRROR, R. This part replaces 88110-074-000.

88110-329-730

Unavailable

23

MIRROR, R.

88110-329-730

Unavailable

24

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-074-000.

88220-329-730

Unavailable

24

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-329-730.

88220-329-730

Unavailable

25

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.75

26

NUT, FIXING

90321-315-670

$7.31

26

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

28

SCREW, PAN (5X20)

93500-05020-0A

$1.49

29

SCREW, PAN (5X28)

93500-05028-0A

$1.49

30

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

30

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

30

SCREW, PAN (6X28)

93500-06028-0A

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM)

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (8MM)

94002-08000-0S

$1.49
