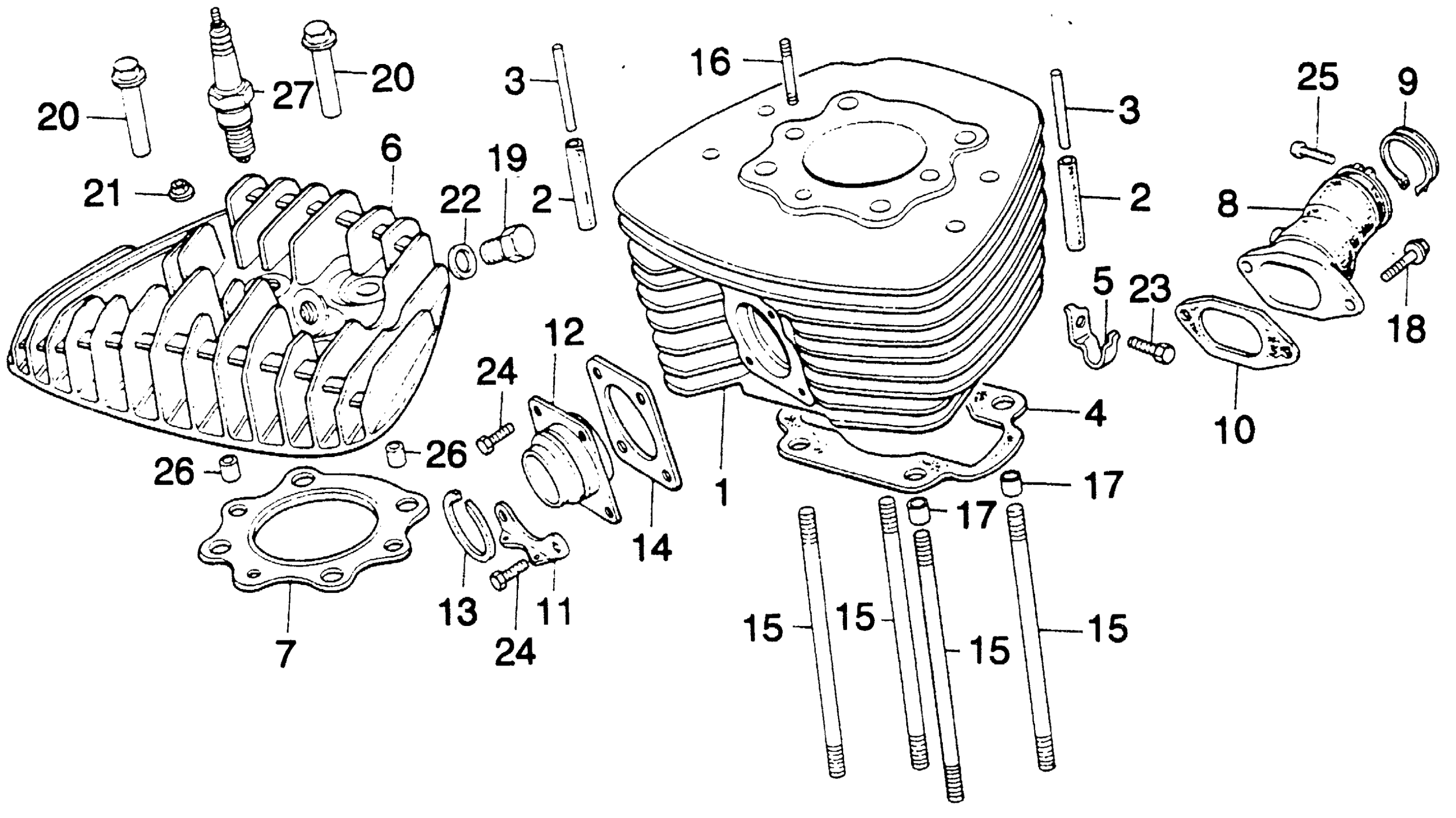

Honda MT250A (76) ELSINORE, JPN, VIN# MT250-3000001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER

12100-358-670

Unavailable

2

RUBBER, INSERT (NOT AVAILABLE)

12112-358-000

Unavailable

3

BAR, INSERT (NOT AVAILABLE)

12122-358-000

Unavailable

4

GASKET, CYLINDER This part replaces 12191-357-020.

12191-357-306

$8.30

4

GASKET, CYLINDER

12191-357-306

$8.30

5

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

12193-358-000

Unavailable

6

CYLINDER HEAD (NOT AVAILABLE)

12200-358-670

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-358-000.

12251-358-306

Unavailable

7

GASKET, CYLINDER HEAD

12251-358-306

Unavailable

7

GASKET HEAD This part replaces 12253-358-000.

12253-358-405

Unavailable

8

PIPE, INLET

16221-358-000

Unavailable

9

BAND, INSULATOR (NOT AVAILABLE)

16223-358-000

Unavailable

10

GASKET, INLET This part replaces 16229-358-000.

16229-358-306

$2.93

10

GASKET, INLET

16229-358-306

$2.93

11

STAY, EX. PIPE

18331-357-000

Unavailable

12

JOINT, EX. PIPE (NOT AVAILABLE)

18351-358-010

Unavailable

13

RING, EX. PIPE

18358-358-000

Unavailable

14

GASKET, EX. PIPE JOINT

18359-357-000

Unavailable

15

BOLT, CYLINDER STUD (8X126.5) (NOT AVAILABLE)

90031-357-010

Unavailable

16

BOLT, STUD (6X55)

90034-357-010

Unavailable

17

PIN, DOWEL (12X16)

90036-357-000

$3.69

18

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

19

BOLT, SEALING (14MM)

90061-358-000

Unavailable

20

NUT, SPECIAL (8MM)

90230-357-010

Unavailable

21

NUT, FLANGE (6MM) (NOT AVAILABLE)

90233-357-000

Unavailable

22

WASHER, SEALING (14MM) (NOT AVAILABLE)

90445-358-000

Unavailable

23

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

23

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

24

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

24

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

24

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

24

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

25

SCREW, PAN (4X16)

93500-04016-0G

$1.49

26

PIN A, DOWEL (10X14)

94301-10140

$2.28

27

SPARK PLUG (B7ES) (NGK) This part replaces 98079-57810.

98079-57840

$2.56

27

SPARK PLUG (B7ES) (NGK) This part replaces 98079-57811.

98079-57840

$2.56

27

SPARK PLUG (B7ES) (NGK)

98079-57840

$2.56

27

SPARK PLUG (B7ES) (NGK) This part replaces 98079-57840-S.

98079-57840

$2.56

27

SPARK PLUG (B8ES) (NGK)

98079-58840

$2.56

27

SPARK PLUG (B8ES) (NGK) This part replaces 98079-58840-S.

98079-58840

$2.56
