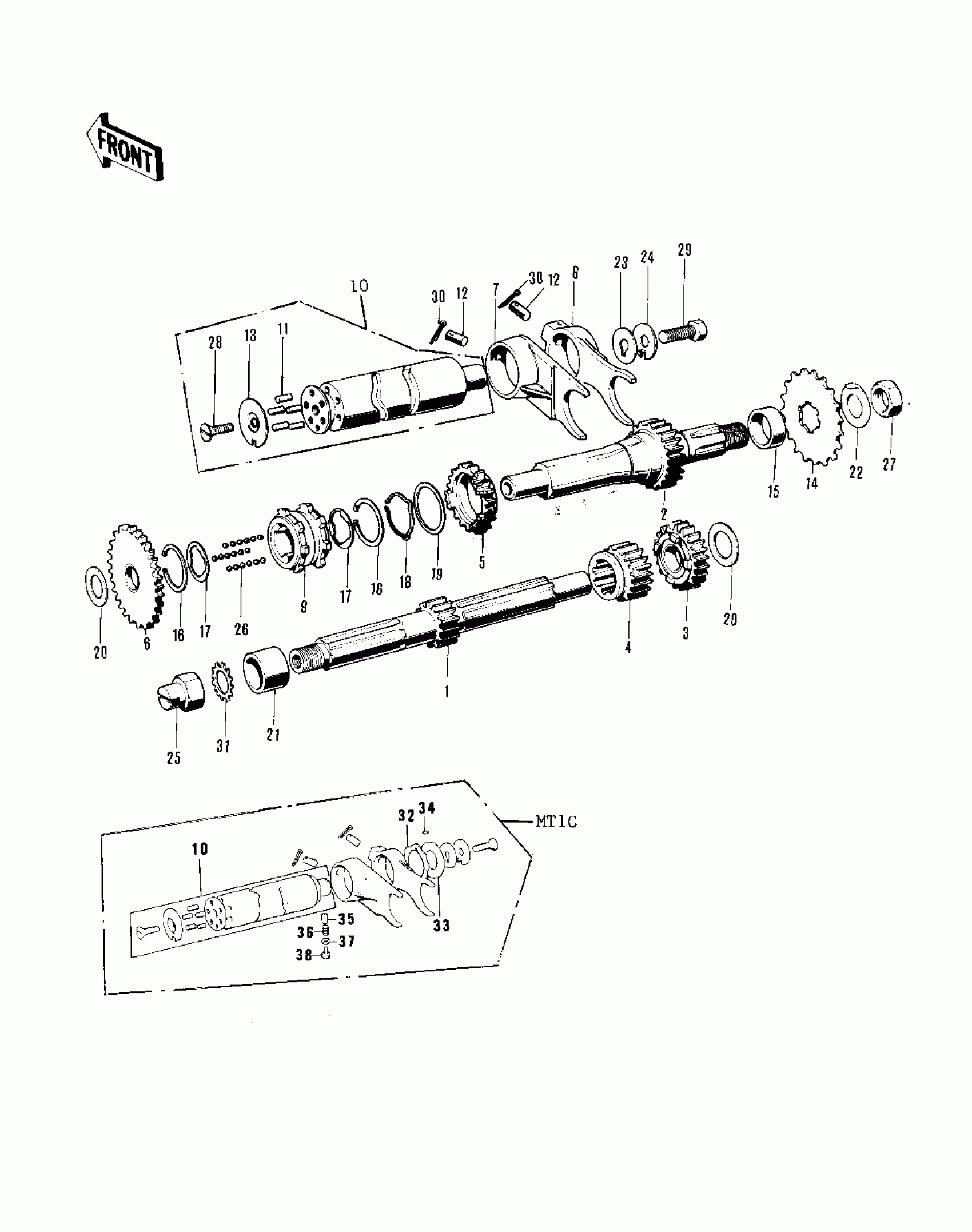

Kawasaki MT1C TRANSMISSION/CHANGE DRUM ('71-'75) Diagram
#
1
SHAFT-DRIVE
13127-030
Unavailable
2
SHAFT-OUTPUT
13128-029
Unavailable
3
TOP GEAR-DRIVE
13136-034
Unavailable
4
2ND GEAR-DRIVE
13130-003
Unavailable
5
2ND GEAR-OUTPUT
13131-032
Unavailable
6
LOW GEAR-OUTPUT
13129-035
Unavailable
7
FORK-SELECTOR,LOW&2ND
13140-033
Unavailable
8
FORK-SELECTOR,TOP
13140-034
Unavailable
9
SHIFTER
13139-004
Unavailable
10
DRUM ASSY-GEAR CHANGE
13239-001
Unavailable
10
DRUM ASSY,GEAR CHANGE
13239-1014
Unavailable
11
PIN GEAR CHANGE DRUM
92043-004
Unavailable
12
PIN SELECT FORK GUIDE
92043-005
Unavailable
13
PLATE CHANGE DRUM PIN
13142-002
Unavailable
14
ENGINE SPROCKET
13144-002
Unavailable
15
COLLAR OIL SEAL
92027-001
Unavailable
16
CIRCLIP,26MM
92033-003
Unavailable
17
CIRCLIP
92033-004
Unavailable
18
RING-SNAP,20X25.5X1.2
92033-025
Unavailable
19
WASHER 22MM
92022-106
Unavailable
20
WASHER-PLAIN
92022-174
Unavailable
21
COLLAR-CLUTCH PINION
92027-002
Unavailable
22
WASHER-LOCK,12MM
92022-002
Unavailable
23
WASHER-PLAIN
92022-175
Unavailable
24
WASHER-LOCK
92024-028
Unavailable
25
NUT-OIL PUMP
92015-046
Unavailable
26
BALL-STEEL,5/32
600A0500
Unavailable
27
NUT-HEX-FINE
314B1200
Unavailable
28
SCREW CNTSNK HD 6X16
212B0616
Unavailable
29
BOLT-HEX HEAD,8X18
113B0818
Unavailable
30
PIN-COTTER,3.0X20
550D3020
Unavailable
31
WASHER-TOOTHED,12MM
464H1200
Unavailable
32
DISC.CHNG DRUM OPRTN
13145-004
Unavailable
33
WASHER,THRUST
92026-106
Unavailable
34
ROLLER,4X6
610A0406
Unavailable
35
PIN
92043-076
Unavailable
36
SPRING
92081-112
Unavailable
37
GASKET
92065-090
Unavailable
38
BOLT,FLANGED,16X16.5
92001-131
Unavailable
