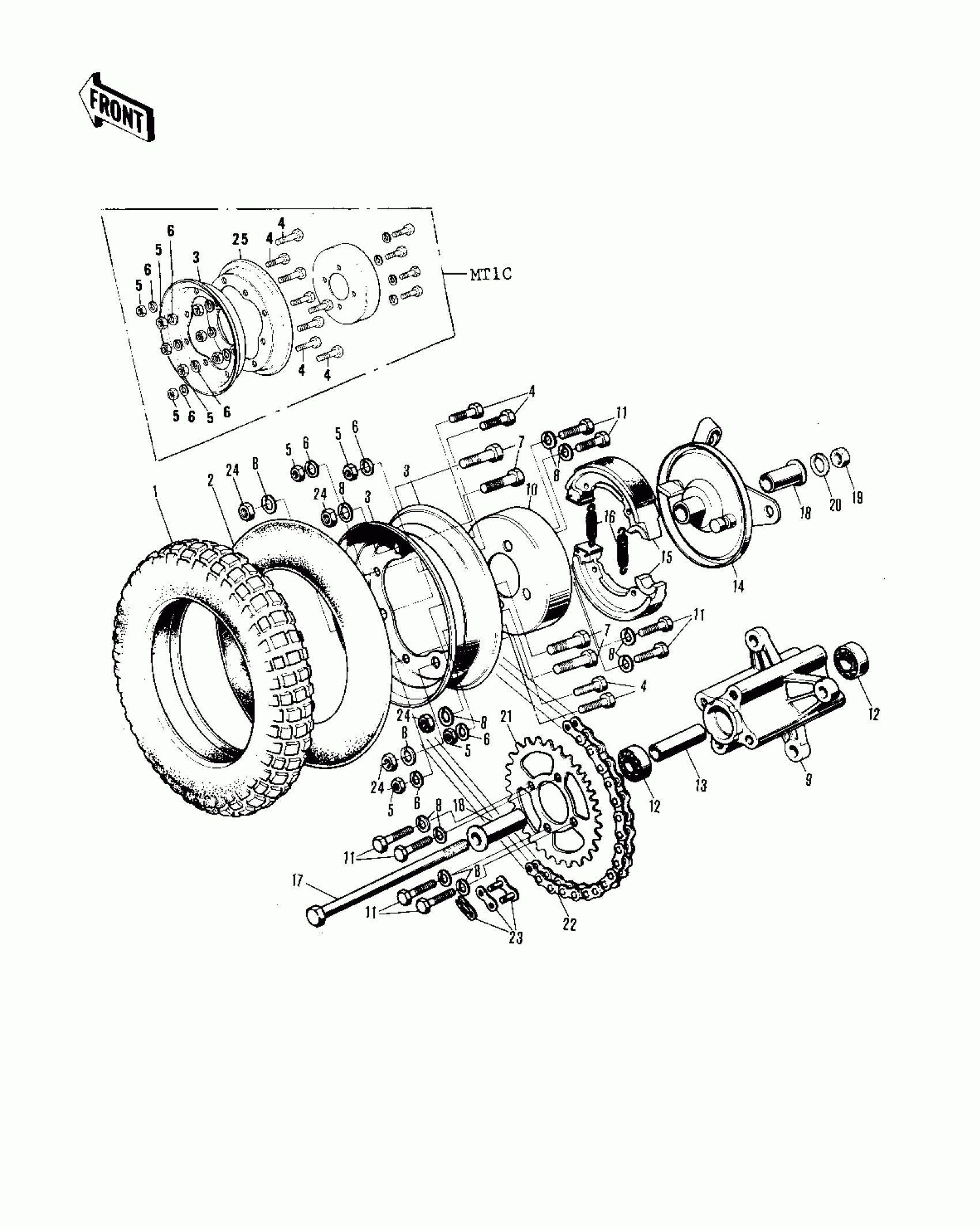

Kawasaki MT1C REAR WHEEL/TIRE/HUB/BRAKE/CHAIN ('71-'75 Diagram
#
Description
Price
1
UNAVAILABLE IN PRICE BOOK
41021-015
Unavailable
2
TUBE 350-8
41022-037
Unavailable
3
RIM 2.50-8
41025-047
Unavailable
3
RIM,2.50-8
41025-081
Unavailable
4
BOLT SMALL
114G0812
Unavailable
4
BOLT,HEX HEAD,10X16
113G1016
Unavailable
5
NUT,8MM
311B0800
Unavailable
5
NUT-HEX-FINE,10MM
314B1000
Unavailable
6
WASHER SPRING 8MM
461F0800
Unavailable
6
WASHER SPRING 10MM
461F1000
Unavailable
7
BOLT,HEX HEAD,10X25
113G1025
Unavailable
8
WASHER SPRING 10MM
461F1000
Unavailable
8 13
DRUM ASSY-REAR BRAKE
42005-025
Unavailable
10
DRUM-BRAKE
41054-003
Unavailable
11
BOLT-HEX HEAD,10X28
92001-017
Unavailable
12
BEARING-BALL #6201Z
601B6201Z
Unavailable
13
SPACER-BEARING
42010-020
Unavailable
14 16
PANEL-ASY,RR BRK
42006-056
Unavailable
14 16
PANEL-ASY,RR BRK
42006-056
Unavailable
15,16
SHOE,BRAKE
41048-1010
Unavailable
16
SPRING-BRAKE SHOE
41049-009
Unavailable
17
AXLE-REAR
42031-028
Unavailable
18
COLLAR-REAR AXLE
42032-029
Unavailable
19
NUT-HEX-FINE
314B1200
Unavailable
20
WASHER-SPRING,12MM
461F1200
Unavailable
21
REAR SPROCKET 33T
42041-086
Unavailable
22
DR CHAIN 420X88
92057-1006
Unavailable
23
CHAIN JOINT 420
92058-003
Unavailable
24
NUT-HEX-FINE,10MM
314B1000
Unavailable
25
RIM,2.50-8
41025-082
Unavailable
