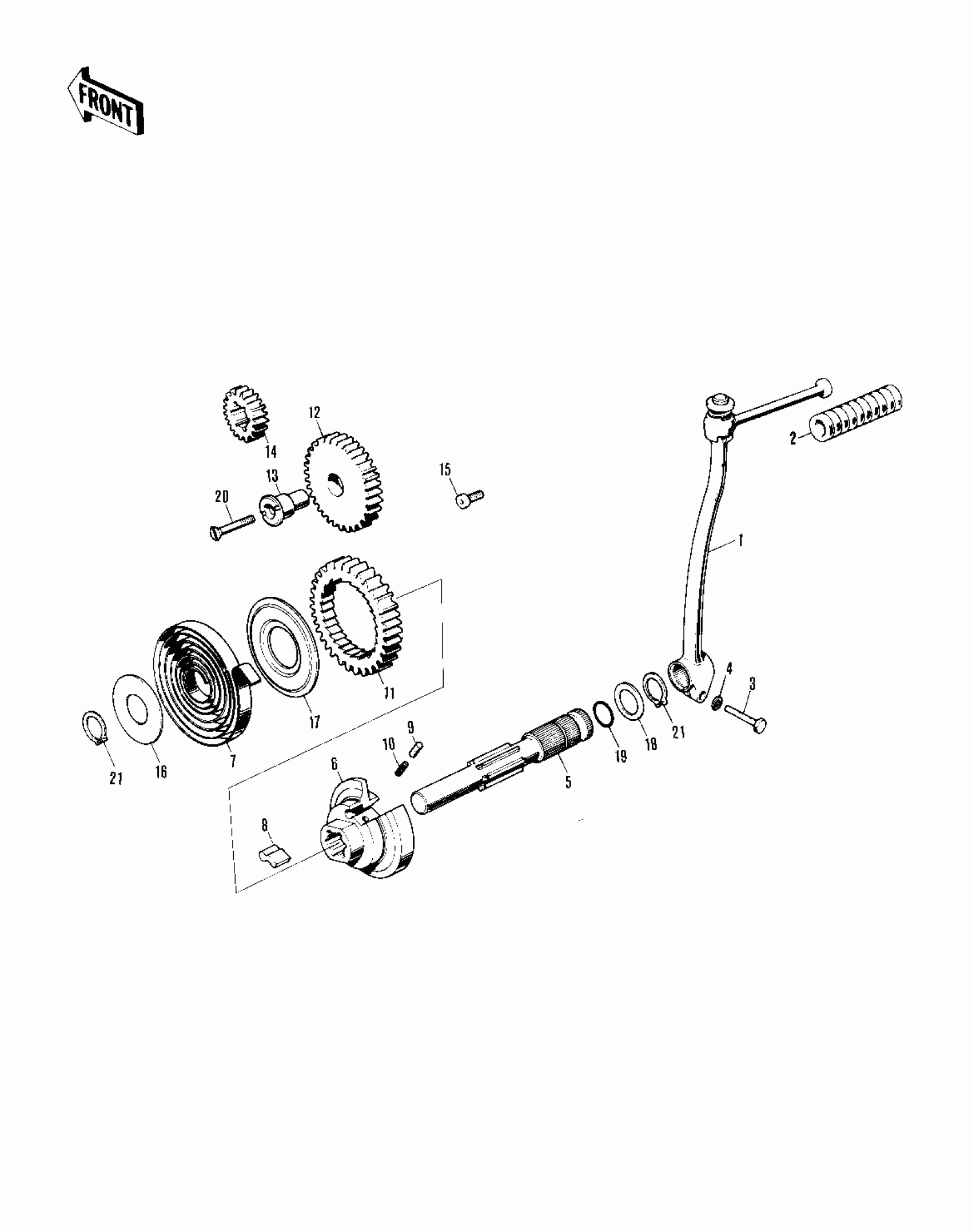

Kawasaki MT1C KICKSTARTER MECHANISM ('71-'75) Diagram
#
Description
Price
1
PEDAL-KICKSTARTER
13058-031
Unavailable
2
RUBBER-KICK PEDAL
13063-005
Unavailable
3
BOLT-UPSET
112G0625
Unavailable
4
WASHER SPRING 6MM
461F0600
Unavailable
5
SHAFT-KICKSTARTER
13066-018
Unavailable
6
DRUM KK
13067-001
Unavailable
7
KICKSTARTER SPRING
92082-001
Unavailable
8
PAWL
13069-001
Unavailable
9
PIN KICKSTARTER PAWL
92042-001
Unavailable
10
SPRING KICK PAWL
92081-022
Unavailable
11
GEAR-KICKSTARTER
13068-003
Unavailable
12
IDLE GEAR
13073-002
Unavailable
13
SHAFT-IDLE GEAR
13074-002
Unavailable
14
PINION-KICKSTARTER
13075-003
Unavailable
15
STOPPER-KICKSTARTER
13072-001
Unavailable
16
PLATE-KICK SPRG HLDER
13071-001
Unavailable
17
PLATE-KICK GEAR HLDER
13071-002
Unavailable
18
WASHER,16MM
92022-006
Unavailable
19
"0" RING,16MM
92055-001
Unavailable
20
SCREW,CNTSNK,5X30.5
92010-002
Unavailable
21
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
