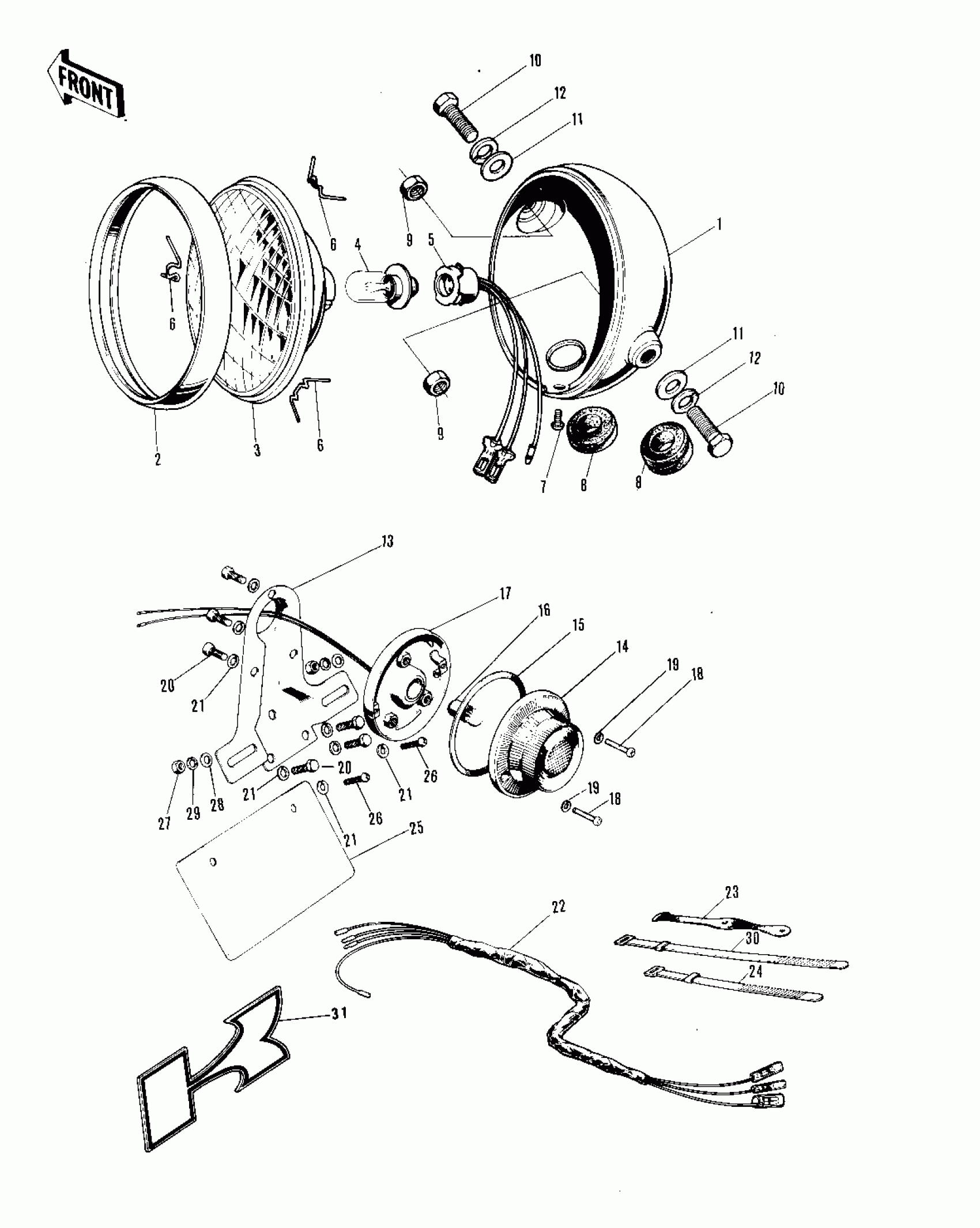

Kawasaki MT1C HEADLIGHT/TAILLIGHT/CHASSIS ELECTRICAL E Diagram
#
Description
Price
1
BODY,HD LIGHT,FL BLCK
23005-1006-21
Unavailable
2 7
LAMP UNIT-HEAD
23004-023
Unavailable
2
RIM,HEAD LAMP
23006-043
Unavailable
3
LENS UNIT-HEAD LAMP
23007-010
Unavailable
4
BULB,6V 25/25W
92069-031
Unavailable
5
SOCKET HEAD LAMP
23008-009
Unavailable
6
CLAMP,HEAD LAMP LENS
23009-014
Unavailable
7
SCREW OVL CNTSNK 5X8
222E0508A
Unavailable
8
GROMMET WIRING HARNES
23023-007
Unavailable
9
NUT 10MM
92016-027
Unavailable
10
BOLT-UPSET,10X20
112B1020
Unavailable
11
WASHER-PLAIN,10MM
411B1000
Unavailable
12
WASHER SPRING 10MM
461F1000
Unavailable
13
BKT-TAIL LAMP,BLACK
35028-005-10
Unavailable
14 19
LAMP ASSY-TAIL
23025-035
Unavailable
14
LENS-TAIL LAMP
23026-009
Unavailable
15
GASKET-TAIL LAMP LENS
23028-012
Unavailable
16
BULB 6V 10/3W
92069-020
Unavailable
17
SOCKET-TAIL LAMP
23027-025
Unavailable
18
SCREW-PAN HEAD,4X10
220E0410A
Unavailable
19
WASHER SPRING 4MM
461F0400
Unavailable
20
BOLT-UPSET,6X12
112G0612
Unavailable
21
WASHER SPRING 6MM
461F0600
Unavailable
22
WIRING HARNESS,MAIN
26001-057
Unavailable
23
BAND RUBBER
92072-018
Unavailable
24
BAND,L=123
92072-030
Unavailable
25
BRACKET-LICENCE PLATE
35027-006
Unavailable
26
SCREW PAN HEAD 6X12
220B0612
Unavailable
27
NUT 6MM
311B0600
Unavailable
28
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
29
WASHER SPRING 6MM
461F0600
Unavailable
30
BAND,L=218
92072-032
Unavailable
31
EMBLEM,LICNSE PLT BKT
56018-176
Unavailable
