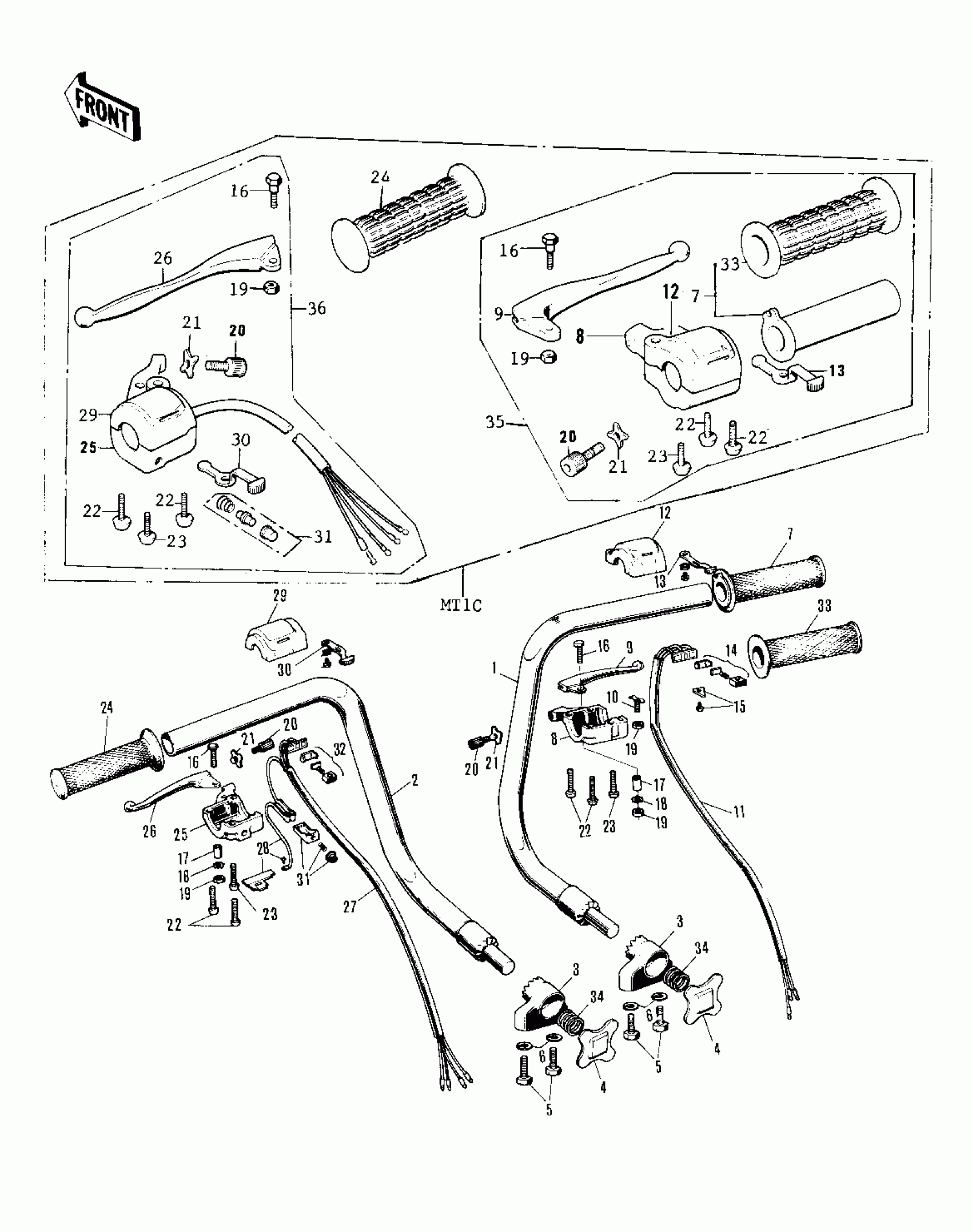

Kawasaki MT1C HANDLEBAR ('71-'75) Diagram
#
1
HANDLEBAR,RH
46007-010
Unavailable
2
HANDLEBAR,LH
46007-011
Unavailable
3
HOLDER-HANDLEBAR
46012-009
Unavailable
4
KNOB-HANDLEBAR HOLDER
46129-001
Unavailable
5
BOLT HEX HEAD 10X18
113B1018
Unavailable
6
WASHER SPRING 10MM
461F1000
Unavailable
7-21,2
GRIP-ASSY,RH
46017-1071
Unavailable
7
GRIP ASSY THROTTLE
46019-005
Unavailable
7
GRIP ASSY,THROTTLE
46019-024
Unavailable
8
CASE R.H SWITCH LOWER
46022-012
Unavailable
8
CASE,R.H LOWER
46022-017
Unavailable
9
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
10
SPRING THROTTLE GRIP
46024-002
Unavailable
11
WIRING HARNESS R.H SW
46032-010
Unavailable
12
GRIP-ASSY,RH
46017-1071
Unavailable
12
CASE,R.H. UPPER
46040-015
Unavailable
13
KNOB ASSY R.H SWITCH
46043-002
Unavailable
14
SLIDE BLOCK AY R.H SW
46045-004
Unavailable
15
HOLDER WIRING HARNESS
46085-012
Unavailable
16
BOLT HEX HEAD 5X20
92007-020
Unavailable
16
BOLT,5X22
92007-046
Unavailable
17
COLLAR LEVER
46059-011
Unavailable
18
WASHER LOCK 5MM
464H0500
Unavailable
19
NUT 5MM
312B0500A
Unavailable
19
NUT,LOCK,5MM
92019-014
Unavailable
20
SCREW,CABLE ADJUST
46055-010
Unavailable
21
NUT LOCK ADJUST SCREW
46056-001
Unavailable
22
SCREW PAN HEAD 5X20
220B0520A
Unavailable
23
SCREW, PAN HEAD, 5 X 18
220B0518A
Unavailable
15-32
GRIP ASSY L.H
46074-017
Unavailable
24
RUBBER L.H GRIP
46075-007
Unavailable
24
RUBBER,L.H GRIP
46075-020
Unavailable
25
CASE L.H SWITCH LOWER
46077-008
Unavailable
25
CASE, L.H. LOWER
46077-026
Unavailable
26
LEVER-GRIP,CLUTCH
46092-015
Unavailable
26
LEVER-GRIP,CLUTCH
46092-015
Unavailable
27
WIRING HARNESS L.H SW
46082-009
Unavailable
28
HOLDER L.H SWITCH
46085-008
Unavailable
29
CASE L.H SWITCH UPPER
46086-007
Unavailable
29
CASE,L.H UPPER
46086-025
Unavailable
30
KNOB ASSY L.H SWITCH
46088-001
Unavailable
31
SWITCH ASSY LH BUTTON
46078-003
Unavailable
32
SLIDE BLOCK AY L.H SW
46089-002
Unavailable
33
RUBBER R.H GRIP
46061-009
Unavailable
33
RUBBER,R.H.GRIP
46061-015
Unavailable
34
SPRING
92081-078
Unavailable
34
SPRING
92081-090
Unavailable
35
GRIP ASSY,R.H
46017-077
Unavailable
36
GRIP ASSY,L.H
46074-092
Unavailable
