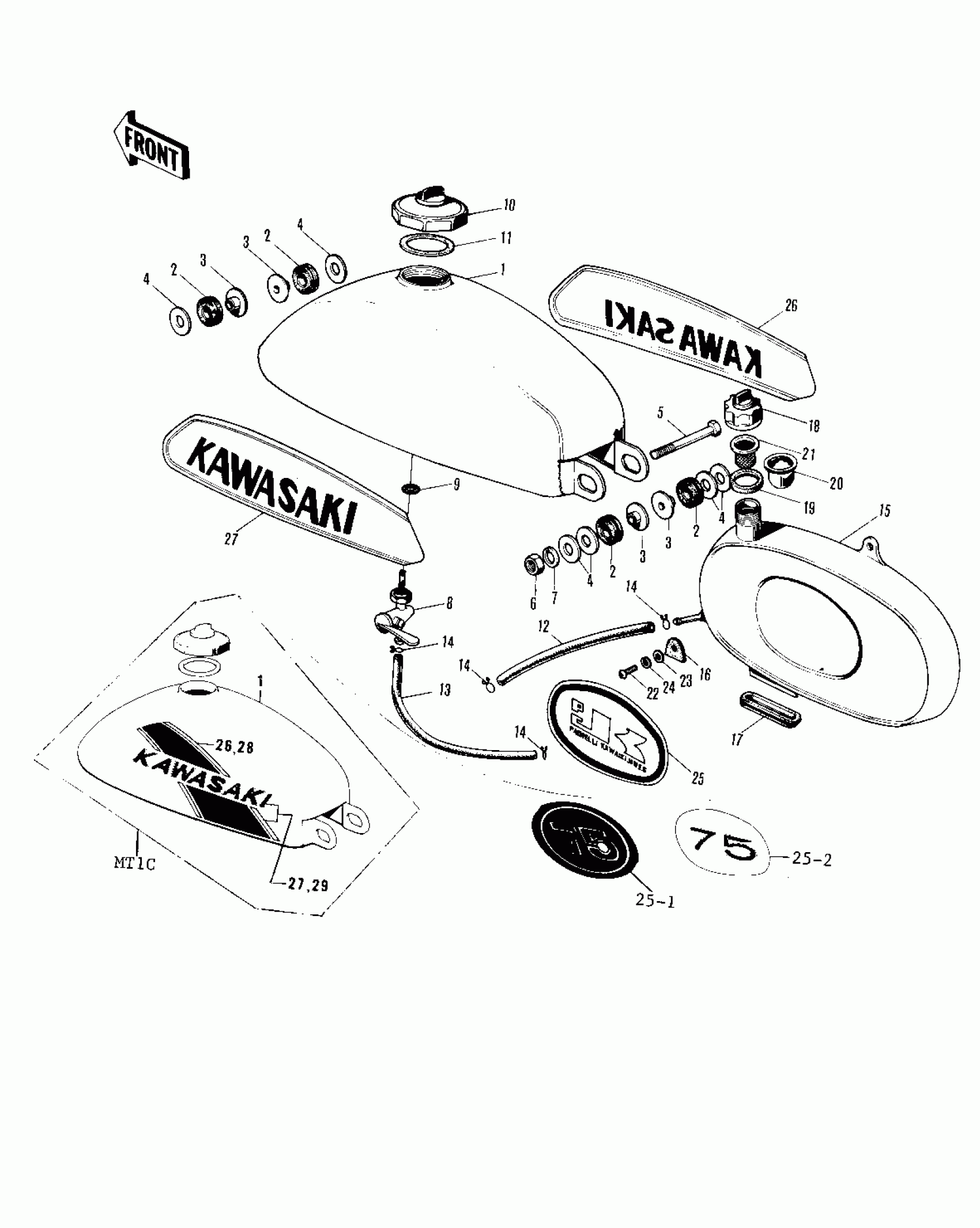

Kawasaki MT1C FUEL TANK/OIL TANK/LABELS ('71-'75) Diagram
#
1
TANK-FUEL,GREEN
51001-064-54
Unavailable
1
TANK-FUEL,B.ORANGE
51001-064-72
Unavailable
1
TANK-FUEL,C.LIME
51001-064-1M
Unavailable
1
TANK-FUEL,V.YELLOW
51001-064-3E
Unavailable
2
DAMPER RUBB TANK FRNT
92075-019
Unavailable
3
COLLAR
92027-080
Unavailable
4
WASHER,8X26X2.3
92022-1564
Unavailable
5
BOLT,HEX HEAD,8X85
92001-1226
Unavailable
6
NUT,8MM
311B0800
Unavailable
7
WASHER SPRING 8MM
461F0800
Unavailable
8
COCK ASSY,FUEL
51023-030
Unavailable
8
COCK ASSY,FUEL
51023-030
Unavailable
9
GASKET-FUEL COCK JONT
92065-075
Unavailable
10
CAP-FUEL TANK
51048-005
Unavailable
11
GASKET FUEL TANK CAP
51059-003
Unavailable
11
GASKET,FUEL TANK CAP
51059-006
Unavailable
12
PIPE-OIL
92059-072
Unavailable
13
TUBE
92059-074
Unavailable
14
CLAMP,TUBE
92037-010
Unavailable
15
TANK-OIL
52001-023
Unavailable
15
TANK-OIL,B.ORANGE
52001-023-72
Unavailable
15
TANK,OIL,C.LIME
52001-023-1M
Unavailable
15
TANK,OIL,T.YELLOW
52001-023-3E
Unavailable
16
PLATE-OIL TANK
52016-001
Unavailable
17
DAMPER RUBBER
92075-070
Unavailable
18
CAP-OIL TANK
52002-002
Unavailable
19
GASKET-OIL TANK CAP
92065-079
Unavailable
20
CASE-TANK CAP RUBBER
52004-007
Unavailable
21
RUBBER-OIL TANK CAP
52004-008
Unavailable
23
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
24
WASHER SPRING 6MM
461F0600
Unavailable
25
EMBLEM-OIL TANK
56018-059
Unavailable
25-1
EMBLEM,OIL TANK
56018-159
Unavailable
25-2
EMBLEM, OIL TANK
56018-187
Unavailable
26
EMBLEM-L.H FUEL TANK
56013-025
Unavailable
27
EMBLEM-R.H FUEL TANK
56014-019
Unavailable
28
DECAL,L.H FL TK,UPPER
56027-221-SP
Unavailable
29
DECAL,L.H FL TK,LOWER
56027-222-SP
Unavailable
30
DECAL,R.H FL TK,UPPER
56027-223-SP
Unavailable
31
DECAL,R.H FL TK,LOWER
56027-224-SP
Unavailable
