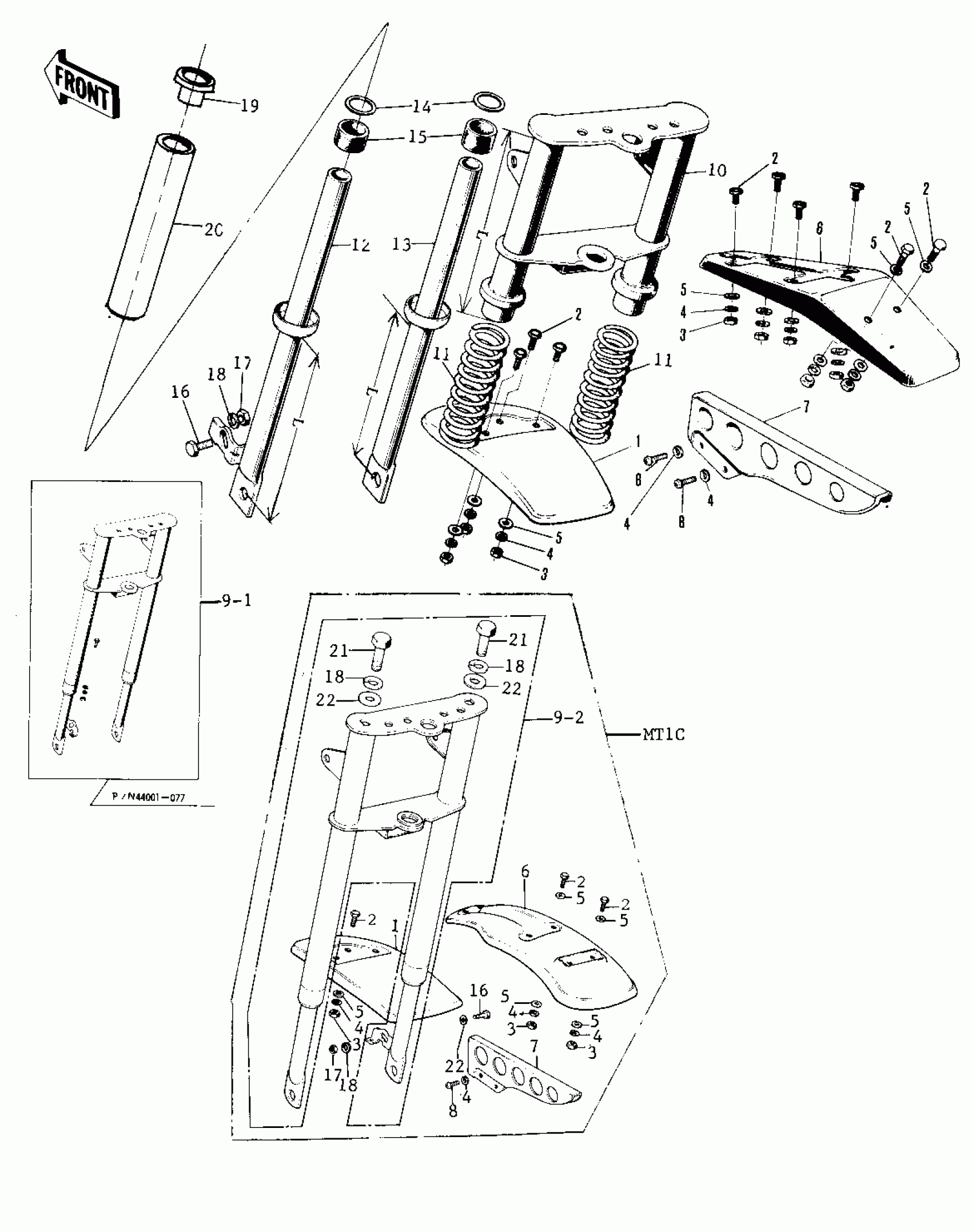

Kawasaki MT1C FRONT FORK/FENDERS/CHAIN COVER ('71-'75) Diagram
#
1
FENDER-FR,GREEN
35004-058-54
Unavailable
1
FENDER-FR,B.ORANGE
35004-058-72
Unavailable
1
FENDER-FR,C.LIME
35004-087-1M
Unavailable
1
UNAVAILABLE IN PRICE BOOK
35004-087-3E
Unavailable
2
BOLT-UPSET 6X14
112B0614
Unavailable
3
NUT 6MM
311B0600
Unavailable
4
WASHER SPRING 6MM
461F0600
Unavailable
5
WASHER PLAIN
92022-024
Unavailable
6
FENDER-REAR,BLACK
35023-011-10
Unavailable
6
FENDER-RR,C.LIME
35023-013-1M
Unavailable
6
FENDER-RR,BLACK
35023-013-10
Unavailable
7
CASE-CHAIN,BLACK
36014-036-21
Unavailable
8
SCREW PAN HEAD 6X10
220B0610
Unavailable
9 12
FRONT FORK ASSY
44001-067
Unavailable
9 12
FRONT FORK ASSY
44001-073
Unavailable
9-1
FRONT FORK ASSY
44001-077
Unavailable
9-2
FORK-FRONT
44001-159
Unavailable
10
BODY-FRONT FORK
44047-004
Unavailable
10
BODY-FRONT FORK
44047-005
Unavailable
11
SPRING-FORK
44026-032
Unavailable
12
TUBE,LH,FORK OUTER
44005-033
Unavailable
12
TUBE,LH,FORK OUTER
44005-036
Unavailable
13
TUBE,RH,FORK OUTER
44006-032
Unavailable
13
TUBE,RH,FORK OUTER
44006-034
Unavailable
14
GUIDE-FORK SPRING
44028-020
Unavailable
15
DAMPER RUBBER-FORK
92075-071
Unavailable
16
BOLT-UPSET,10X20
112B1020
Unavailable
17
NUT-HEX-FINE,10MM
314B1000
Unavailable
17
NUT-HEX-FINE,10MM
314B1000
Unavailable
18
WASHER SPRING 10MM
461F1000
Unavailable
19
BUSH,SHORT
44065-002
Unavailable
20
BUSH-LONG
44065-003
Unavailable
21
BOLT,HEX HEAD,10X25
113N1025
Unavailable
22
WASHER-PLAIN,10MM
411B1000
Unavailable
1
FENDER-FR,GREEN
35004-058-54
Unavailable
1
FENDER-FR,B.ORANGE
35004-058-72
Unavailable
1
FENDER-FR,C.LIME
35004-087-1M
Unavailable
1
UNAVAILABLE IN PRICE BOOK
35004-087-3E
Unavailable
2
BOLT-UPSET 6X14
112B0614
Unavailable
3
NUT 6MM
311B0600
Unavailable
4
WASHER SPRING 6MM
461F0600
Unavailable
5
WASHER PLAIN
92022-024
Unavailable
6
FENDER-REAR,BLACK
35023-011-10
Unavailable
6
FENDER-RR,C.LIME
35023-013-1M
Unavailable
6
FENDER-RR,BLACK
35023-013-10
Unavailable
7
CASE-CHAIN,BLACK
36014-036-21
Unavailable
8
SCREW PAN HEAD 6X10
220B0610
Unavailable
9 12
FRONT FORK ASSY
44001-067
Unavailable
9 12
FRONT FORK ASSY
44001-073
Unavailable
9-1
FRONT FORK ASSY
44001-077
Unavailable
9-2
FORK-FRONT
44001-159
Unavailable
10
BODY-FRONT FORK
44047-004
Unavailable
10
BODY-FRONT FORK
44047-005
Unavailable
11
SPRING-FORK
44026-032
Unavailable
12
TUBE,LH,FORK OUTER
44005-033
Unavailable
12
TUBE,LH,FORK OUTER
44005-036
Unavailable
13
TUBE,RH,FORK OUTER
44006-032
Unavailable
13
TUBE,RH,FORK OUTER
44006-034
Unavailable
14
GUIDE-FORK SPRING
44028-020
Unavailable
15
DAMPER RUBBER-FORK
92075-071
Unavailable
16
BOLT-UPSET,10X20
112B1020
Unavailable
17
NUT-HEX-FINE,10MM
314B1000
Unavailable
17
NUT-HEX-FINE,10MM
314B1000
Unavailable
18
WASHER SPRING 10MM
461F1000
Unavailable
19
BUSH,SHORT
44065-002
Unavailable
20
BUSH-LONG
44065-003
Unavailable
21
BOLT,HEX HEAD,10X25
113N1025
Unavailable
22
WASHER-PLAIN,10MM
411B1000
Unavailable
