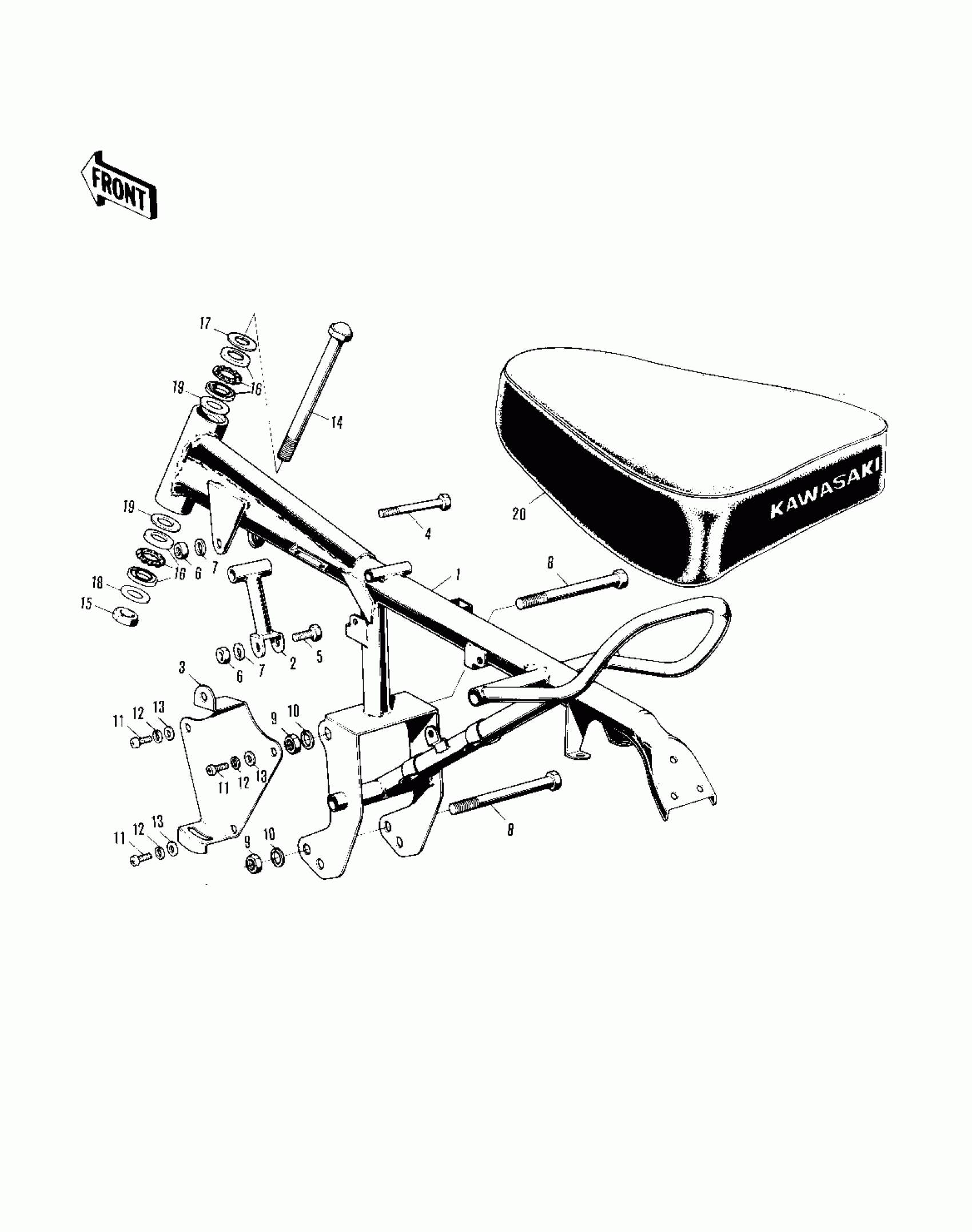

Kawasaki MT1C FRAME/FRAME FITTINGS/SEAT ('71-'75) Diagram
#
Description
Price
1
FRAME
32002-144
Unavailable
1
UNAVAILABLE IN PRICE BOOK
32002-056
Unavailable
2
TUBE-DOWN
31076-016
Unavailable
3
BRACKET-OIL TANK
32094-006
Unavailable
3
UNAVAILABLE IN PRICE BOOK
32094-007
Unavailable
4
BOLT,HEX HEAD,8X85
92001-1226
Unavailable
5
BOLT
92001-1578
Unavailable
6
NUT,8MM
311B0800
Unavailable
7
WASHER SPRING 8MM
461F0800
Unavailable
8
BOLT,FLANGED,10X110
92001-1602
Unavailable
9
NUT-HEX-FINE,10MM
314B1000
Unavailable
10
WASHER SPRING 10MM
461F1000
Unavailable
11
SCREW PAN HEAD 6X12
220B0612
Unavailable
12
WASHER SPRING 6MM
461F0600
Unavailable
13
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
14
BOLT,STEERING HEAD
92001-156
Unavailable
15
NUT-SELF LOCKING
92019-012
Unavailable
16
THRUST BEARING
92119-001
Unavailable
17
WASHER-PLAIN,16MM
411D1600
Unavailable
18
WASHER-PLAIN,16MM
411B1600
Unavailable
19
WASHER-PLAIN
92022-179
Unavailable
19
COLLAR,STEERING
92027-1119
Unavailable
20
SEAT
53002-024
Unavailable
