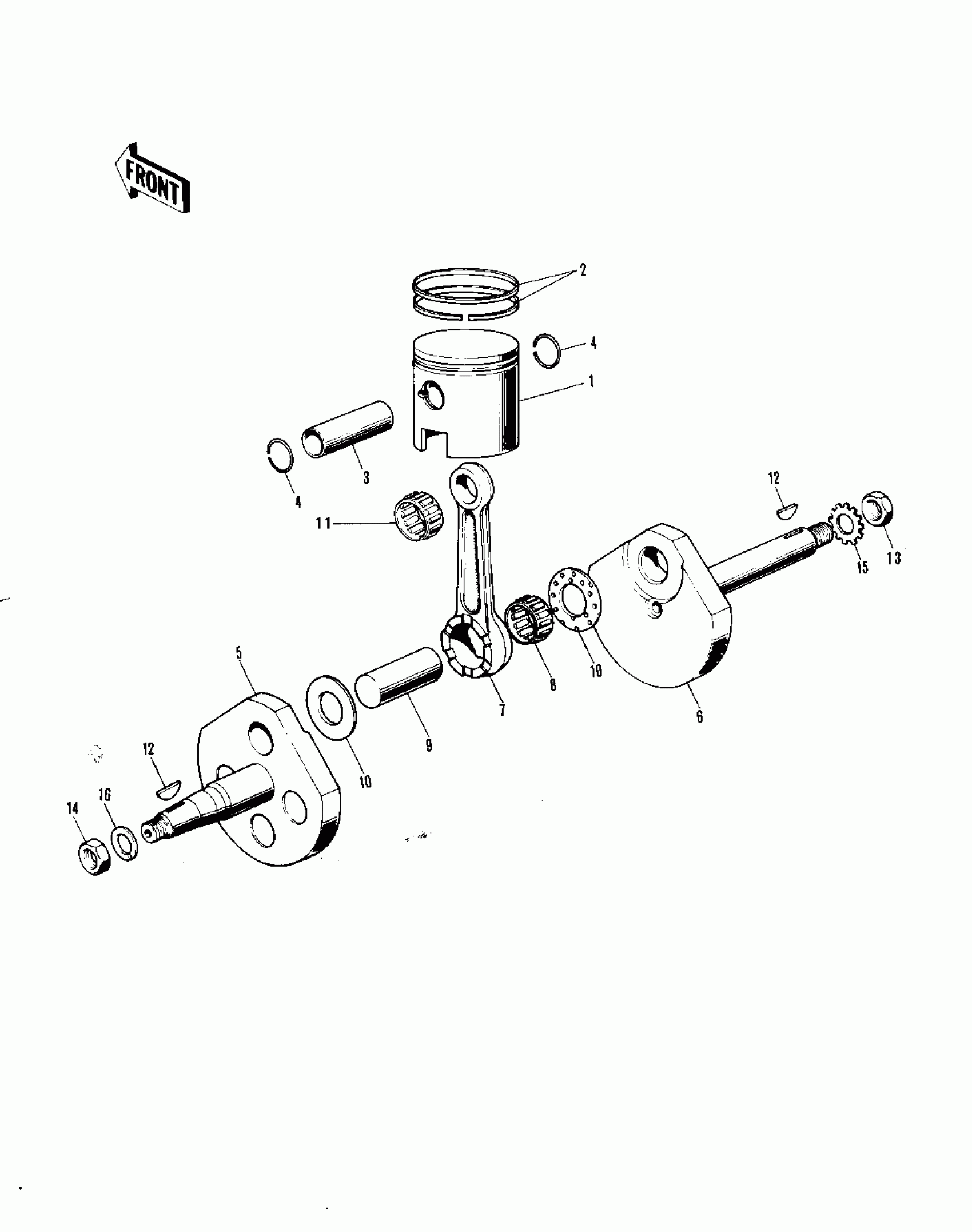

Kawasaki MT1C CRANKSHAFT/PISTON ('71-'75) Diagram

#

Description

Price

1

PISTON,STD

13001-047

Unavailable

1

PISTON,0.020' O.S

13029-047

Unavailable

1

PISTON,0.040' O.S

13027-027

Unavailable

2

RING SET,STD

13008-029

Unavailable

2

RING SET,0.020' O.S

13025-034

Unavailable

2

RING SET,0.040' O.S

13024-037

Unavailable

3

PIN-PISTON

13002-019

Unavailable

4

RING-SNAP,PISTON PIN

92036-007

Unavailable

5 10

CRANK - CONROD ASSY

13036-030

Unavailable

5

CRANKSHAFT L.H

13037-043

Unavailable

6

CRANKSHAFT R.H

13038-039

Unavailable

7 10

CONNECTING ROD SET

13044-015

Unavailable

8

NEEDLE BEARING-BG END

13034-002

Unavailable

9

CRANK PIN

13035-024

Unavailable

10

WASHER-SIDE

92026-002

Unavailable

11

BEARING-NEEDLE,72KTV030

13033-028

Unavailable

12

KEY,WOODRUFF

92038-001

Unavailable

13

NUT,12MM

92016-024

Unavailable

14

NUT-HEX-FINE,10MM

314B1000

Unavailable

15

WASHER-TOOTHED,12MM

464H1200

Unavailable

16

WASHER SPRING 10MM

461F1000

Unavailable
