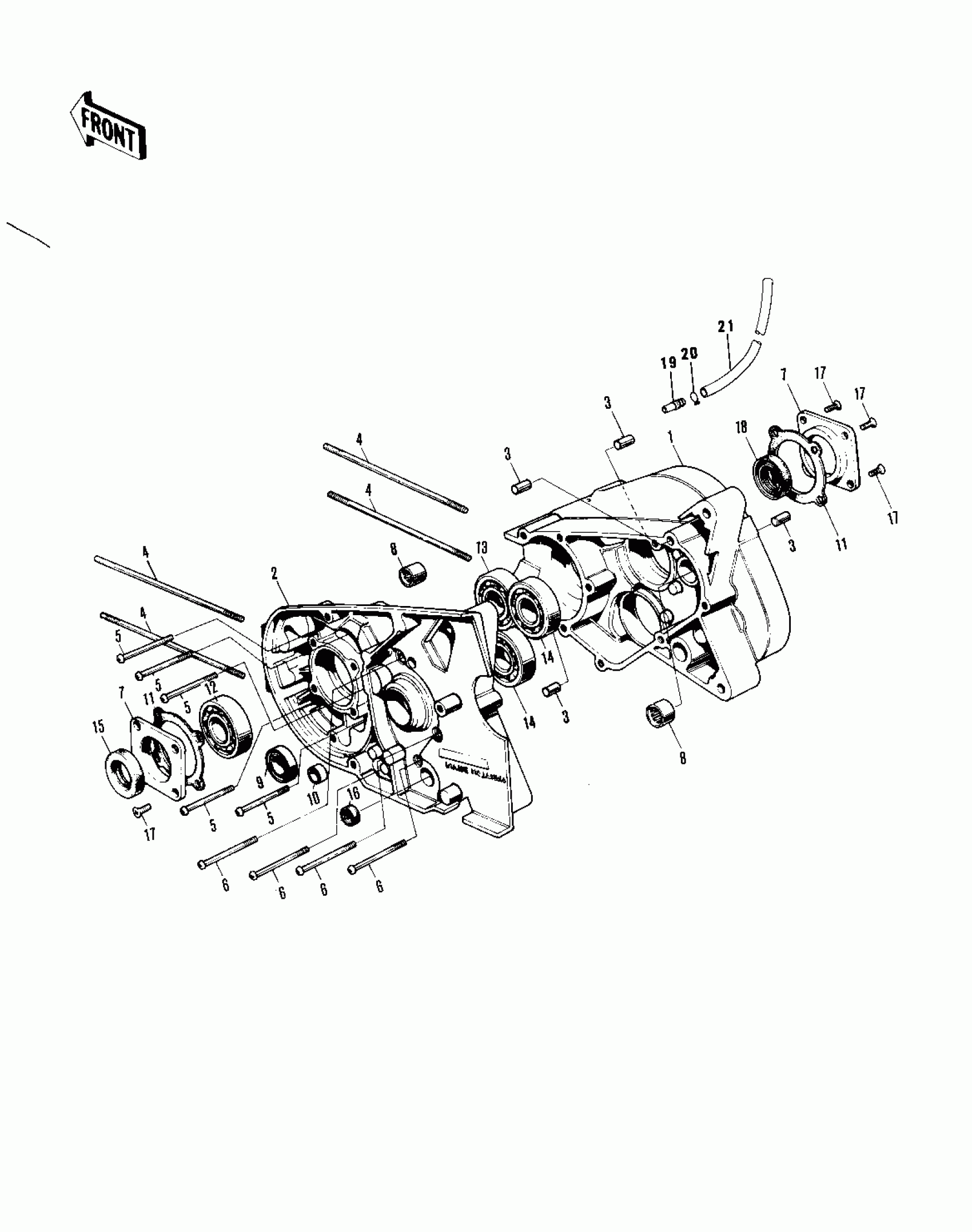

Kawasaki MT1C CRANKCASE ('71-'75) Diagram
#
Description
Price
1 3
CRANKCASE SET
14001-5008
Unavailable
1 3
CRANKCASE SET
14001-068
Unavailable
3
PIN DOWEL 8X16
551A0816
Unavailable
4
STUD,6X120
92004-033
Unavailable
5
SCREW PAN HEAD 6X35
220B0635
Unavailable
6
SCREW-PAN-CROS,6X60
220B0660
Unavailable
7
RETAINER-OIL SEAL
14020-009
Unavailable
8
NEEDLE BEARING-SM END
92046-024
Unavailable
9
SEAL-OIL,SC22325
92049-1048
Unavailable
10
OIL SEAL VB14246
92053-001
Unavailable
11
GASKET-OIL SEAL RETNR
14023-002
Unavailable
12
BEARING-BALL,#6204C3
601B6204
Unavailable
13
BEARING-BALL,#6303C3
601B6303
Unavailable
14
BEARING-BALL,#6203C3
601B6203
Unavailable
15
OIL SEAL,TB20358
653B203508
Unavailable
16
SEAL-OIL,SB12205
92049-004
Unavailable
17
SCREW-CSK-CROS,6X14
221B0614
Unavailable
18
OIL SEAL TB24358
653B243508
Unavailable
19
BREATHER
14069-006
Unavailable
20
CLAMP,BREATHER PIPE
92037-078
Unavailable
21
TUBE,VINYL,4X500
700Q04500
Unavailable
