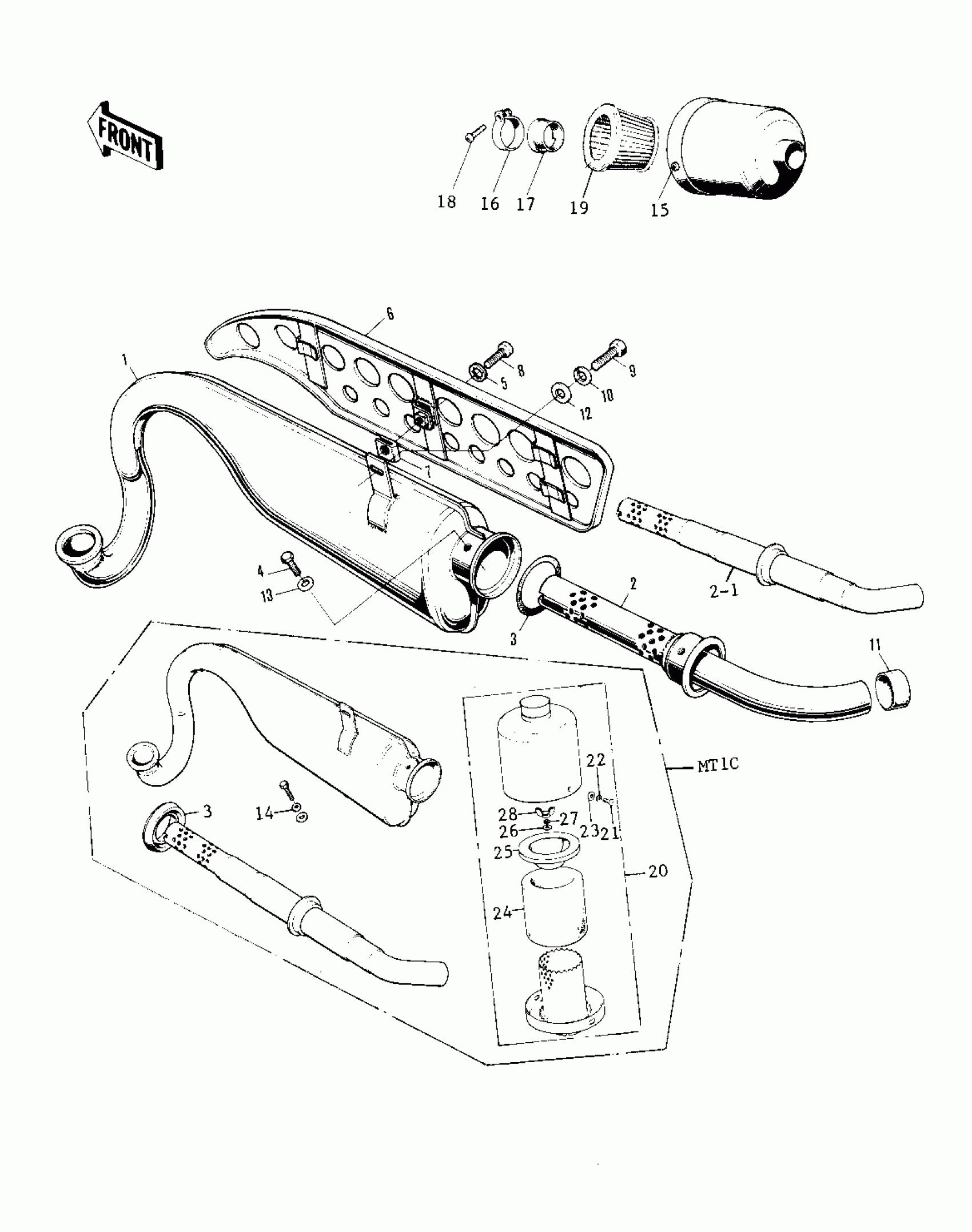

Kawasaki MT1C AIR CLEANER/MUFFLER ('71-'75) Diagram
#
1 4,13
UNAVAILABLE IN PRICE BOOK
18001-034
Unavailable
1 4,13
MUFFLER ASSY
18001-079
Unavailable
2
BAFFLE TUBE
18033-046
Unavailable
2-1
BAFFLE TUBE
18033-060
Unavailable
3
"0" RING,36MM
670B3036
Unavailable
3
OIL SEAL
92056-004
Unavailable
4
BOLT,6X10
112G0610
Unavailable
4
BOLT-UPSET,6X8
112B0608
Unavailable
5
WASHER LOCK 6MM
464H0600
Unavailable
5
WASHER LOCK 6MM
463H0600
Unavailable
6
COVER-MUFFLER BLACK
18057-036-21
Unavailable
6
COVER,MUFFLER
18057-048
Unavailable
7
INSULATOR-HEAT
18065-009
Unavailable
8
SCREW PAN HEAD 6X12
220E0612
Unavailable
9
BOLT,8X20
115G0820
Unavailable
9
BOLT,8X20
115G0820
Unavailable
10
WASHER SPRING 8MM
461F0800
Unavailable
11
CAP-RUBBER
92073-012
Unavailable
11
CAP-MUFFLER RUBBER
92073-021
Unavailable
12
WASHER PLAIN 8MM
411B0800
Unavailable
13
WASHER-PLAIN
92022-183
Unavailable
14
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
15
AIR CLEANER ASSY
11010-081
Unavailable
16
HOLDER,CONNECT
18045-002
Unavailable
17
BUSHING,RUBBER
92092-1001
Unavailable
18
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
19
AIR CLEANER ASSY
11010-081
Unavailable
20
AIR CLEANER ASSY
11010-081
Unavailable
21
SCREW PAN HEAD 4X10
220B0410
Unavailable
22
WASHER SPRING 4MM
461F0400
Unavailable
23
WASHER PLAIN 4MM
410B0400
Unavailable
24
ELEMENT,AIR,CLNR
11013-048
Unavailable
25
ELEMENT,AIR CLNR,TOP
11013-050
Unavailable
26
WASHER PLAIN 4MM
410B0400
Unavailable
27
WASHER SPRING 4MM
461F0400
Unavailable
28
NUT,WING,4MM
92015-074
Unavailable
