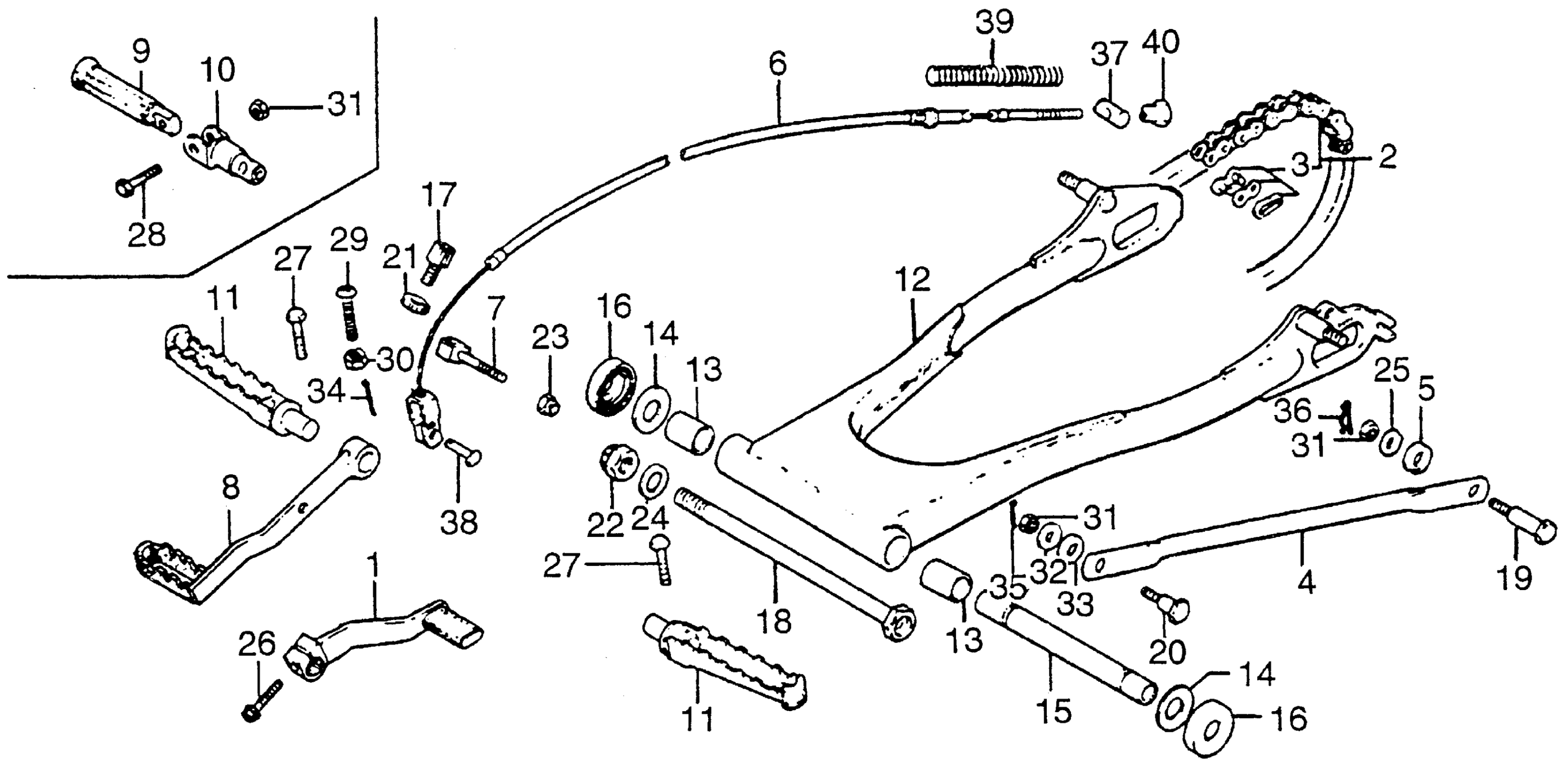

Honda MT125RA (78) MOTORCYCLE, JPN, VIN# 125R2F-1081 SWINGARM + STEP Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-325-68

Unavailable

2

CHAIN, DRIVE (415T-110L) (NOT AVAILABLE)

40530-107-00

Unavailable

3

MASTER LINK (NOT AVAILABLE)

40531-107-00

Unavailable

4

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-361-000

Unavailable

5

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

6

CABLE, RR. BRAKE (NOT AVAILABLE)

43450-325-68

Unavailable

7

HOLDER, RR. BRAKE CABLE (NOT AVAILABLE)

43488-324-70

Unavailable

8

PEDAL, BRAKE (NOT AVAILABLE)

46500-324-70

Unavailable

9

ARM, R. STEP (NOT AVAILABLE)

50610-325-68

Unavailable

10

BRACKET, STEP ARM (NOT AVAILABLE)

50616-325-68

Unavailable

11

ARM, L. STEP (NOT AVAILABLE)

50640-325-68

Unavailable

12

SWINGARM (NOT AVAILABLE)

52100-325-00

Unavailable

13

BUSH, PIVOT THRUST (NOT AVAILABLE)

52109-325-00

Unavailable

14

WASHER, SWINGARM PIVOT THRUST (NOT AVAILABLE)

52110-325-00

Unavailable

15

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-360-010

Unavailable

16

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-000.

52144-360-005

$11.80

16

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-003.

52144-360-005

$11.80

16

CAP, SWINGARM DUST SEAL (NOK)

52144-360-005

$11.80

17

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

18

BOLT, RR. SWINGARM PIVOT

90121-360-010

Unavailable

19

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

19

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

20

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

20

BOLT, RR. BRAKE STOPPER ARM

90133-028-010

Unavailable

20

BOLT, RR. BRAKE STOPPER ARM This part replaces 90133-107-000.

90133-028-010

Unavailable

21

NUT, FIXING This part replaces 90321-268-000.

90321-315-670

$7.31

21

NUT, FIXING

90321-315-670

$7.31

21

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

22

NUT, SELF-LOCK (12MM)

90353-045-000

$5.99

23

NUT, LOCK (8MM) (NOT AVAILABLE)

90353-325-00

Unavailable

24

WASHER, TENSIONER ARM (NOT AVAILABLE)

90505-708-000

Unavailable

25

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

26

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

26

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

27

BOLT, HEX. (8X25) This part replaces 92000-08026-0A.

92101-08025-0A

$1.74

27

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

27

BOLT, HEX. (8X25) This part replaces 92101-08026-0A.

92101-08025-0A

$1.74

28

BOLT, HEX. (8X25) (NOT AVAILABLE)

92200-08025-0A

Unavailable

29

SCREW, PAN (6X30) This part replaces 93500-06030.

93500-06030-0A

$1.49

29

SCREW, PAN (6X30)

93500-06030-0A

$1.49

30

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

31

NUT, HEX. (8MM)

94001-08000-0S

$1.49

32

WASHER, PLAIN (8MM)

94101-08000

$1.49

33

WASHER, SPRING (8MM)

94111-10000

$1.49

34

PIN, COTTER (1.6X12)

94201-16120

$1.49

35

PIN, COTTER (2.0X15)

94201-20150

$1.49

36

PIN, LOCK (8MM)

94251-08000

$1.49

37

JOINT A, BRAKE ARM

95015-31001

$1.53

38

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

39

SPRING A, BRAKE ROD

95014-73100

$1.49

40

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49
