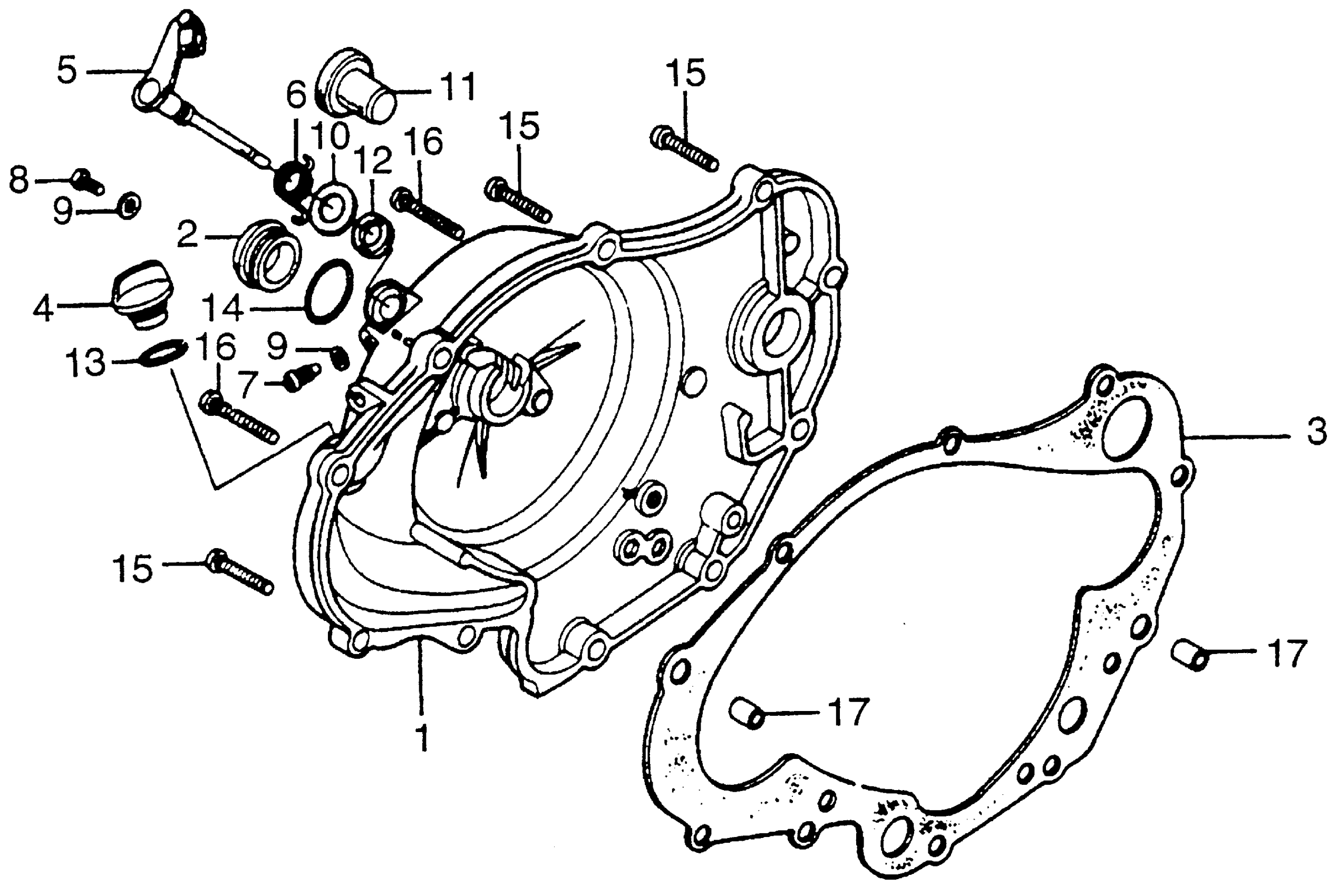

Honda MT125RA (78) MOTORCYCLE, JPN, VIN# 125R2F-1081 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-360-010

Unavailable

2

CAP, CLUTCH ADJUST (NOT AVAILABLE)

11335-360-000

Unavailable

3

GASKET, R. CRANKCASE COVER This part replaces 11394-360-000.

11394-360-306

Unavailable

3

GASKET, R. CRANKCASE COVER

11394-360-306

Unavailable

4

CAP, OIL This part replaces 15611-381-000.

25611-733-000

$6.34

5

LEVER, CLUTCH (NOT AVAILABLE)

22810-400-000

Unavailable

6

SPRING, CLUTCH LIFTER SHAFT (NOT AVAILABLE)

22816-360-000

Unavailable

7

BOLT, SPECIAL (6MM)

90035-360-000

Unavailable

8

BOLT, OIL CHECK

90037-360-000

$3.26

9

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

10

WASHER, SPECIAL (26MM) (NOT AVAILABLE)

90468-360-000

Unavailable

11

PLUG, RUBBER (17MM) (NOT AVAILABLE) This part replaces 90801-107-00.

90801-107-970

Unavailable

11

PLUG, RUBBER (17MM) (NOT AVAILABLE)

90801-107-970

Unavailable

12

OIL SEAL (13X22X5)

91204-KE8-003

$3.12

12

OIL SEAL (13X22X5) This part replaces 91208-360-003.

91204-KE8-003

$3.12

12

OIL SEAL (13X22X5) This part replaces 91208-360-010.

91204-KE8-003

$3.12

13

O-RING (16MM)

91303-800-000

$2.23

13

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.23

14

O-RING (20X2) (NOT AVAILABLE)

91302-KG4-003

Unavailable

14

O-RING (20X2) (NOT AVAILABLE) This part replaces 91305-703-000.

91302-KG4-003

Unavailable

15

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

16

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

16

SCREW, PAN (6X32)

93500-06032-0A

$1.49

17

PIN A, DOWEL (10X16)

94301-10160

$2.28
