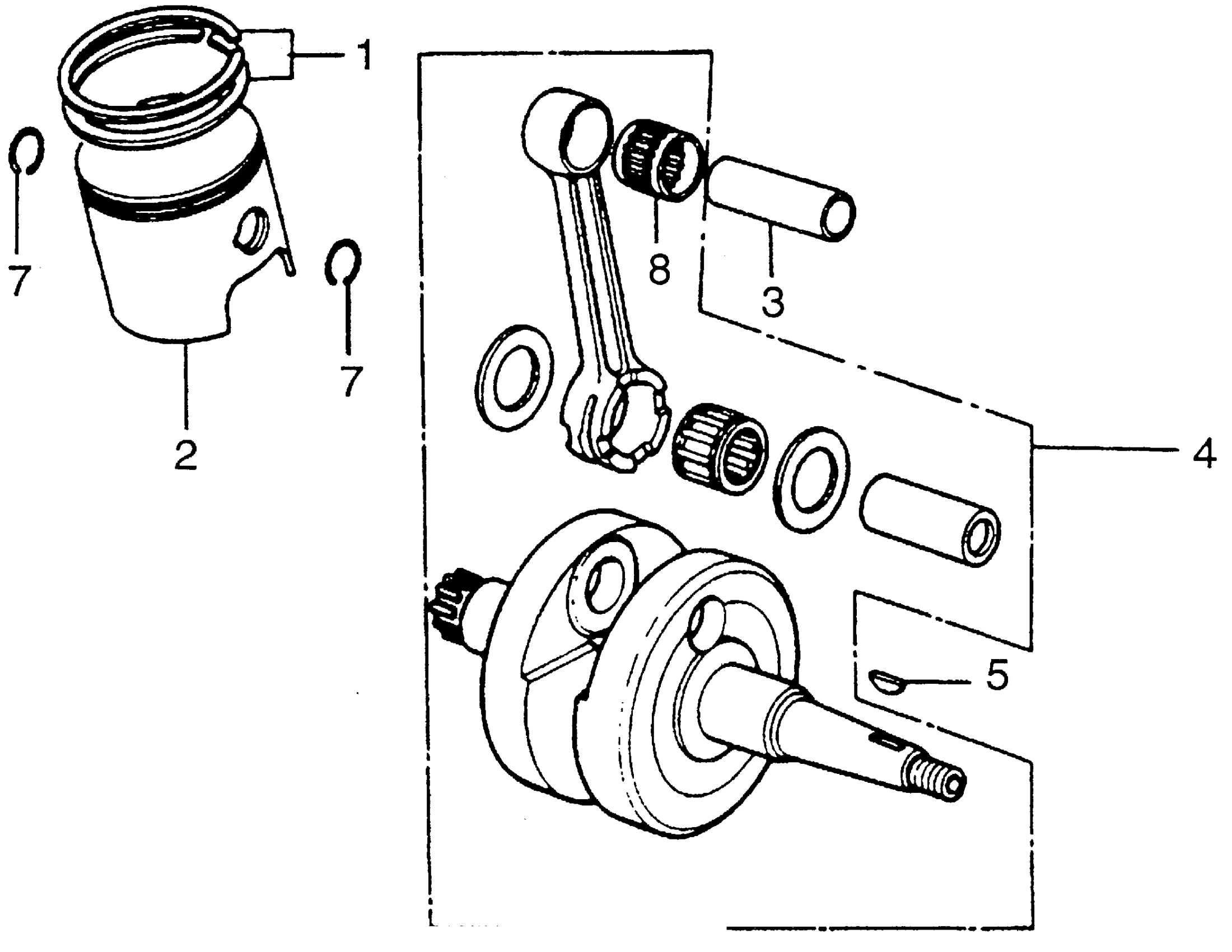

Honda MT125RA (78) MOTORCYCLE, JPN, VIN# 125R2F-1081 PISTON + CRANKSHAFT Diagram

#

Description

Price

1

RING SET, PISTON (OS 0.25) (NIPPON)

13021-400-003

$47.03

1

RING SET, PISTON (NOT AVAILABLE)

13121-325-00

Unavailable

1

RING SET, PISTON (OS 0.25) (NOT AVAILABLE)

13126-325-00

Unavailable

2

PISTON (NOT AVAILABLE)

13101-325-00

Unavailable

2

PISTON (OS 0.25) (NOT AVAILABLE)

13106-325-00

Unavailable

3

PIN, PISTON This part replaces 13111-360-000.

13111-444-000

Unavailable

3

PIN, PISTON

13111-444-000

Unavailable

4

CRANKSHAFT (NOT AVAILABLE) This part replaces 13300-400-010.

13300-361-010

Unavailable

5

KEY, WOODRUFF SPECIAL (25X1)

13331-360-000

$3.47

6

BEARING, CONNECTING ROD SMALL END (0 -0.002) (KOYO) This part replaces 91007-360-004.

91007-444-004

Unavailable

6

BEARING, CONNECTING ROD SMALL END (0 -0.002) (KOYO)

91007-444-004

Unavailable

6

BEARING, CONNECTING ROD SMALL END (-0.002/-0.004) (KOYO) This part replaces 91008-360-004.

91008-444-004

Unavailable

6

BEARING, CONNECTING ROD SMALL END (-0.002/-0.004) (KOYO)

91008-444-004

Unavailable

6

BEARING, CONNECTING ROD SMALL END (-0.004/-0.006) (KOYO) (NOT AVAILABLE) This part replaces 91009-360-004.

91009-444-004

Unavailable

6

BEARING, CONNECTING ROD SMALL END (-0.004/-0.006) (KOYO) (NOT AVAILABLE)

91009-444-004

Unavailable

7

CLIP, PISTON PIN (14MM)

94601-14000

$1.49
