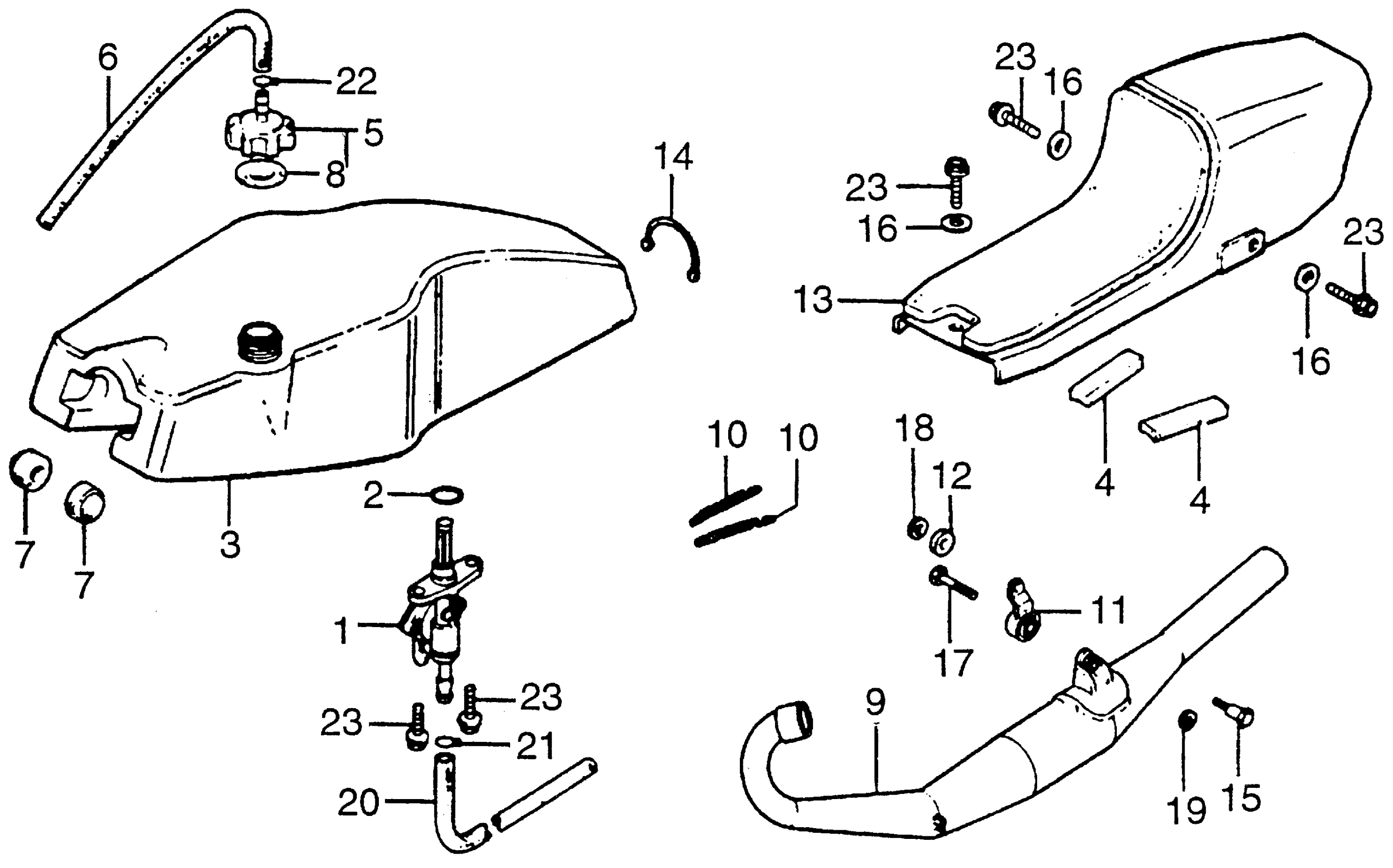

Honda MT125RA (78) MOTORCYCLE, JPN, VIN# 125R2F-1081 FUEL TANK + SEAT + MUFFLER Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-357-010

Unavailable

2

O-RING (11.8X2.4) This part replaces 16997-357-003.

91302-ZE9-003

$2.57

2

O-RING (11.8X2.4) This part replaces 91302-ZE9-000.

91302-ZE9-003

$2.57

2

O-RING (11.8X2.4)

91302-ZE9-003

$2.57

2

O-RING (11.8X2.4) This part replaces 91320-HA5-000.

91302-ZE9-003

$2.57

2

O-RING (11.8X2.4) This part replaces 91320-HA5-003.

91302-ZE9-003

$2.57

2

O-RING (11.8X2.4)

91320-MJ6-003

$2.79

3

TANK, FUEL (NOT AVAILABLE)

17500-325-68

Unavailable

4

RUBBER, FUEL TANK PAD (NOT AVAILABLE)

17505-300-970

Unavailable

5

CAP ASSY., FUEL TANK (NOT AVAILABLE) This part replaces 17510-355-000.

17510-355-010

Unavailable

5

CAP ASSY., FUEL TANK (NOT AVAILABLE)

17510-355-010

Unavailable

5

CAP ASSY., FUEL TANK (NOT AVAILABLE) This part replaces 17510-357-000.

17510-355-010

Unavailable

6

TUBE, FUEL CAP BREATHER (NOT AVAILABLE)

17520-357-000

Unavailable

7

RUBBER, FR. FUEL TANK

17611-331-000

$4.22

8

GASKET, FUEL CAP This part replaces 17624-098-010.

17624-896-750

Unavailable

8

GASKET, FUEL CAP This part replaces 17624-355-000.

17624-896-750

Unavailable

8

GASKET, FUEL CAP This part replaces 17624-355-010.

17624-896-750

Unavailable

8

GASKET, FUEL CAP

17624-896-750

Unavailable

9

MUFFLER, EX. (NOT AVAILABLE)

18300-325-50

Unavailable

10

SPRING, EX. PIPE

18332-357-010

$14.70

11

BRACKET, MUFFLER (NOT AVAILABLE)

18353-357-010

Unavailable

12

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

13

SEAT (NOT AVAILABLE)

77200-325-68

Unavailable

14

BAND, SIDE COVER This part replaces 83503-360-000.

83503-360-700

Unavailable

14

BAND, SIDE COVER

83503-360-700

Unavailable

15

BOLT, HEX. (8X17) (NOT AVAILABLE)

90138-325-00

Unavailable

16

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

16

WASHER, PLAIN (6MM)

94103-06800

$1.49

17

BOLT, HEX. (8X30) This part replaces 92000-08030-0A.

92101-08030-0A

$1.49

17

BOLT, HEX. (8X30)

92101-08030-0A

$1.49

18

WASHER, PLAIN (10MM)

94101-10000

$1.49

19

WASHER, SPRING (8MM)

94111-08000

$1.49

20

BULK HOSE, FUEL (7.5X8000) (7.5X250)

95001-75008-60M

$103.82

21

CLIP, TUBE (B12)

95002-02120

$2.00

22

CLIP, TUBE (C9)

95002-50000

$1.49

23

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

23

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
