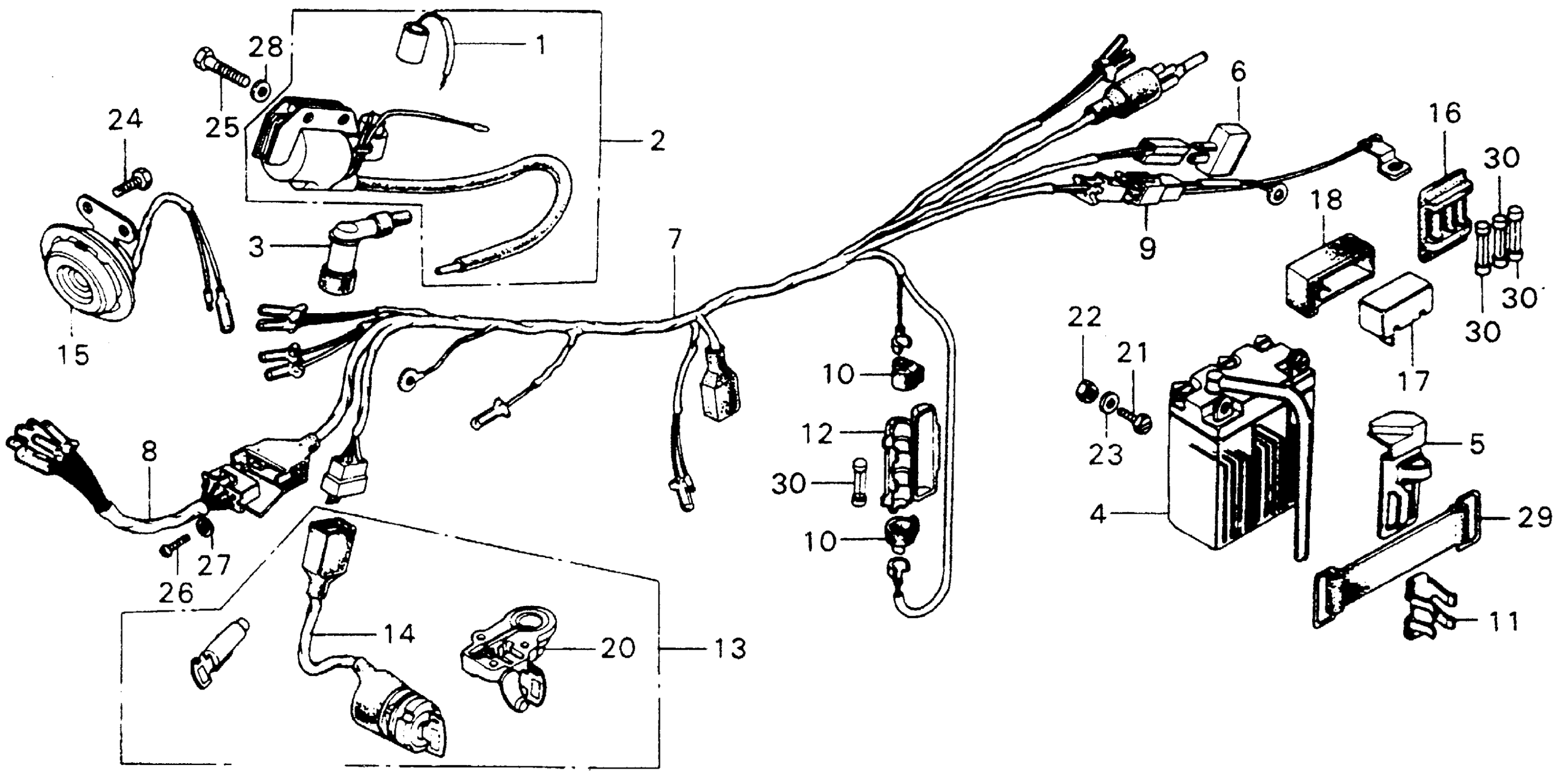

Honda MT125A MOTORCYCLE, JPN, VIN# MT125-1000001 WIRE HARNESS Diagram

#

Description
Price

1

CONDENSER ASSY.

30250-329-305

Unavailable

2

COIL, IGNITION This part replaces 30500-358-003.

30500-950-405

$118.02

2

COIL, IGNITION

30500-950-405

$118.02

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

4

BATTERY (6N6-3B) This part replaces 31500-324-601.

31500-329-677AH

Unavailable

4

BATTERY (6N6-3B) This part replaces 31500-329-677.

31500-329-677AH

Unavailable

4

BATTERY (6N6-3B) This part replaces 98202-63260.

31500-329-677AH

Unavailable

4

BATTERY (6N6-3B) This part replaces 98203-63250.

31500-329-677AH

Unavailable

4

BATTERY (6N6-3B) This part replaces 98203-63260.

31500-329-677AH

Unavailable

5

COVER, BATTERY

31532-361-000

Unavailable

6

RECTIFIER, SILICON (SHINDENGEN) This part replaces 31700-361-008.

31710-371-008

$40.03

6

RECTIFIER, SILICON (SHINDENGEN)

31710-371-008

$40.03

7

WIRE HARNESS A

32100-361-000

Unavailable

8

WIRE HARNESS B

32105-361-000

Unavailable

9

WIRE, BATTERY TERMINAL (NOT AVAILABLE)

32106-329-000

Unavailable

10

CONNECTOR, FUSE

32112-230-000

$3.64

11

HOLDER, FUSE

32113-361-000

Unavailable

12

CASE, FUSE (10A) (NOT AVAILABLE)

32120-329-000

Unavailable

13

LOCK SET (NOT AVAILABLE)

35010-361-007

Unavailable

13

LOCK SET (NOT AVAILABLE) This part replaces 35011-329-670.

35010-361-007

Unavailable

13

LOCK SET (NOT AVAILABLE) This part replaces 35011-356-305.

35010-361-007

Unavailable

14

SWITCH ASSY., COMBINATION (TOYO) (NOT AVAILABLE) This part replaces 35100-356-700.

35100-356-701

Unavailable

14

SWITCH ASSY., COMBINATION (TOYO) (NOT AVAILABLE)

35100-356-701

Unavailable

15

HORN ASSY. (NOT AVAILABLE)

38100-358-000

Unavailable

16

CASE, FUSE (NOT AVAILABLE)

38205-115-000

Unavailable

17

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

18

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-092-670

Unavailable

20

LOCK ASSY., SEAT (HONDALOCK)

77230-107-711

Unavailable

20

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-347-003.

77230-107-711

Unavailable

21

BOLT, BATTERY TERMINAL (NOT AVAILABLE)

90122-107-000

Unavailable

22

NUT, BATTERY TERMINAL

90306-107-000

Unavailable

23

WASHER, BATTERY TERMINAL

90501-107-000

$1.20

24

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

25

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

25

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

26

SCREW, TAPPING (4X8) (NOT AVAILABLE)

93901-24110

Unavailable

27

WASHER, PLAIN (4MM)

94101-04000

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

BAND B2, BATTERY This part replaces 95012-13000.

95012-13001

$5.28

29

BAND B2, BATTERY

95012-13001

$5.28

30

FUSE A (10A)

98200-11000

$1.80
