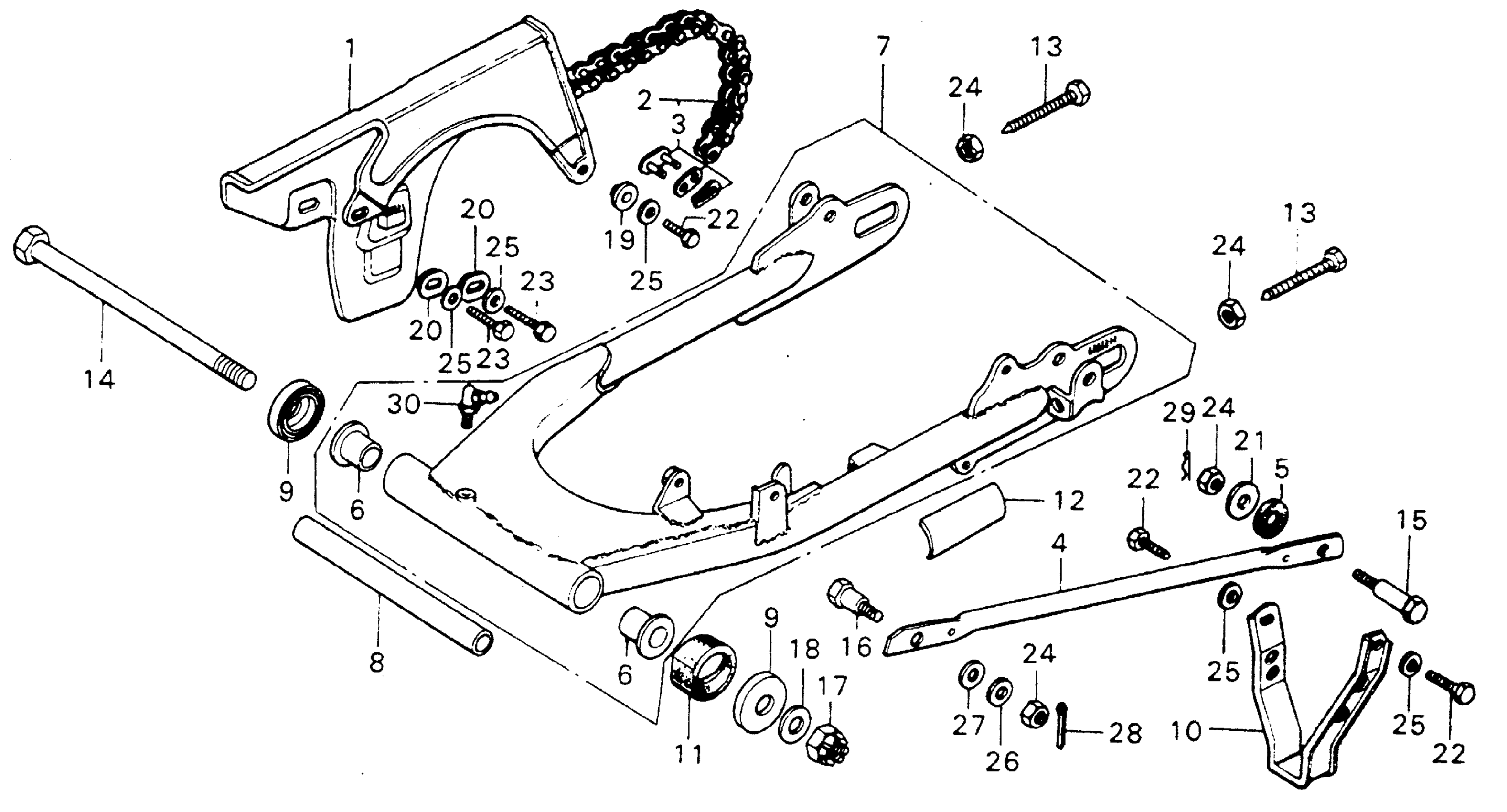

Honda MT125A MOTORCYCLE, JPN, VIN# MT125-1000001 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE)

40510-361-000B

Unavailable

2

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 405W3-427-505.

40530-KC2-961

$52.38

2

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-355-013.

40530-KC2-961

$52.38

2

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-361-003.

40530-KC2-961

$52.38

2

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-365-671.

40530-KC2-961

$52.38

2

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-365-673.

40530-KC2-961

$52.38

2

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-402-731.

40530-KC2-961

$52.38

2

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-437-603.

40530-KC2-961

$52.38

3

MASTER LINK (DAIDO) This part replaces 40531-355-003.

40531-355-013

$3.86

3

MASTER LINK (DAIDO)

40531-355-013

$3.86

4

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-361-000

Unavailable

5

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.75

6

BUSH, PIVOT THRUST This part replaces 52109-360-300.

52109-360-310

$36.90

6

BUSH, PIVOT THRUST

52109-360-310

$36.90

7

SWINGARM, RR. *NH1* (BLACK)

52110-361-770B

Unavailable

8

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-360-010

Unavailable

9

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-000.

52144-360-005

$10.59

9

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-003.

52144-360-005

$10.59

9

CAP, SWINGARM DUST SEAL (NOK)

52144-360-005

$10.59

10

GUIDE, CHAIN *NH1* (BLACK) (NOT AVAILABLE)

52156-361-000B

Unavailable

11

SLIDER, CHAIN (NOT AVAILABLE)

52170-360-000

Unavailable

13

BOLT, CHAIN ADJUSTING

90119-300-000

$8.51

14

BOLT, RR. SWINGARM PIVOT

90121-360-010

Unavailable

15

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$7.99

15

BOLT, RR. BRAKE STOPPER

90127-400-000

$7.99

16

BOLT, RR. BRAKE STOPPER ARM

90133-028-010

Unavailable

16

BOLT, RR. BRAKE STOPPER ARM This part replaces 90133-107-000.

90133-028-010

Unavailable

17

NUT, SELF-LOCK (12MM)

90353-045-000

$5.58

18

WASHER, TENSIONER ARM (NOT AVAILABLE)

90505-708-000

Unavailable

19

WASHER (6X20)

90512-300-000

$2.87

20

WASHER (6X9)

90513-323-000

$1.67

21

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.26

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.29

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.29

22

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

23

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.33

23

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.33

23

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.33

23

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.33

23

BOLT, HEX. (6X16)

92101-06016-0A

$1.33

23

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.33

24

NUT, HEX. (8MM)

94001-08000-0S

$1.19

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

25

WASHER, PLAIN (6MM)

94101-06800

Unavailable

26

WASHER, PLAIN (8MM)

94101-08000

$0.75

27

WASHER, SPRING (8MM)

94111-10000

$1.22

28

PIN, COTTER (2.0X15)

94201-20150

$0.94

29

PIN, LOCK (8MM)

94251-08000

$1.12

30

FITTING, GREASE (B.76S)

96201-80000

$2.33
