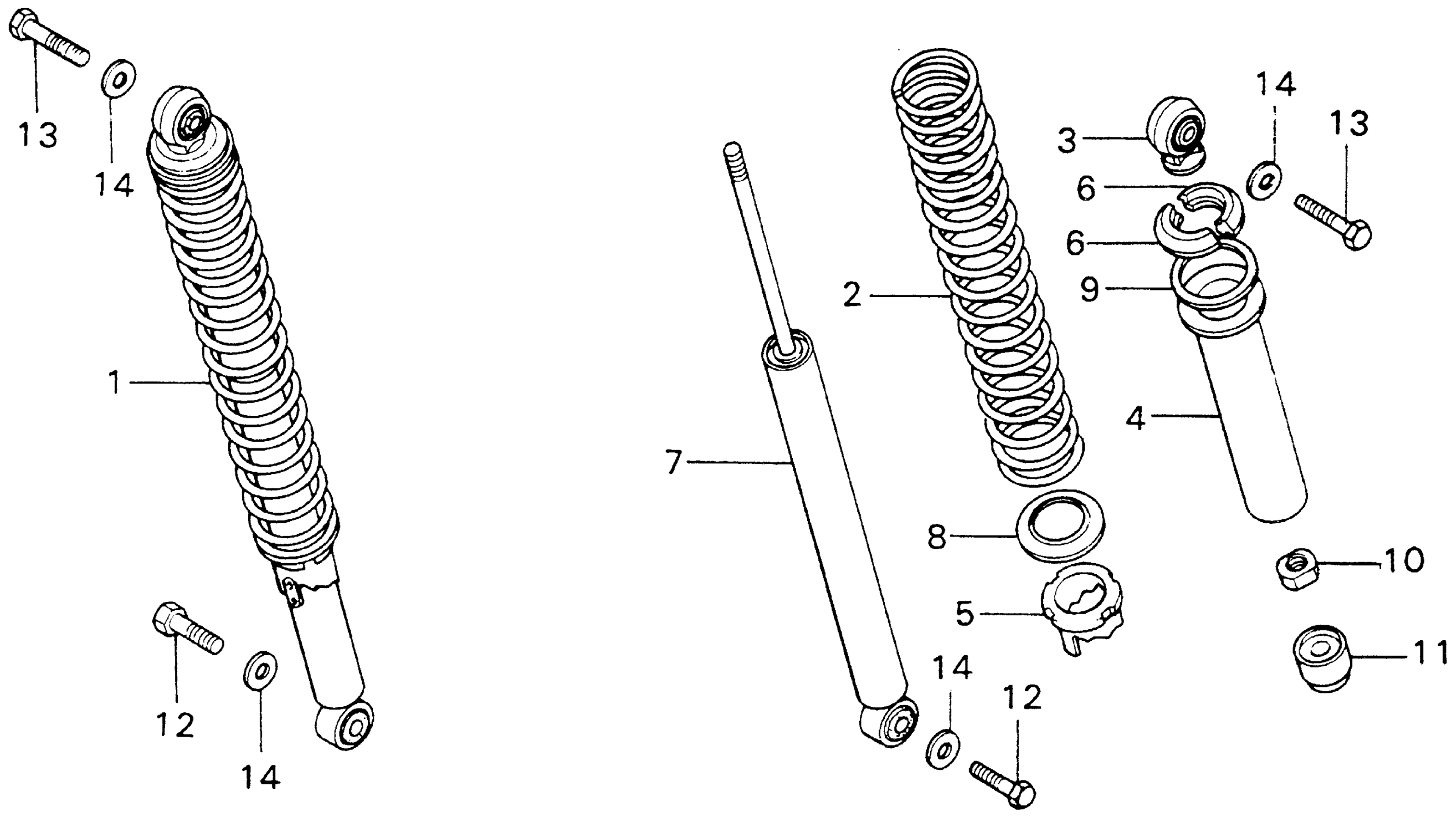

Honda MT125A MOTORCYCLE, JPN, VIN# MT125-1000001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-361-000

Unavailable

2

SPRING A, RR. SHOCK ABSORBER

52401-361-000

Unavailable

3

JOINT (UPPER)

52403-361-305

Unavailable

4

GUIDE, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52406-361-000

Unavailable

5

ADJUSTER, RR. SHOCK ABSORBER SPRING

52422-455-000

Unavailable

6

STOPPER, SPRING SEAT (SHOWA)

52424-331-003

$8.10

7

DAMPER, RR. (NOT AVAILABLE)

52430-361-000

Unavailable

8

SEAT, RR. SHOCK ABSORBER SPRING

52458-331-003

Unavailable

9

SEAT, RR. SHOCK ABSORBER SPRING (UPPER) (SHOWA) (NOT AVAILABLE)

52459-074-003

Unavailable

10

NUT, LOCK (9MM) (NOT AVAILABLE)

52482-331-003

Unavailable

11

RUBBER, STOPPER

52517-331-003

Unavailable

12

BOLT, HEX. (10X32) This part replaces 93000-10032-0A.

93101-10032-0A

Unavailable

12

BOLT, HEX. (10X32) This part replaces 93100-10032-0A.

93101-10032-0A

Unavailable

13

BOLT, HEX. (10X40) (SOURCE: VINTAGE PARTS INC.) This part replaces 93000-10040-0A.

93101-10040-0A

Unavailable

13

BOLT, HEX. (10X40) (SOURCE: VINTAGE PARTS INC.) This part replaces 93100-10040-0A.

93101-10040-0A

Unavailable

13

BOLT, HEX. (10X40) (SOURCE: VINTAGE PARTS INC.)

93101-10040-0A

Unavailable

14

WASHER, PLAIN (10MM)

94101-10000

Unavailable
